AURORA Y3L/Y3L-AI

AI Label Scale

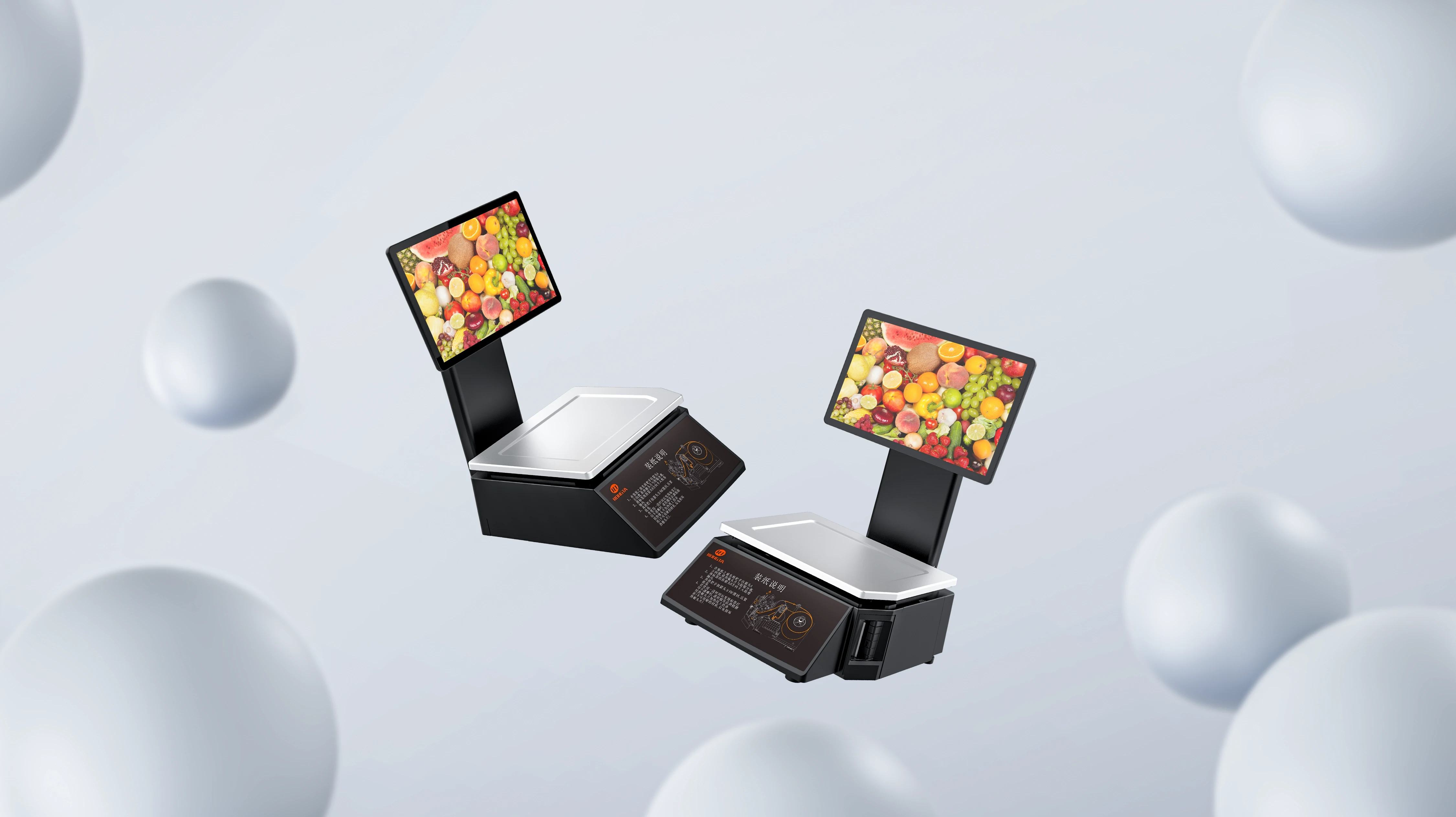

Aurora Y3L PC Based Scale

Retail scale with price computing function and label printing:

1. New self-service scale with advanced technology

2. High resolution touch screen with AI camera recognition

3. Automatically detects the products put on the scales instantly and with great accuracy

4. Multi-point capacitive touch

5. Improve efficiency, save time and staff cost

Technical Specifications

	PC Hardware
CPU	RK3288 quad-core 1.8GHz
Storage	Memory: 2GB DDR3
Storage	Hard disk: 16GB iNAND
Operating system	Android 7.1.2
Network	Wired: TCP/IP Ethernet (10M/100M/1000M)
Network	Wireless: 802.11 ac/b/g/n
External Interface	Ethernet: 1*RJ45
	USB: 2*USB 2.0
	Voltage: 110V-240V
	Scales Hardware
Weighing Range	Max Capacity: 15kg/30kg
	Verification Scale Interval: 2/5g (6/ 15kg); 5g/10g (15/ 30kg)
	Min Capacity: 40g
Capacity	Safe Capacity: 120% Normal weighing range
Capacity	Rated Capacity: Normal weighing range
Accuracy	Accuracy Class: III
	Printer Hardware
Printing Method	Direct Thermal Printing
Printing Width	56mm
Resolution	203DPI
Printing Speed	90 mm/s（Max）
Compartment Capacity	100mm
Barcode	UCP-A, EAN(JAN)13, EAN(JAN)8, CODE39,CODEBAR, CODE128
Display	15.6' 19201080/ +10.1' 1024600
	Packing
Accessories	Power cord; Adapter; Quick Installation Guide; Paper roll
Package	Brown Carton; Carton dimension: 737520780mm
	Environment
Temperature	Storage: -10℃—60℃ Working: 0℃—40℃
Humidity	Storage: 10%—90% Working: 5%—85%
