Maintenance Methods for Printer Printheads

The printhead of a label printer is the most fragile and vulnerable component among printer parts. The label printer printhead seems to be a consumable item, much like a car, which will eventually wear out. However, with regular and careful maintenance, the lifespan of the printhead can be extended. So, how should this issue be addressed?

• Preventive Maintenance for Label Printer Printheads

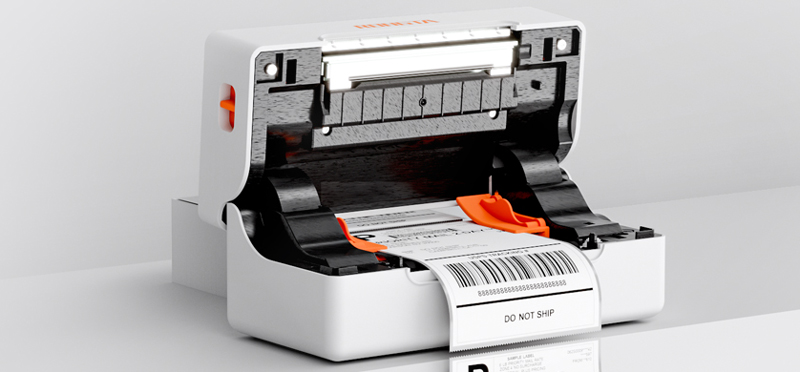

For optimal performance, clean the printhead after every roll of ribbon or thermal paper. When cleaning the printhead, be sure to remove rings to avoid scratching the printhead, and use a grounded metal strap or anti-static mat to prevent electrostatic damage to the printhead. Use a cotton swab soaked in 70% alcohol. First, turn off the printer power and open the printhead. Use a small amount of cotton cloth to brush the mechanical parts of the printer, or gently blow away floating dust (e.g., on the roller, paper/ribbon sensors, and the printhead). Do not use any hard metal or abrasive tools (such as screwdrivers) to scrape off contaminants on the printhead. Press the alcohol-soaked cotton swab against the printhead and wipe from end to end, then rotate the roller and wipe as it turns. Discard the cotton swab once it becomes dirty.

• Factors Causing Premature Damage to Label Printer Printheads

Abrasion: The long-term movement of labels and ribbons across the printhead will wear away the ceramic coating's protective layer, exposing the printhead pins (dots) and eventually causing damage. To avoid abrasion, clean the printhead frequently and use high-quality, smooth thermal transfer ribbons with a backing film to reduce friction.

(1) Minimize printhead pressure and print temperature as much as possible.

(2) Ensure that the ribbon width is wider than the label to prevent the printhead from being exposed and scratched by the label.

Dirt Caused by Ribbon Backing: When the printhead becomes contaminated by thermal paper and thermal transfer ribbon, it will require higher settings for temperature, pressure, and speed. Contaminants accumulate on the printhead pins, causing heat transfer obstacles that affect print image quality. The increasing buildup gradually degrades print quality, making it appear dull or damaging the print pins.

(3) To avoid dirt caused by ribbon backing, use a thermal transfer ribbon that already has a backing layer protection. The ribbon should be of the non-adhesive type, with static-dissipating and additional lubricating properties.

(4) Perform regular maintenance on the label printer printhead. Using a protective printhead film can quickly and easily remove accumulated debris from the printhead.
