RP215A

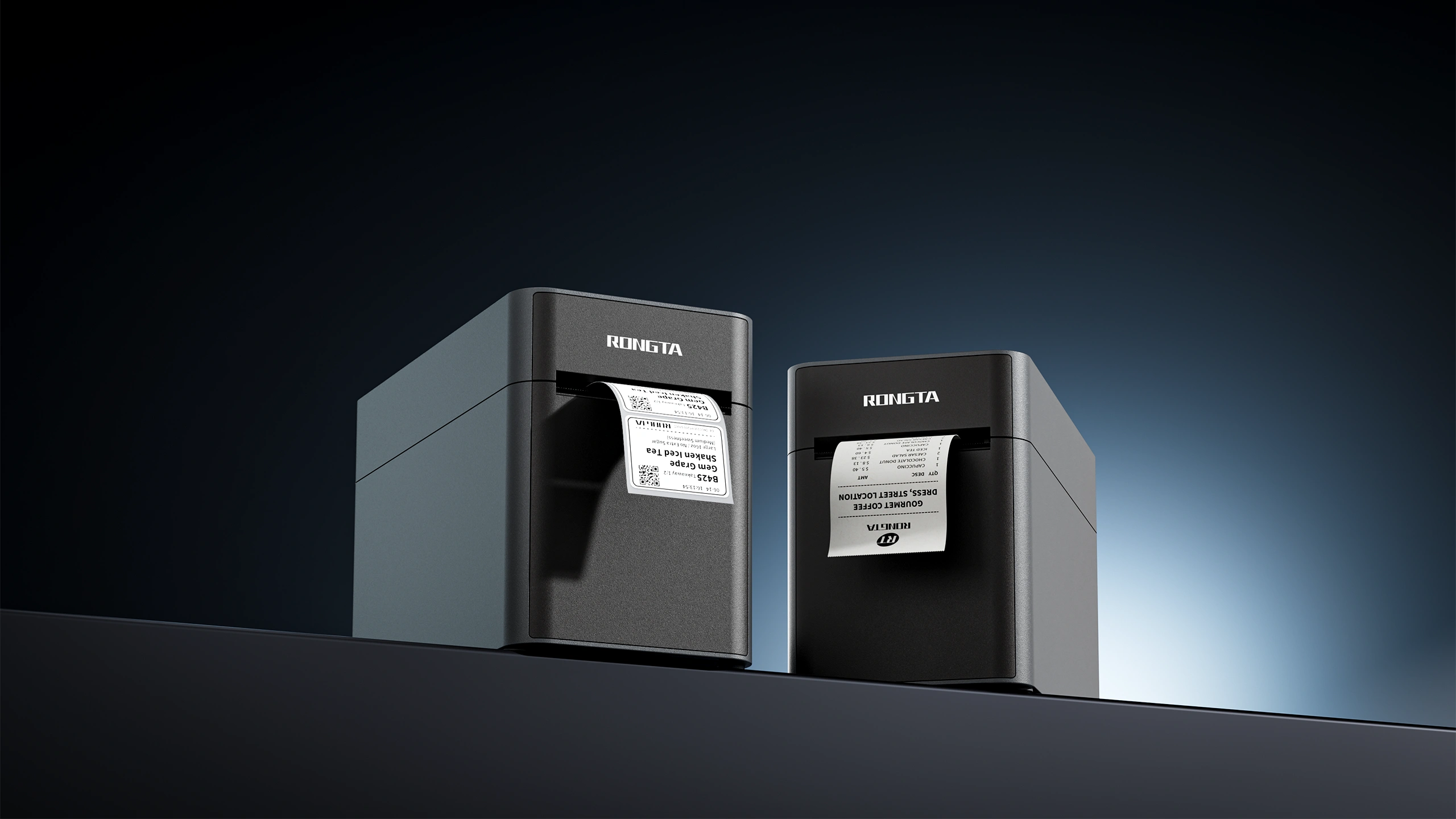

2'' Thermal Label Printer

RP215A Commercial Label Printer Features:

1. Suitable for scenarios such as beverage label printing and supermarket receipt printing.

Supports 2-inch beverage label printing, supermarket retail label printing, label/receipt dual mode, clear printing, stable performance.

2. Supports automatic paper detection, intelligent retraction, and out-of-paper reprint.

Effectively reduces paper waste and improves work efficiency.

3. Optional Bluetooth, fast printing speed, capable of handling high-volume print jobs.

Bluetooth supports multiple connections, can connect 1 iOS device + 7 Android devices simultaneously. PC can quickly install driver via Bluetooth port. Printing speed: 127mm/s for fast printing.

4. Simple and elegant design, easy-to-use buttons, clear indicator lights.

Buttons and indicator lights are located on the top of the machine for easy viewing and operation. Smooth exterior for easy cleaning.

Technical Specifications

Product Specifications		Product Specifications
Item		Parameter
Print	Printing Method	Thermal
	Resolution	203dpi
	Max. Print Width	2.2" (56mm)
	Max. Print Speed	5 ips (127mm/s)
	Print Length	0.79" - 15.75" (20 - 400mm)
Sensor		Gap detection, black mark detection, paper out detection, retraction detection, cover open detection, print head temperature detection
Media	Type	Label paper, black mark paper (bottom black mark), continuous paper, folded paper, wristband labels
	Width (Label + Liner)	0.79''-2.56''(20-65mm)(MAX)
	Thickness (Label + Liner)	0.0023''-0.0071''(0.06mm~0.18mm)
	Max. Roll Outer Diameter	φ3.94''(φ100mm)
	Core Size	φ1''(φ25mm)、φ1.5''(φ38.1mm)
Paper Tear-off Method		Manual tear-off
Processor		32bit ARM MCU
Storage	RAM	2MB
Storage	FLASH	4MB
Functions	Buttons	Power switch, Pause button, FEED button, paper compartment cover opening button
	Indicator Light	Yes
	Buzzer	Buzzer tone
	Display	/
	Others	First label retraction, out-of-paper reprint
Communication Interface		USB, optional Bluetooth
Programming Language		TSPL+ESC
Built-in Fonts		ASCll Font：10x12、14x20、16x24、24x32、36x48、14x19、21x27、14x25、12x24
Built-in Fonts		GB18030：16x16、24x24
Code Page	Extended Character Set	CP437、CP850、CP852、CP860、CP863、CP865、CP866、 WPC1250、WPC1251、WPC1252、WPC1253、WPC1254
Barcodes	1D Barcodes	Code39、Code39C、Code93、ITF25、EAN128、Code128、Codabar、EAN-8、EAN8+2、EAN8+5、EAN-13、EAN13+2、EAN13+5、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPCE+5MSIC、ITF14、EAN14、Code11
Barcodes	2D Barcodes	QRCODE、PD417、DateMatrix
Software	Driver	XP, Win7, Win8, Win10, Win11
	SDK	Android, iOS, Windows
	Label Design	Barcode label editing software (PC), APP
Power Adapter		Input:AC 100-240V, 50/60Hz
Power Adapter		Output:DC 24V/2A
Environmental Parameters	Operating	Temperature: 32-104℉ (0-40℃); Humidity: 20-90% (non-condensing)
Environmental Parameters	Storage	Temperature: 14-140℉ (-10-60℃); Humidity: 5-95% (non-condensing)
Physical Parameters	Dimensions (L × W × H)	104mm × 210mm × 143mm
Physical Parameters	Weight	1.5kg
Accessories	Standard	USB cable, power adapter, quick start guide
