RP337S

80mm Kitchen Printer

The Best Choice for Kitchen Printing

01
02-1

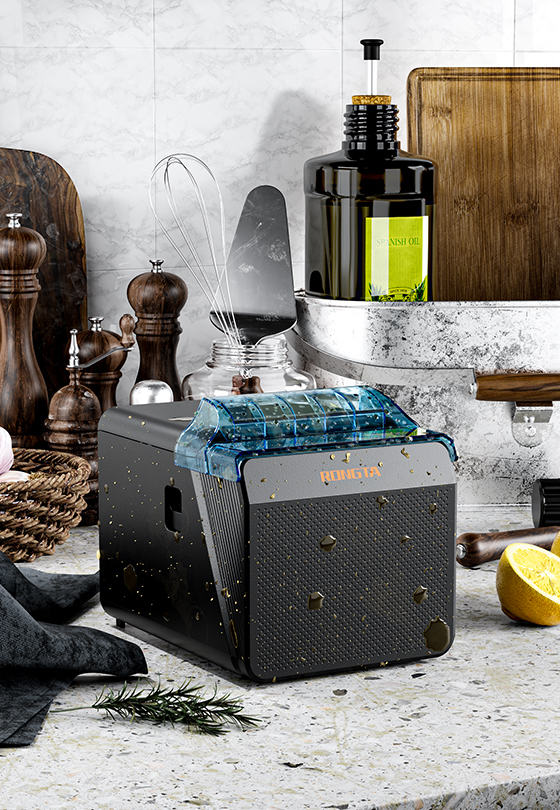

Oil-resistant design

Specially tailored for kitchens

250mm/s High-Speed ​​Printing

High-speed printing reduces waiting time and improves efficiency.


Dual-color printing

Supports dual-color printing, highlights key content, and clear information.

9
10
11
12

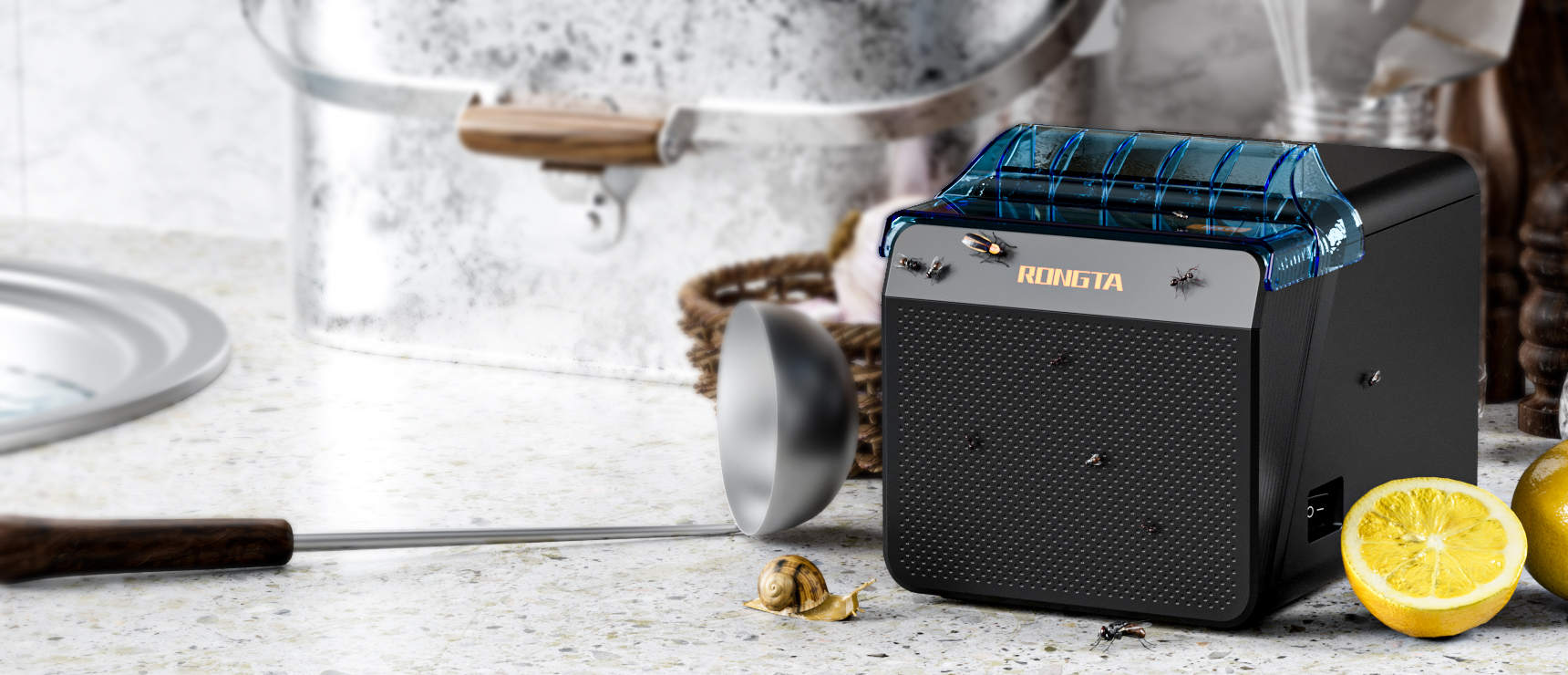

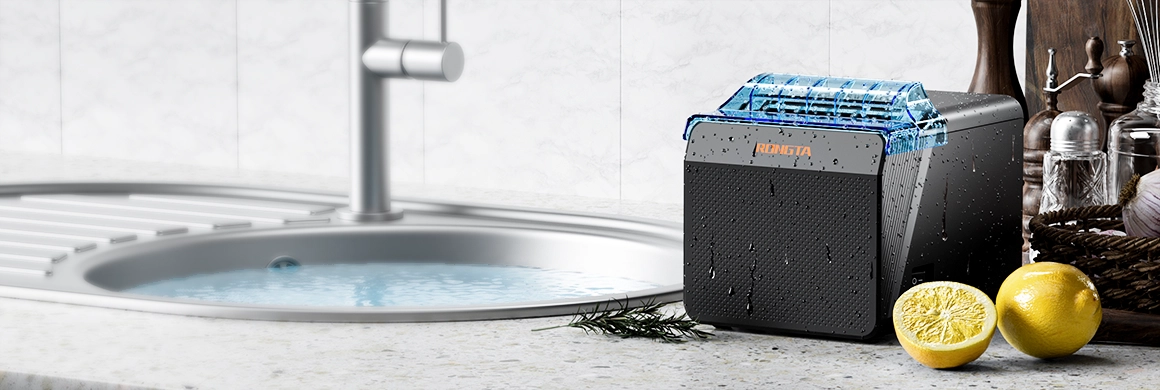

Triple-proof design for Kitchen environments

Specifically designed for kitchen environments, it features a triple-proof design that is waterproof, insect-proof, and oil fume-proof, ensuring stable operation even in humid, dusty, or heavily oiled environments.

Equipped with a paper detection function

It promptly retrieves orders, further reducing the hassle of missed orders and improving customer satisfaction.

Built-in volume ≥90db to avoid missing orders

Designed specifically for noisy kitchen environments, it features built-in order volume and arrival reminders to improve work efficiency.


Supports multiple interfaces and is compatible with various terminals.

Technical Specifications

Print Printing method Direct thermal
Print Mode Supports normal printing mode and two-color printing mode
Print width 72mm or 48mm (compatible with 58 paper)
Resolution 203dpi
Print speed Normal printing mode: 200mm/s MAX
Dual-color printing mode: 100mm/s MAX
Print life 50 km
Cutter life 1.5 million times
Paper specifications Supported paper types Ordinary thermal paper and two-color thermal continuous paper
Paper width 80mm (compatible with 58 paper)
Paper Depot Width 79.5±0.5mm
Paper roll outer diameter 82mm
Paper tearing method Φ80mm
Button Power button Rocker switch

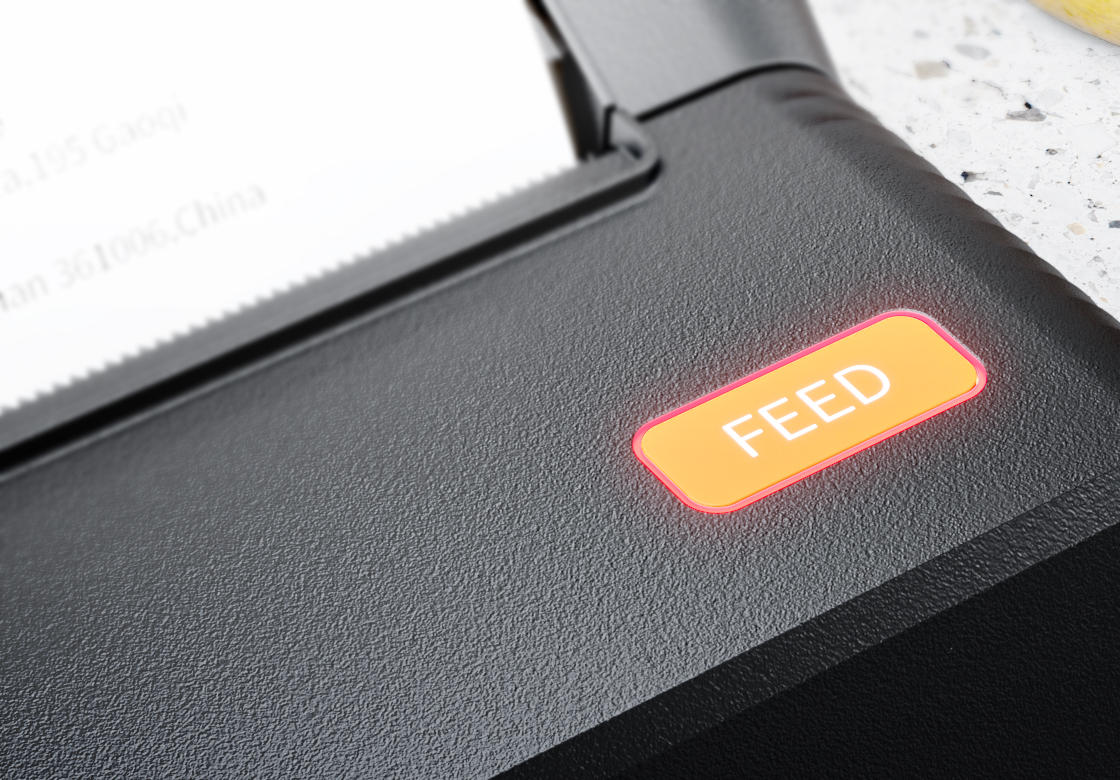

FEED key Button paper feed
Open cover key Side pressure to open the cover
Detection Opening detection support
Paper Detection support
Paper removal detection support

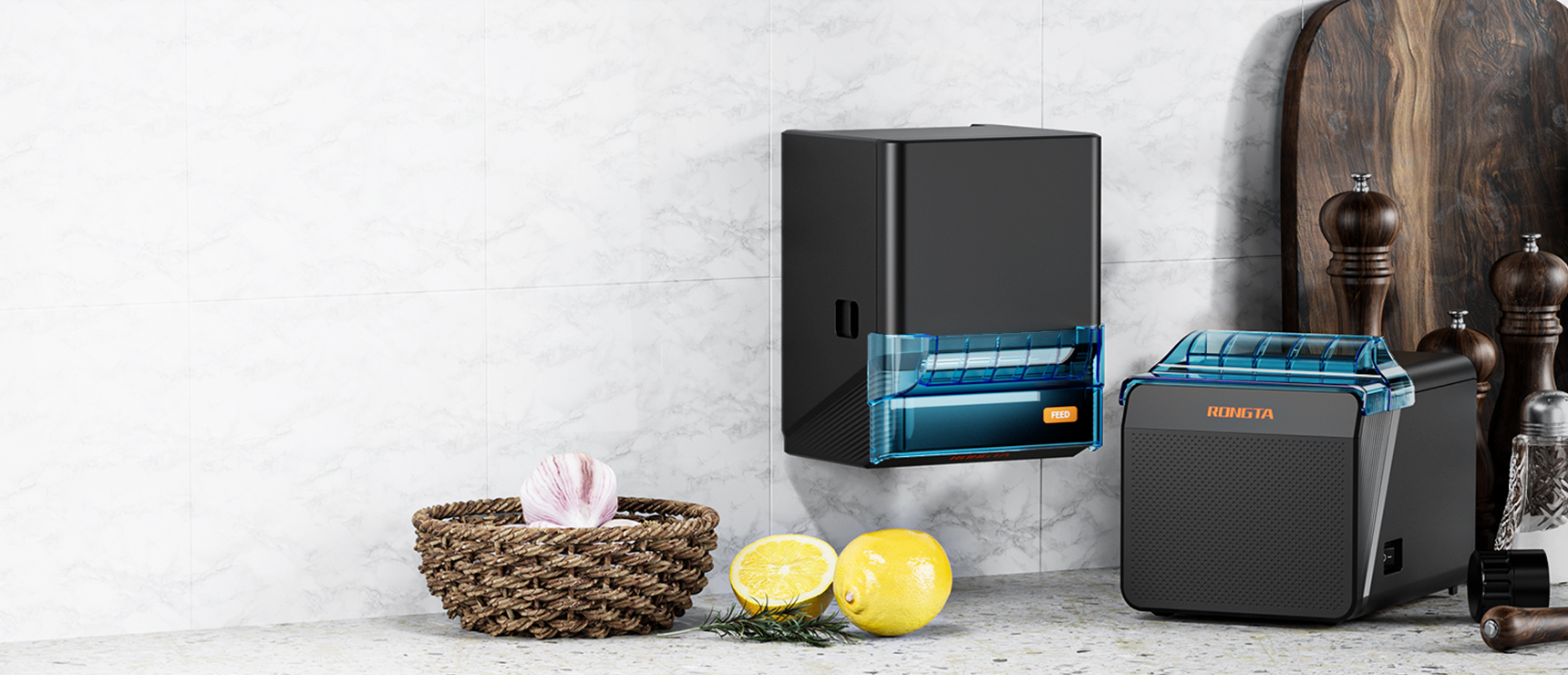

Wall Mount Wall mounting function support
Indicator lights Power indicator light (blue) Steady blue: The power supply is normal and the printer is normal.
Status indicator (red) Red light flashes: The printer is in abnormal state
Sound and light prompts Ring light flashing
Power supply adapter Desktop 24V 2.5A
Printer Commands instruction ESC/POS
System Support Print Driver XP/Win7/Win8/Win10/Wind11/Linux CUPS/MacOS/OPOS
Two-color matching software Two-color editing tool LabelDesigner editing software
Print SDK Android, IOS, Windows
Barcode One-dimensional code UPC-A/UPC-E/JAN8(EAN8)/JAN13(EAN13)/CODE 39/CODE93/CODE128/ITF/CODABAR
QR code PDF417, QR code
Communication interface Ethernet+Serial + USB (Type-B)
Main control board RAM 8MB
FLASH 8MB
Language Fonts 4M,GB18030
Chinese Simplified Chinese, 24x24dots
codepage 48
ASCII/English FontA 12x24, FontB 9x17
Other languages Traditional Chinese, Korean, Japanese, English, etc. can be customized and expanded
Function Paper saving function Supports header margin adjustment, line spacing, receipt width, and barcode height adjustment
Beep reminder support
Size  180×140×134.6mm(L×W×H)
Environment Work environment Working temperature: 0℃~45℃ Working humidity (no condensation): 10%~90%Rh
Storage environment  Storage temperature: -20℃~60℃ Storage humidity: 10%~90%
Kitchen version Conformal coating yes
Sound and light alarm support
IP Rating IP42 waterproof and dustproof design
