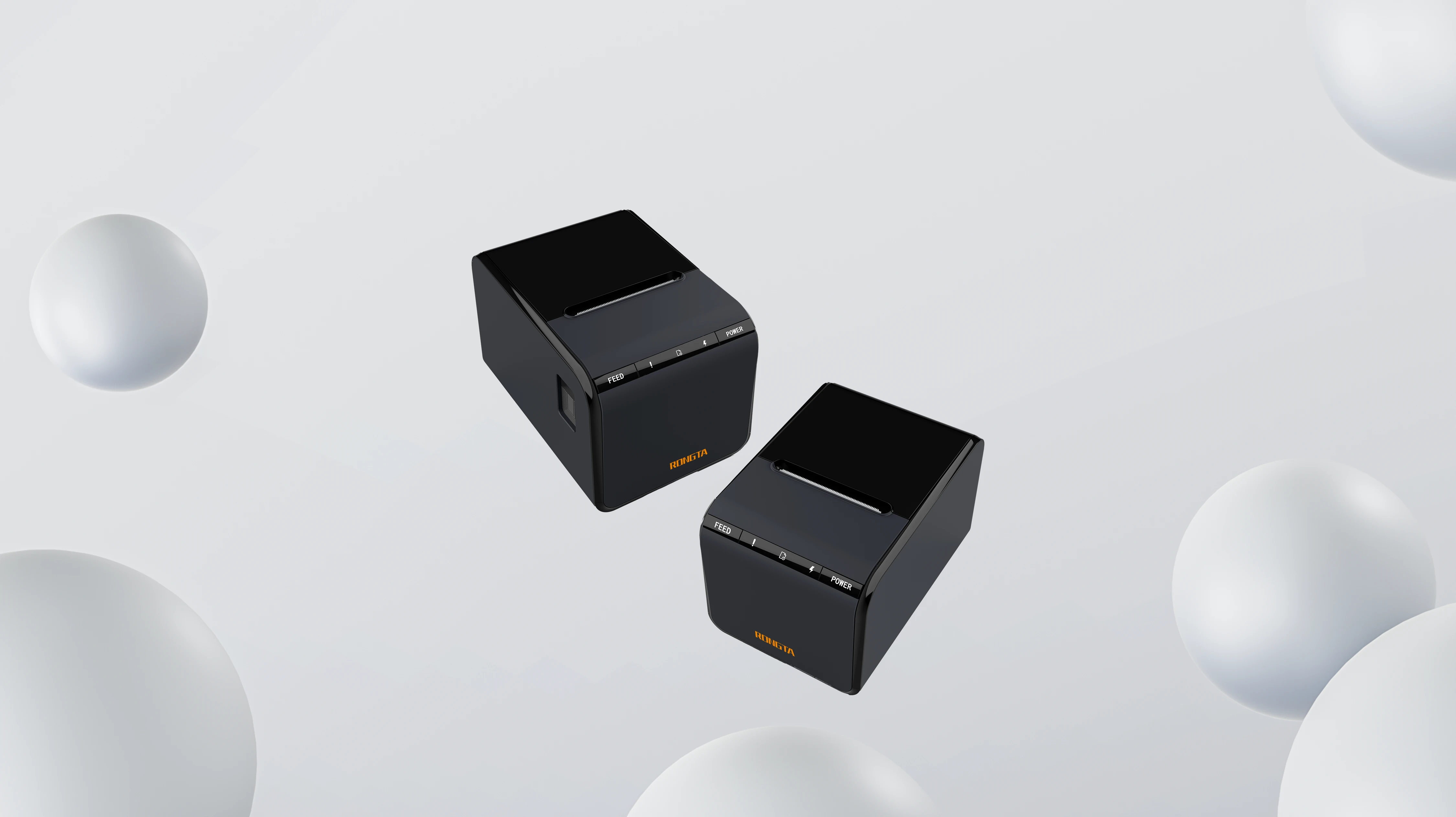

ACE G1Y

58mm Thermal Receipt Printer

High Speed Bluetooth Android Thermal Receipt Printer

1. Fashionable and exquisite appearance, simple operation
2. Support paper saving adjustment function
3. Easy paper loading structure
4. Automatic cutter can be equipped
5. Voice alarm function can be equipped
6. NFC function can be equipped

Technical Specifications

Printing Method	Driect Thermal
Print Width	48mm
Print Speed	120mm/s (Max)
Resolution	203dpi
Operating Temperature	0～45°C
Operating Humidity	10%～90% no condensation
Storage Temperature	-20°C～60°C
Storage Humidity	10%～90% (except paper rolls)
Software	Print command: ESC/POS
	Driver support: Windows/Linux Cups/MacOs/JavaPos/OPOS
	SDK support: Windows/Android/IOS
Interface	USB+Ethernet/USB+Serial/USB (support Bluetooth, WiFi optional customization)
Paper specifications	Paper type: Thermal continuous paper
	Paper width: 57.5±0.5mm
	Paper thickness: 0.06～0.08mm
	Paper roll outer diameter: φ65mm (Max)
Product Specifications	Dimensions: 168×120×113mm (L×W×H)
Weight	1.176KG
Power	Input power: DC 9V 3A
Cash Drawer Control	Cash drawer control: DC 9V 1A
Print Head Life	50KM
Automatic Paper Cutter Life	1 million paper cuts
