RP425

4'' Thermal Shipping Label Printer

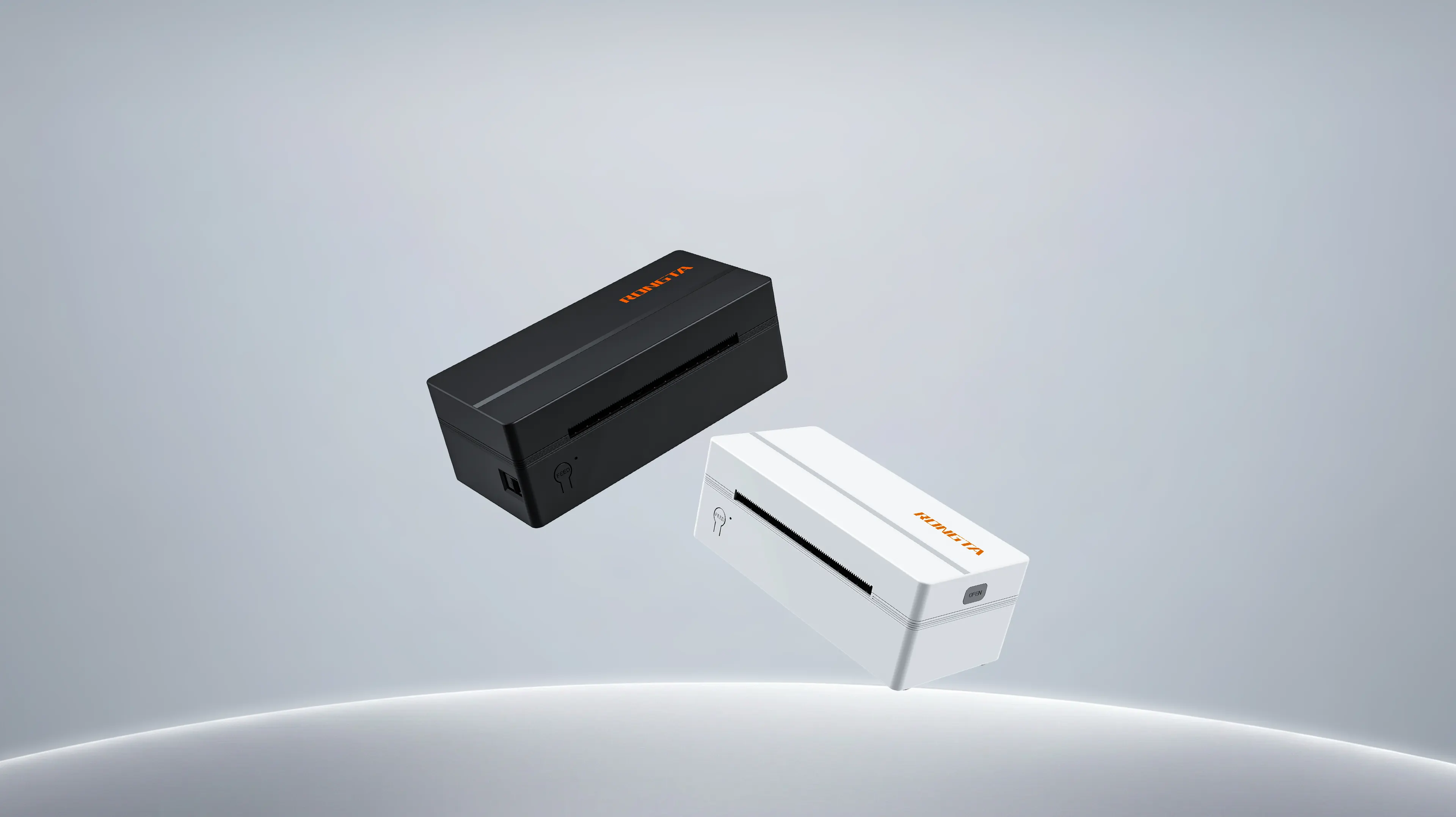

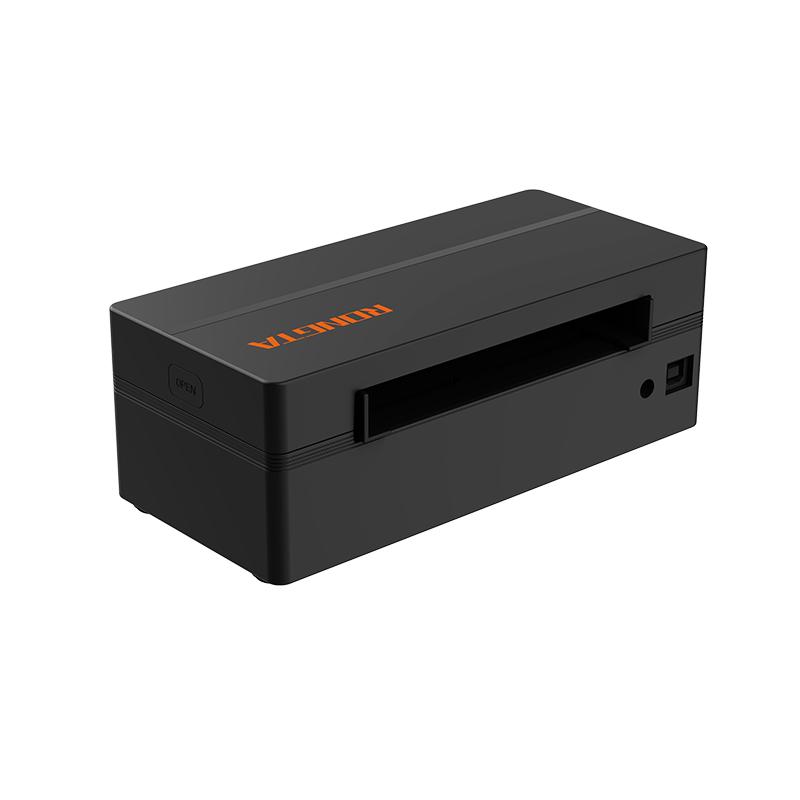

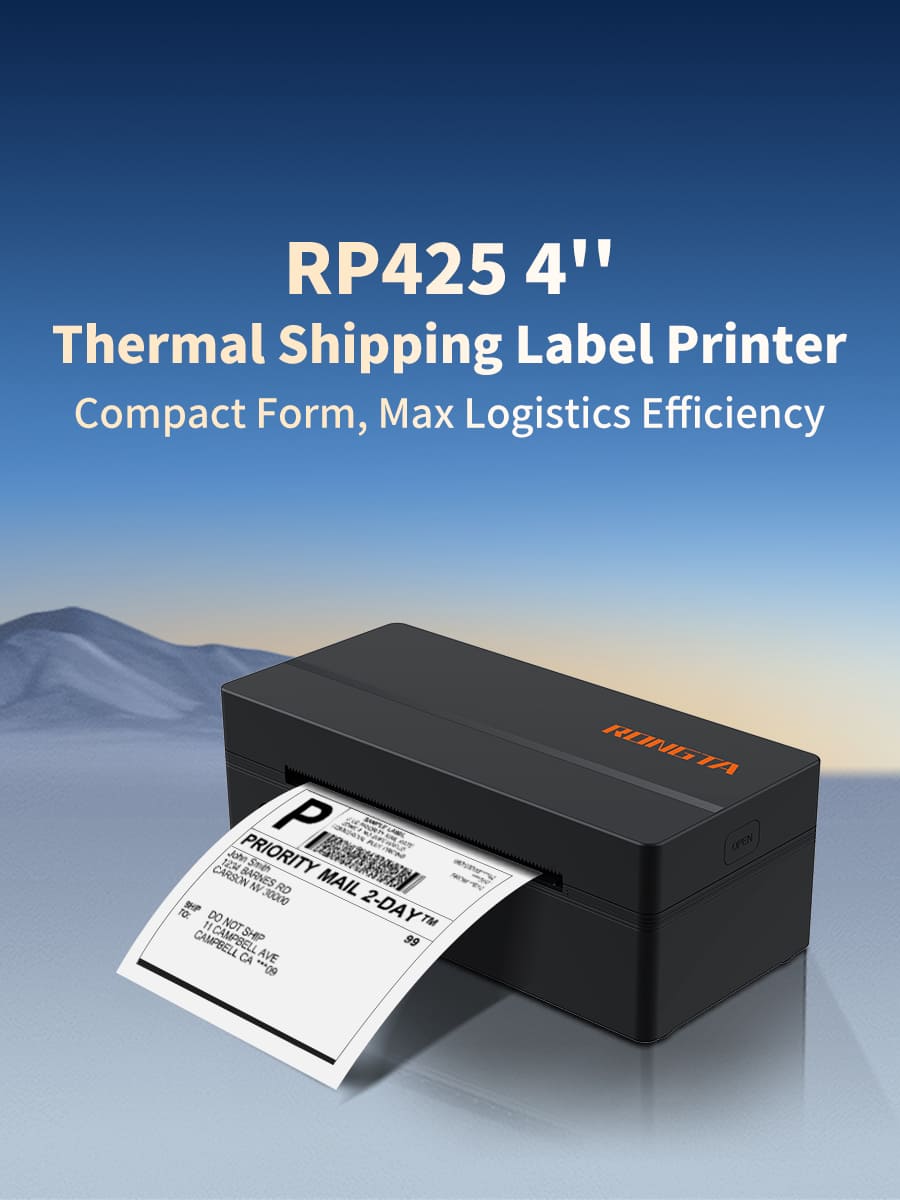

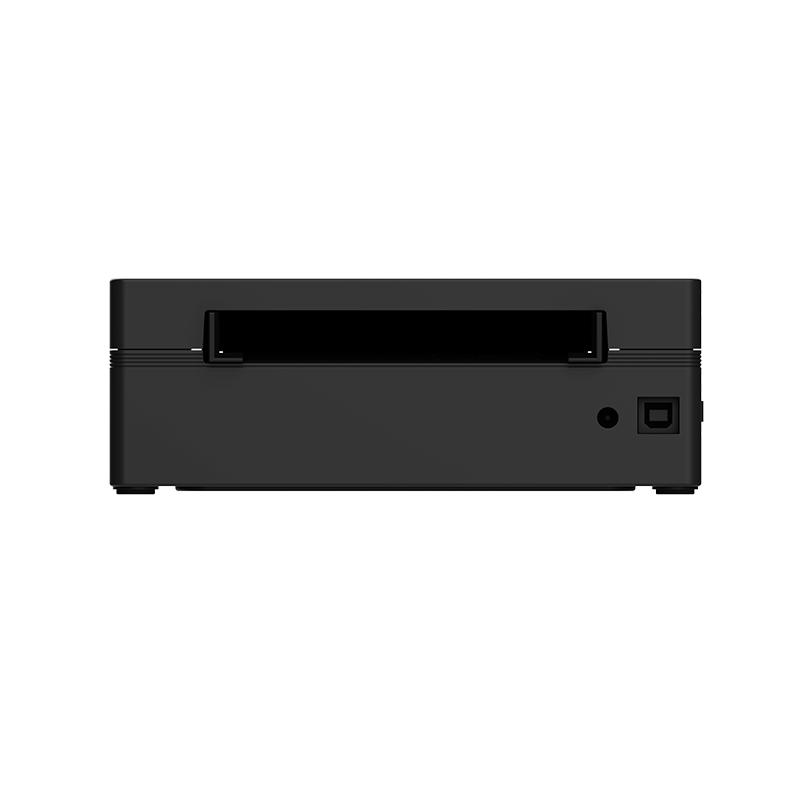

RP425 4'' Thermal Shipping Label Printer

1.Small size, high cost performance

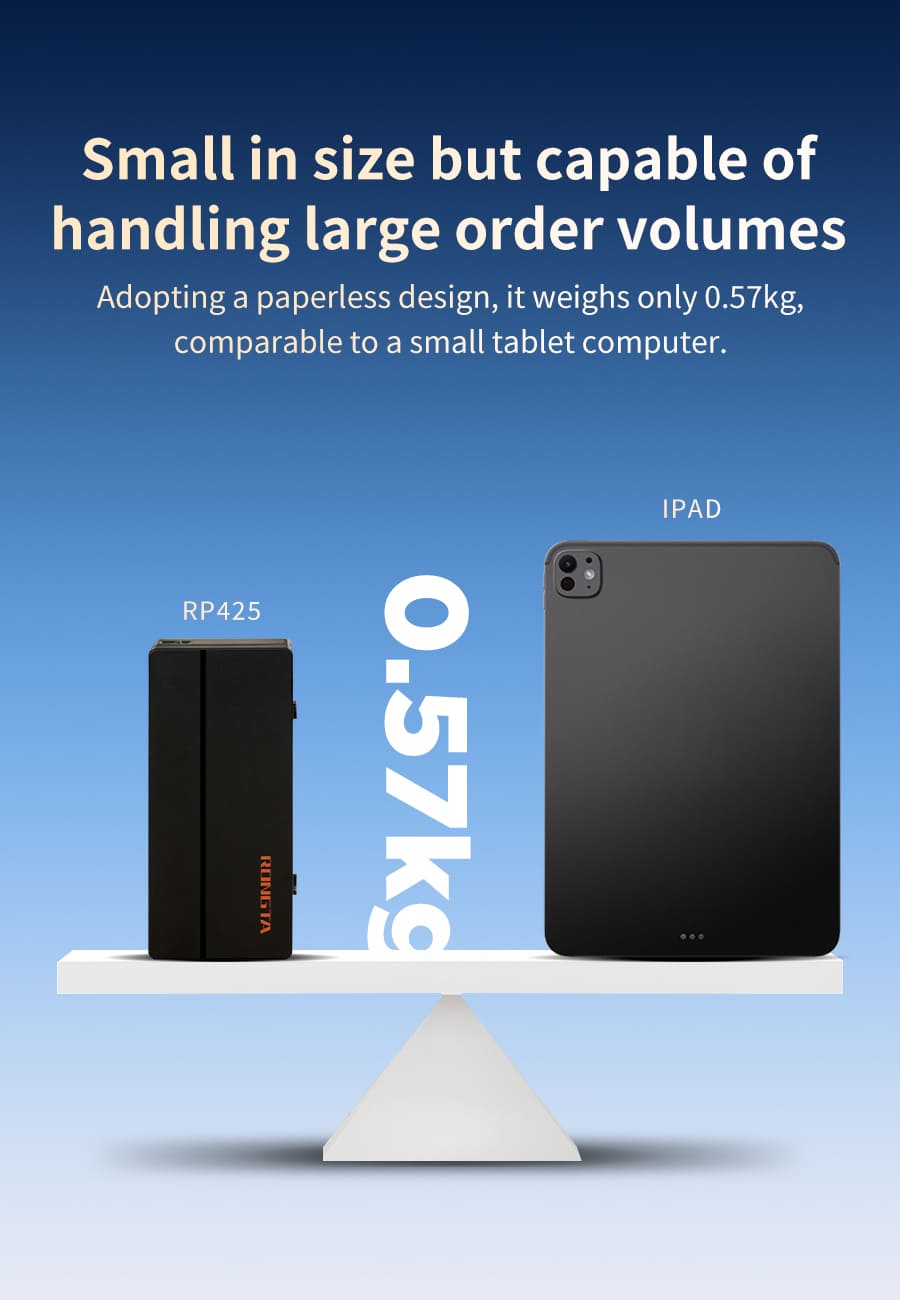

The compact design makes it lightweight and portable, weighing only 0.57kg, Its mini size does not take up space and can be placed anywhere.

2.Convenient operation and label-saving design

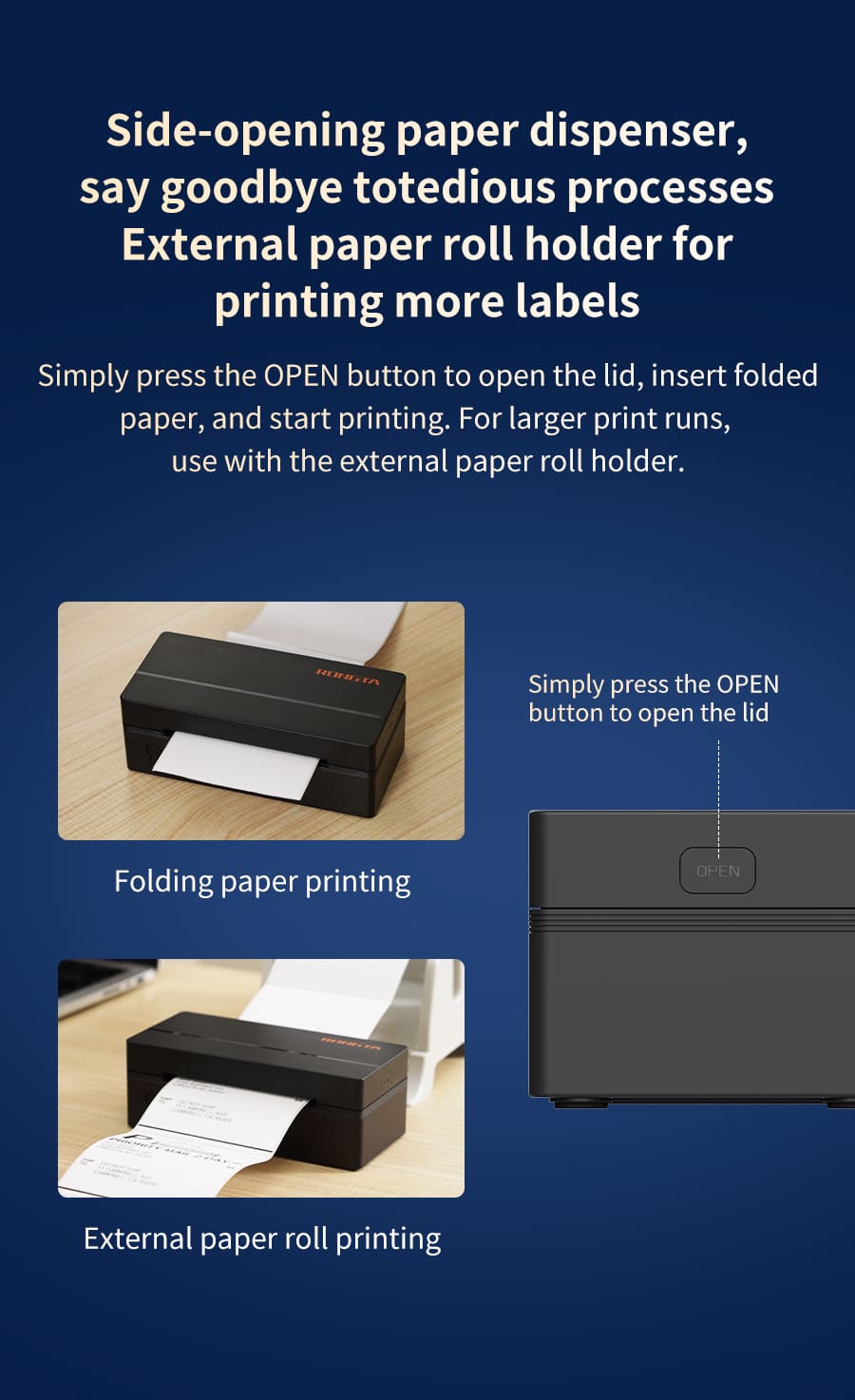

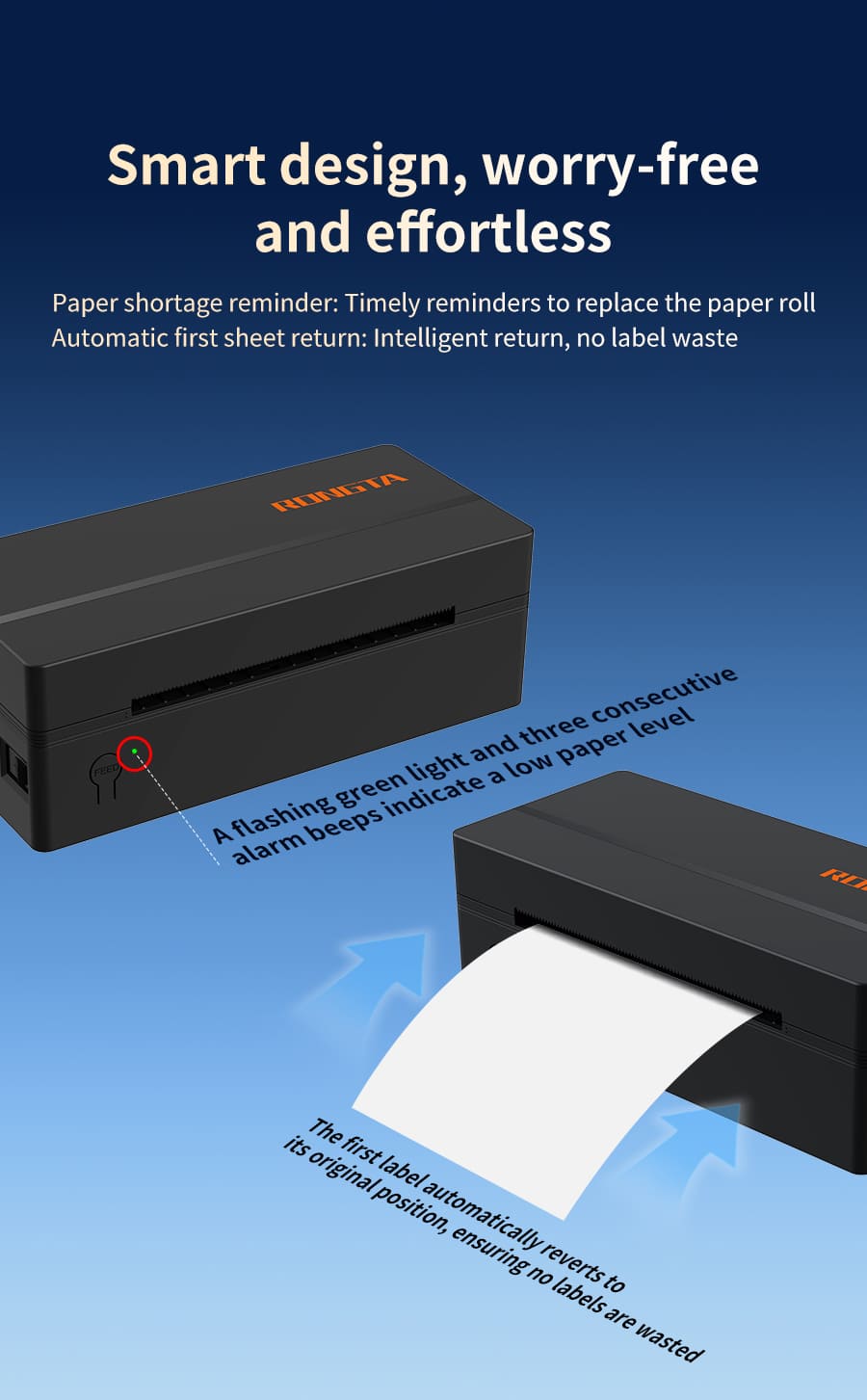

The side-opening cover paper loading design makes paper changing simple and quick; it has label learning and intelligent rollback functions, which effectively avoid label waste ; novices can also become familiar with the operating procedures in a short time.

3.Strong compatibility, supports various terminal connections, and meets diverse business needs

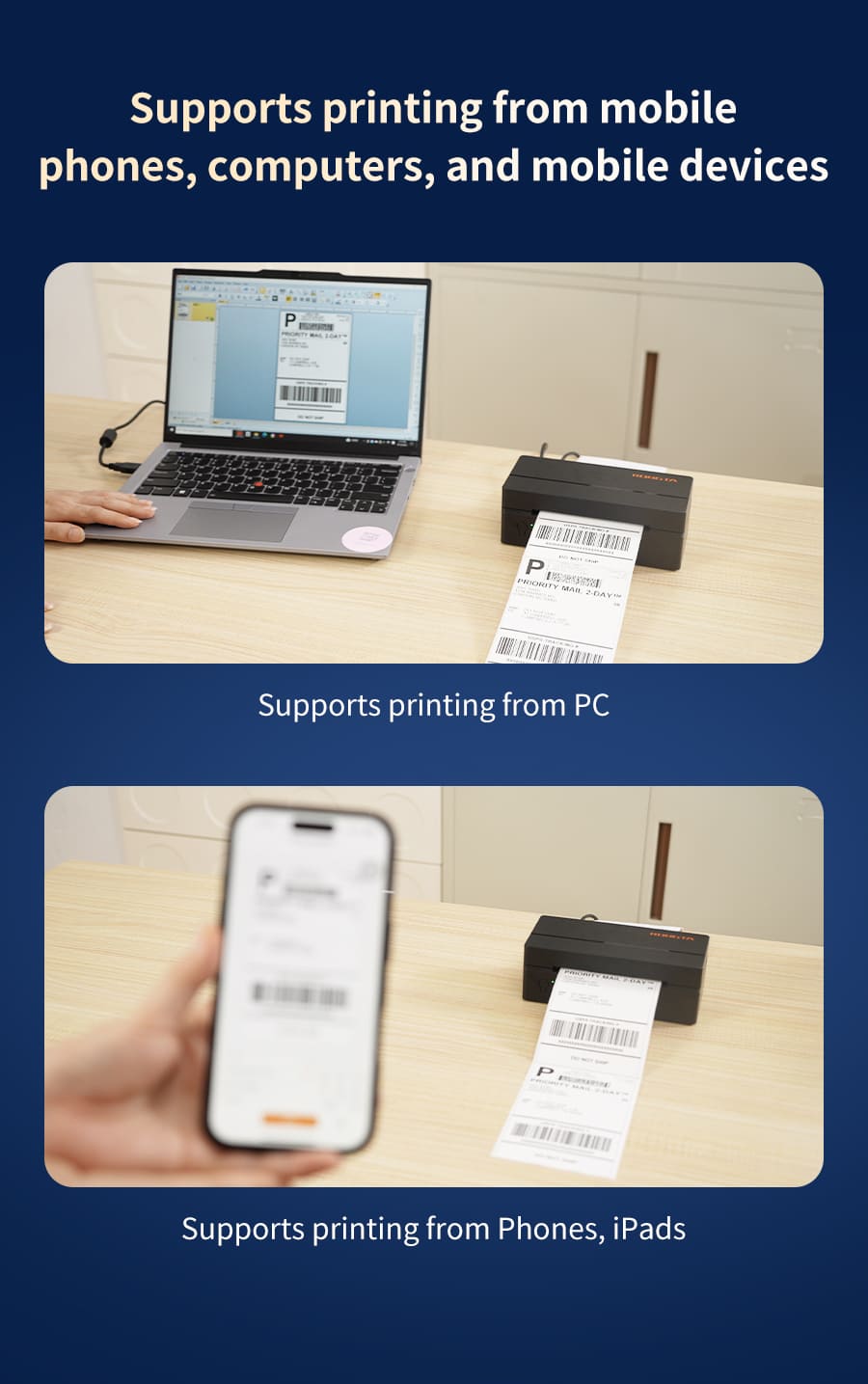

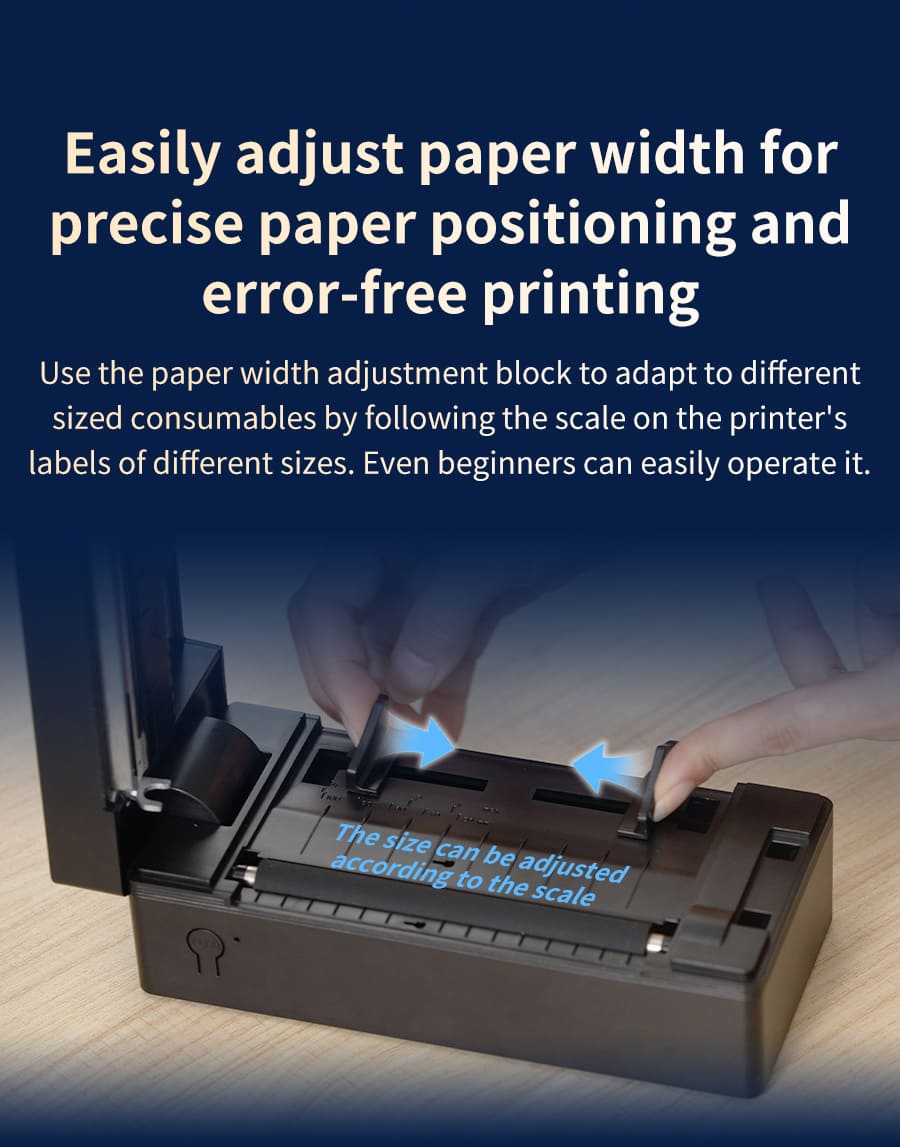

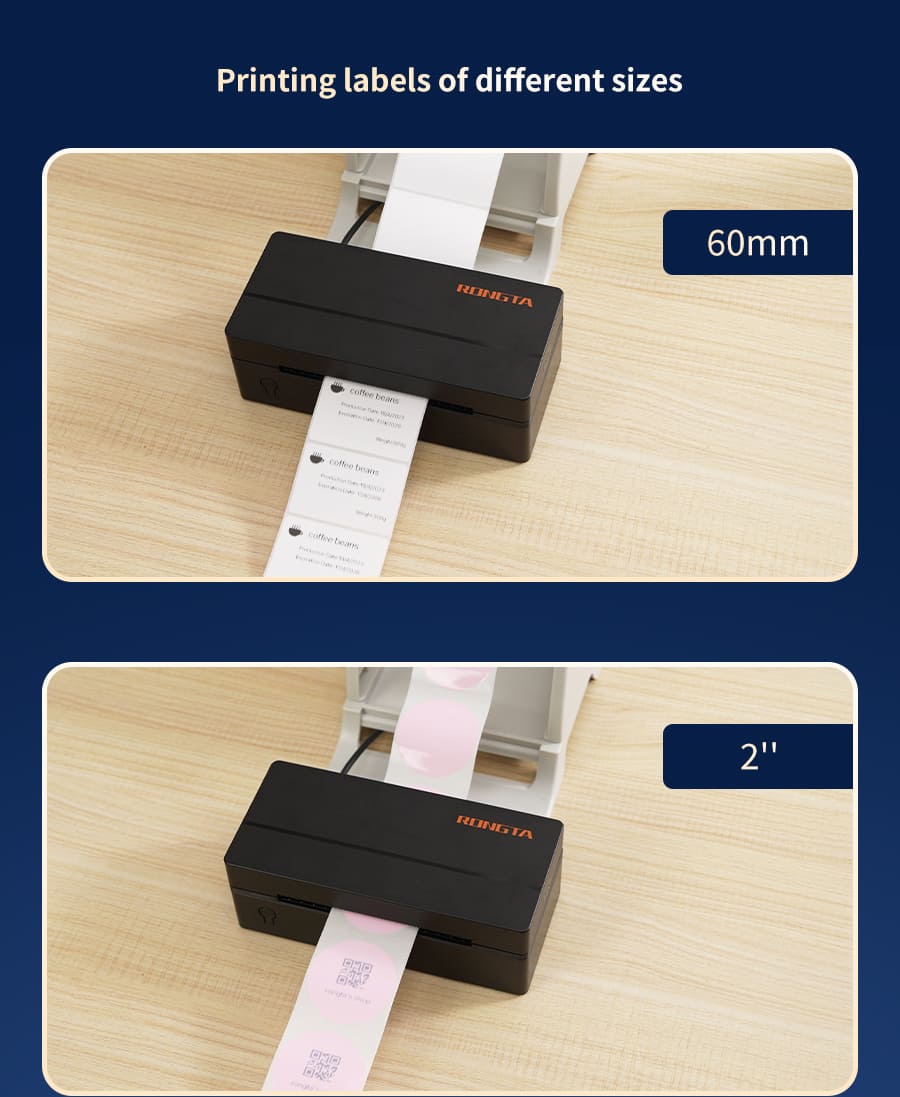

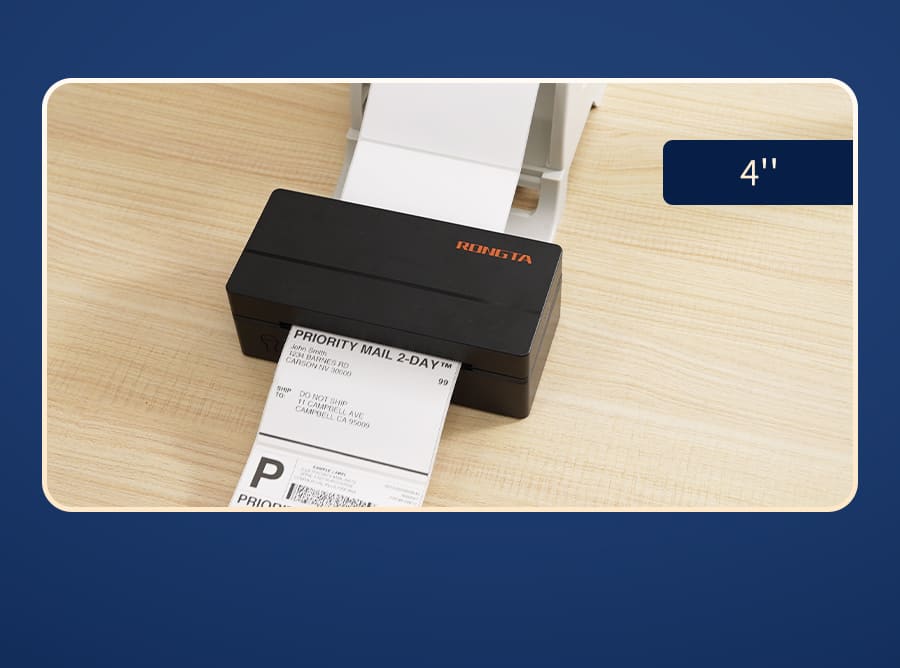

It meets the label printing needs of small e-commerce companies; it can be easily connected to various terminals: PC, APP, IPAD, and multi-terminal operation are all in one machine; the APP supports PDF and image printing, with a maximum printing speed of 5 ips (127mm/s), which can easily meet various printing needs in the logistics and warehousing industries; it is compatible with multiple sizes of consumables and supports printing of consumables with a maximum paper width of 111mm.

Free genuine Bartender editing software, printing is easier

Usage scenarios:Logistics, Warehousing, Supermarket, Retail, E-commence

Technical Specifications

Product Specifications		Product Specifications
project		parameter
Print	Printing method	Thermal
	Resolution	203dpi
	Maximum printing width	4.23''(108mm)
	Maximum printing speed	150 mm/s
	Print length	0.79''-11.81''(20-300mm)
sensor		Seam mark detection, black mark detection, paper out detection, cover open detection, head temperature detection
medium	type	Label paper, black label paper(bottom black mark), folding paper
	Width (label + backing paper)	0.98''-4.37''(25-111mm)
	Thickness (label + backing paper)	0.0023''-0.0071''(0.06mm~0.18mm)
	Maximum paper roll diameter	NA
	Reel inner diameter	NA
Paper tearing method		Manual tearing
Processor		32-bit ARM MCU
Storage	RAM	2MB
Storage	FLASH	4MB
Function	Button	Rocker switch, Feed button, paper compartment Cover button
	Indicator light	Yes
	Buzzer	Yes
	Display	NA
	Others	NA
Communication interface		USB+Bluetooth
Programming language		ZPL+ESC
Built-in fonts		ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
Built-in fonts		GB18030: 24×24
Code page	Extended character table	CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	One-dimensional code	Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, EAN14, Code11
Barcode	QR code	QRCODE, PDF417 (optional)
Software	Driver	XP/Win7/Win8/Win10/Win11/MacOs/Chrome
	SDK	Android, iOS, Windows
	Label design	Bartender, RT ELabel APP (IOS & Android)
Power adapter		Input: AC 100-240V, 50/60Hz
Power adapter		Output: DC 24V/2.5A
Environmental parameters	Work	Temperature: 32-104°F (0-40°C); Humidity: 20-90% (non-condensing)
Environmental parameters	Storage	Temperature: 14-140°F (-10-60°C); Humidity: 5-95% (non-condensing)
Physical parameters	Dimensions	180(L)×83(W)×65(H)mm
Physical parameters	Weight	0.57kg
Accessories	Standard	■USB cable ■Adapter ■Quick Installation Guide
Accessories	Optional	■Label paper■External paper bracket
