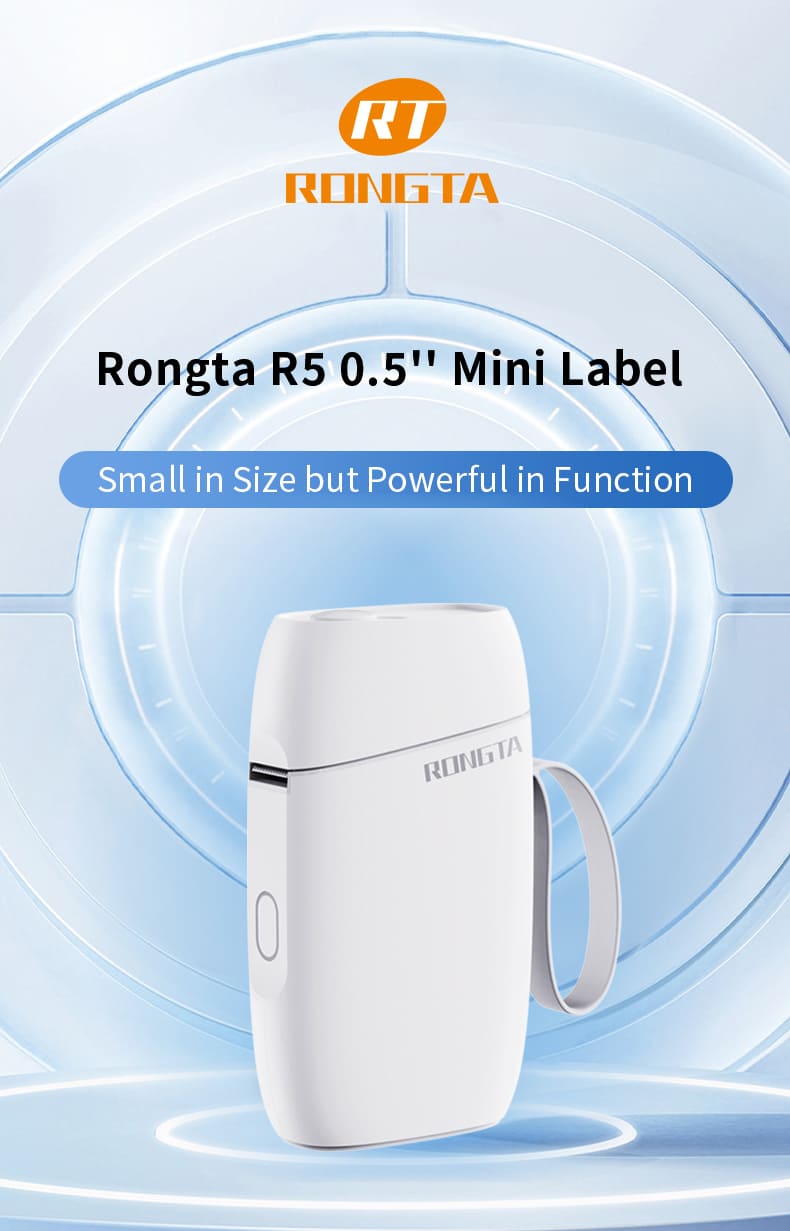

R5 Mini Label Printer

Small in Size but Powerful in Function

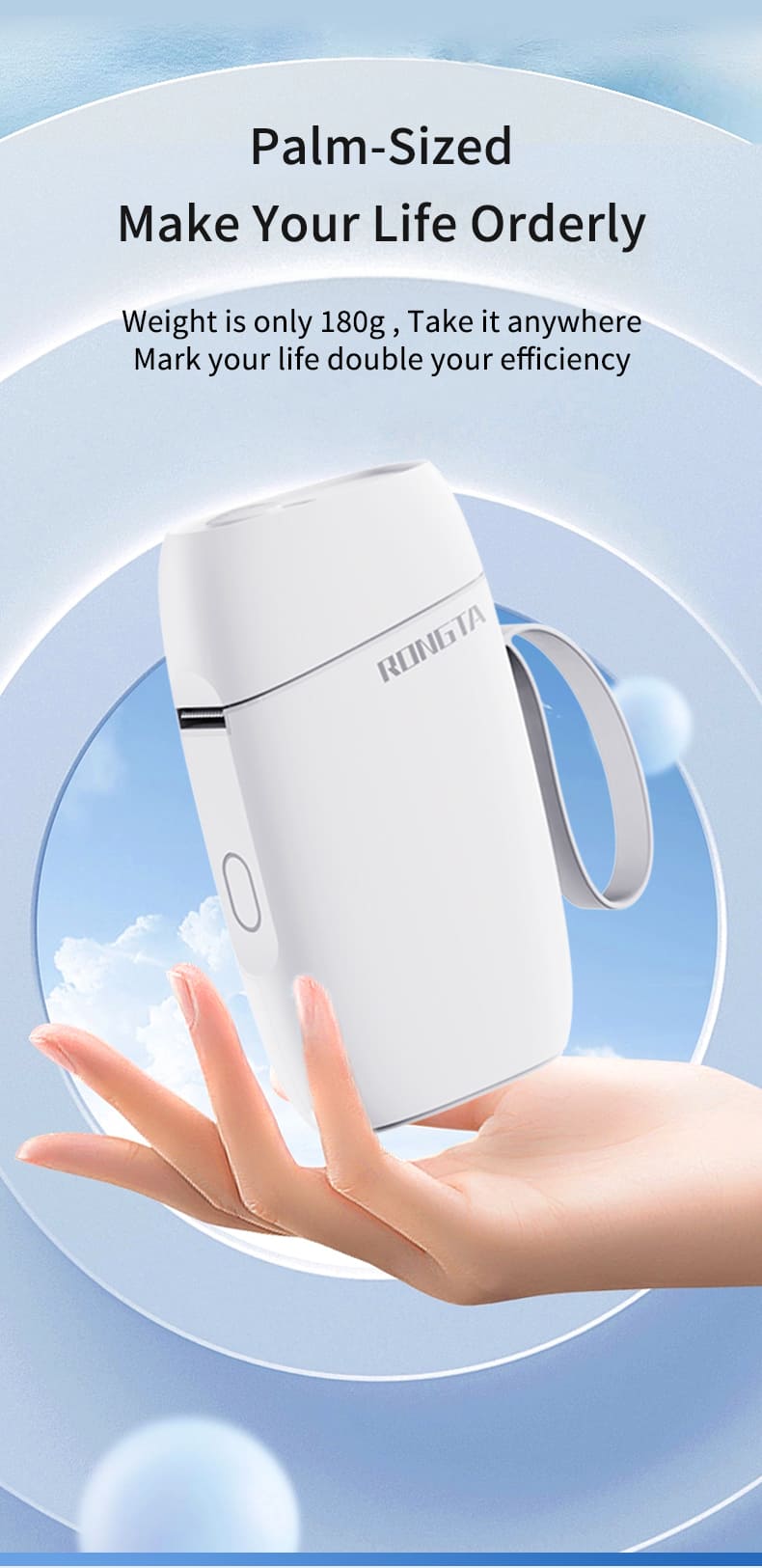

Palm-Sized

Make Your Life Orderl

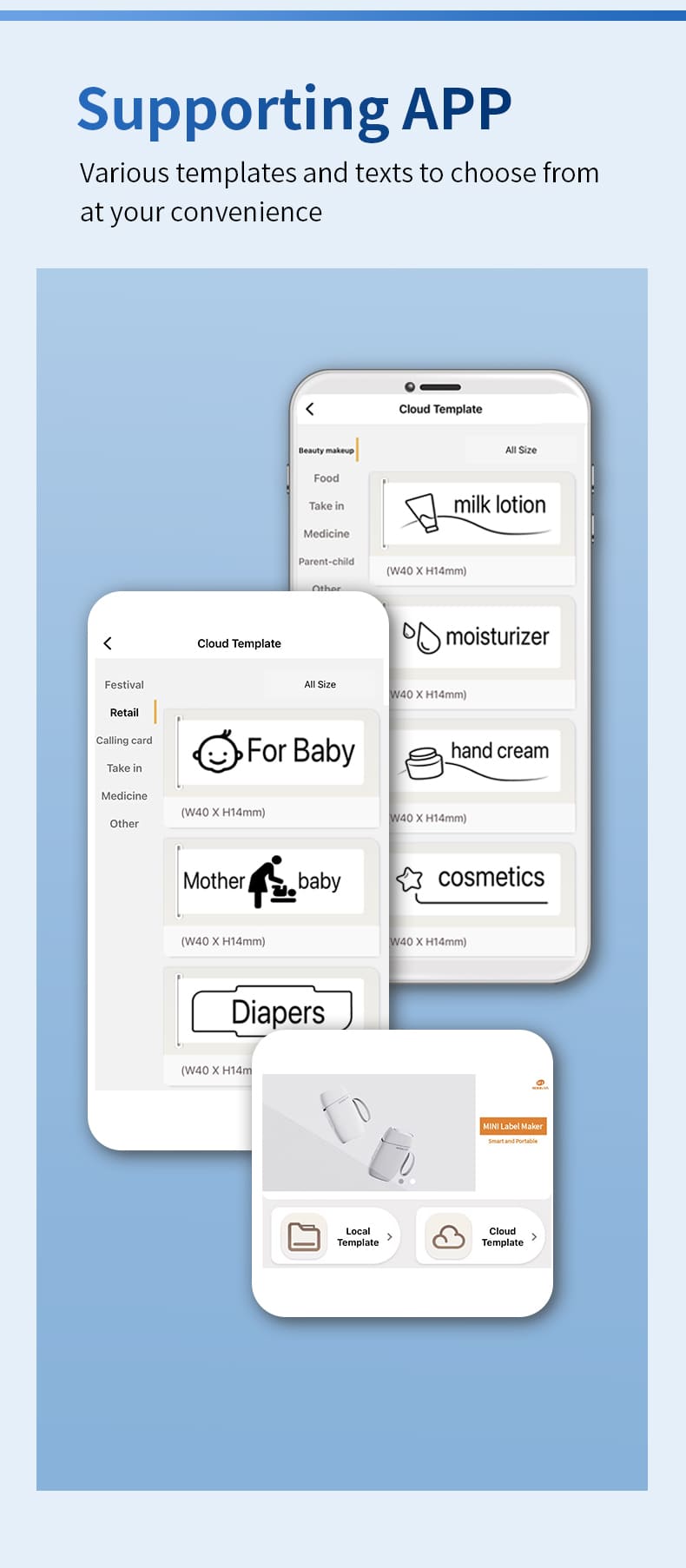

Print by connecting your phone to the RLabel APP

Various templates and texts to choose from at your convenience

Application Scenario

Daily storage to avoid Clutter, Mark Information for a Convenient Life, Office management to improve quality and efficiency, Journal tags add fun

Daily storage to avoid Clutter

Mark Information for a Convenient Life

Office management to improve quality and efficiency

Journal tags add fun

Two color options are available

Weighing only 180g, it's easy to carry around

Technical Specifications

project	parameter	parameter
Print	Printing method	Direct Thermal
	Resolution	203dpi
	Maximum print width	0.5''(12mm)
	Maximum printing speed (12.5% printing rate)	1.18ips(30mm/s)
	Maximum print length	180mm
Sensor		Cover opening detection, seam mark detection, paper shortage detection, head temperature detection
Medium	Type	Label paper
	Width (label + backing paper)	0.59''(15mm)
	Thickness (label + backing paper)	0.0023''-0.0071''(0.06mm~0.18mm)
	Paper roll diameter	45mm max
Paper cutting method Paper cutter		Manual tearing
Processor		32-bit ARM, MCU
Storage	RAM	64KB
Storage	FLASH	1MB
Function	Button	Power button (Feed button), paper bin cover opening button
	Indicator Lights	Three-color light
	Buzzer	Buzzer tone
Communication interface		Bluetooth + USB (Type-C)
Software	Label design	APP
Power supply	Enter	DC 5V/1A
	Battery	1500mAh Li-ion battery
	Charging time	3.5 hours
	Battery life	4h
Environmental parameters	Work	Temperature 0~45℃; humidity 20℃—85℃
Environmental parameters	Storage	Temperature -20~70℃; humidity 10~95%
	Machine size (L x W x H)	76.1x130.6x33.8m (without hand strap)
	Weight	180g
Accessories	Standard	USB cable, quick installation guide, 1 roll of label paper
