F82A
F82A

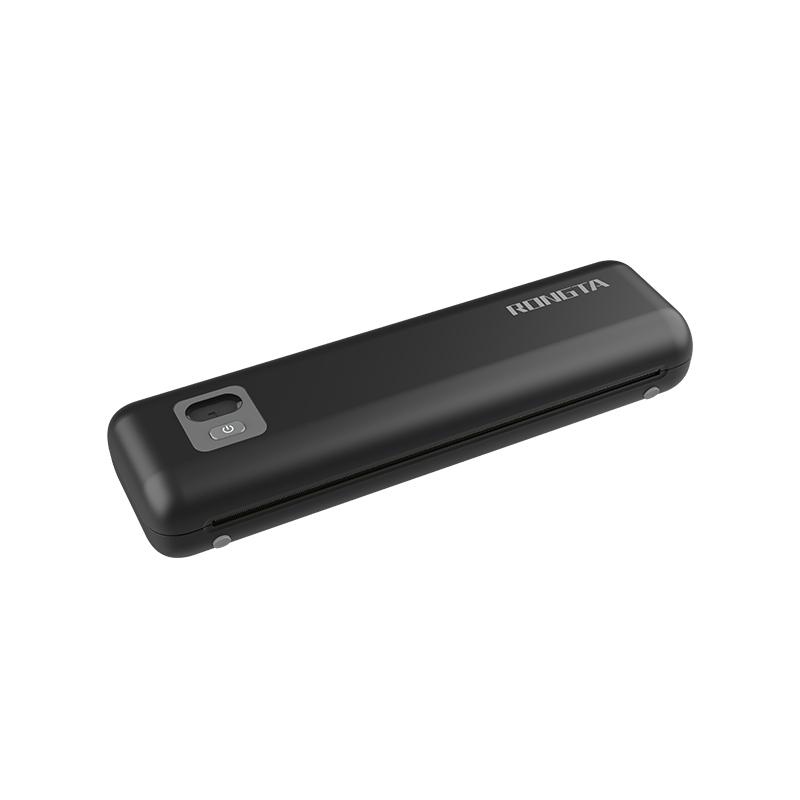

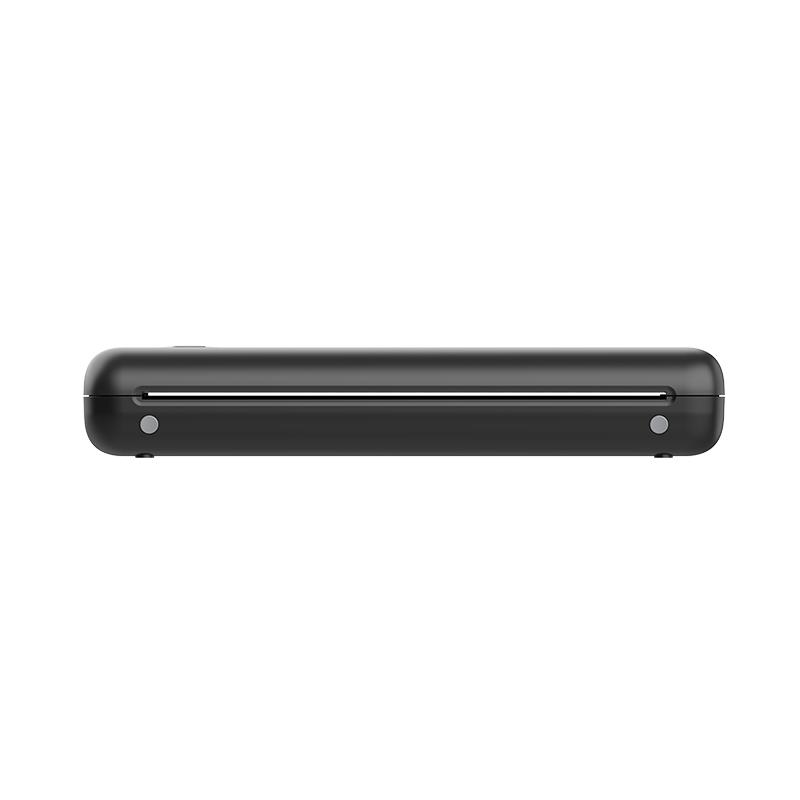

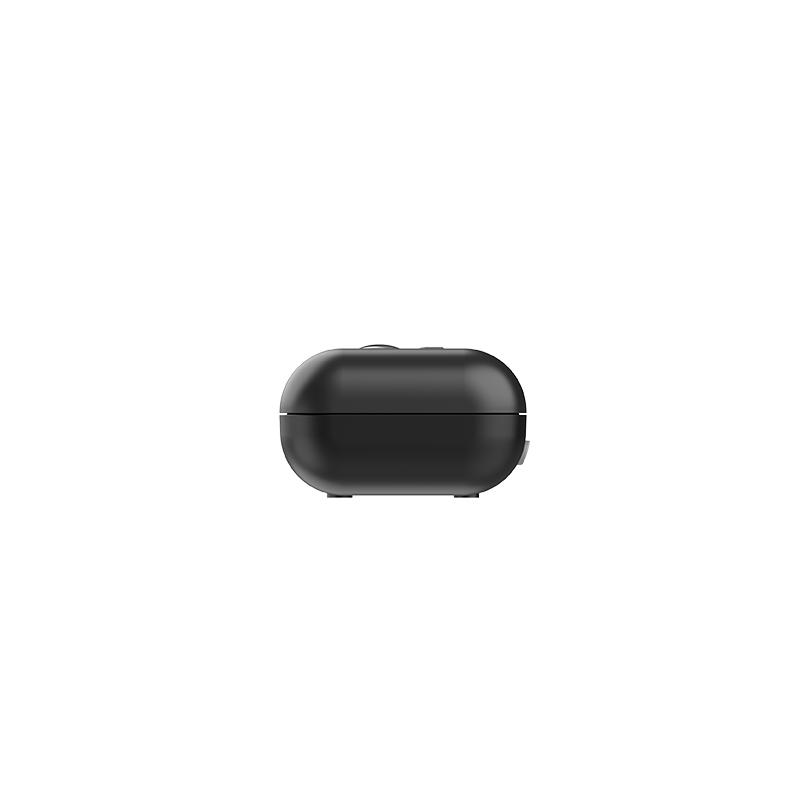

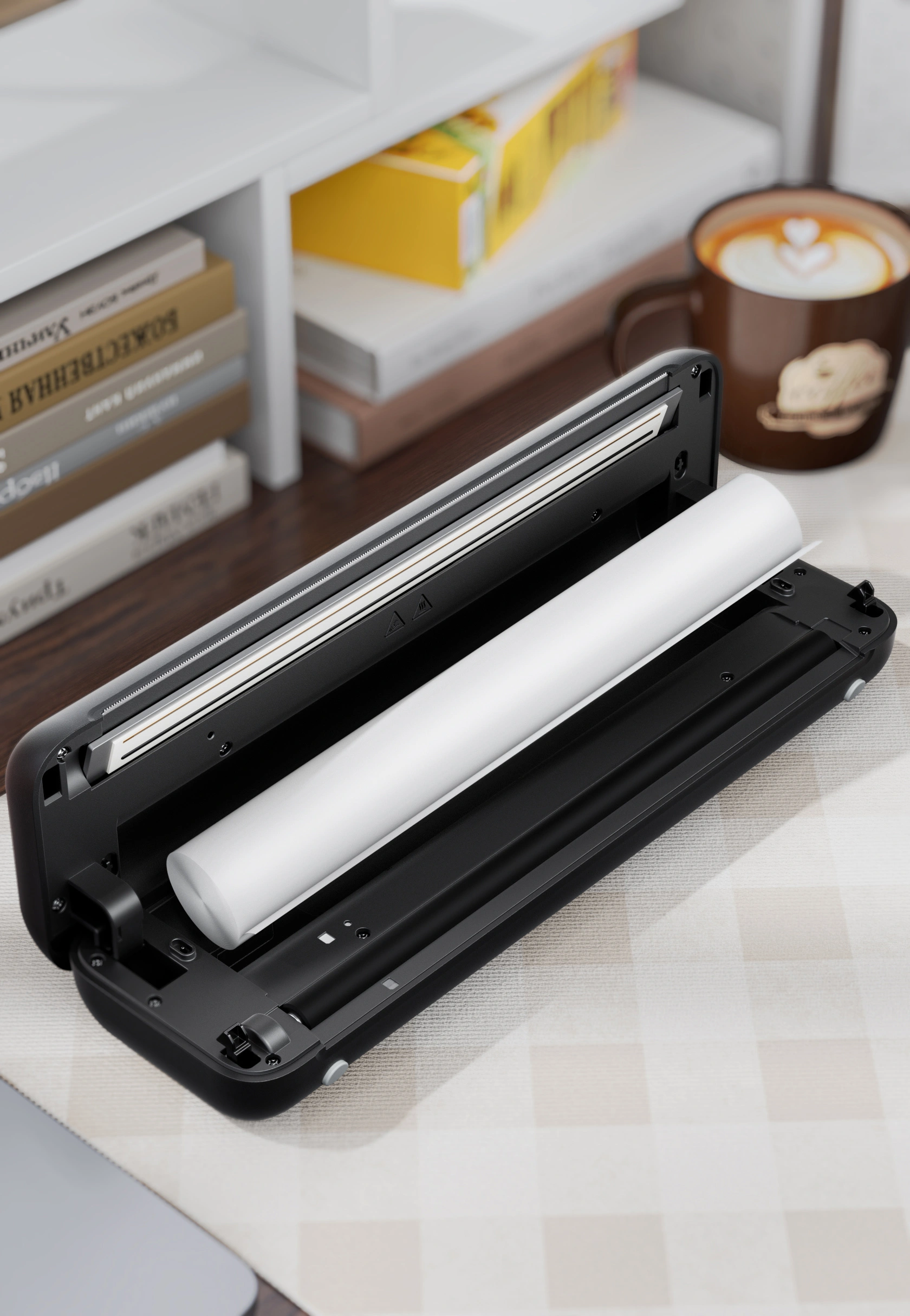

A4 Front-Output Thermal Printer (with Paper Tray)

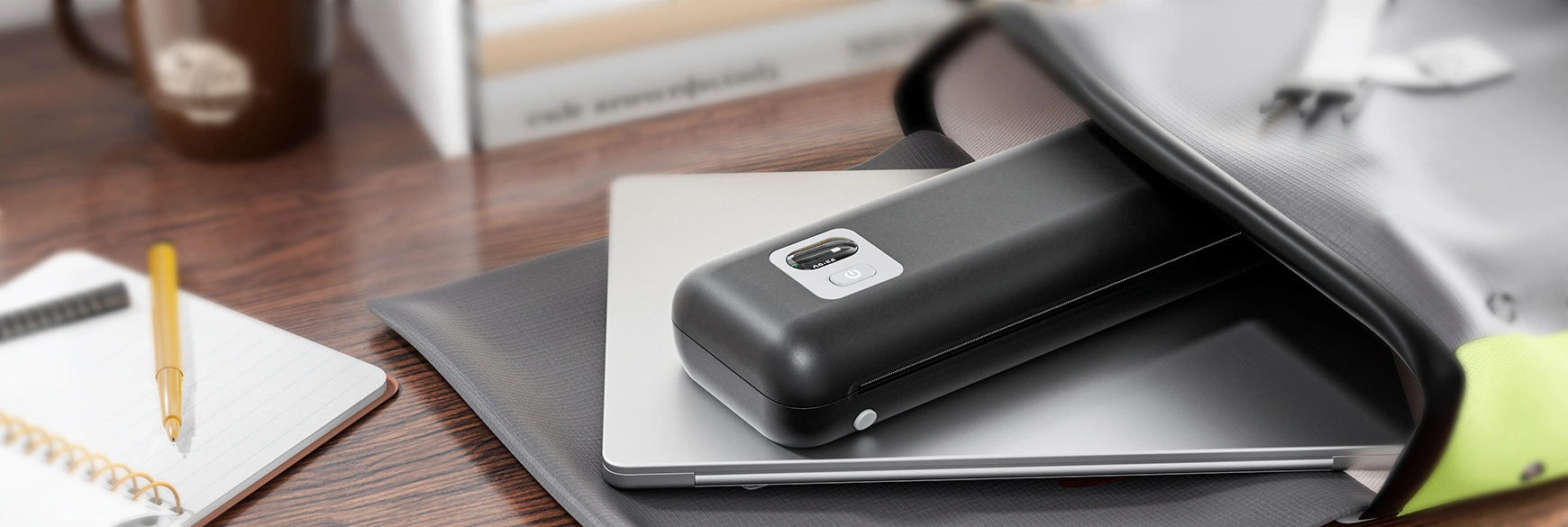

Lightweight and portable, with seamless printing.
Printing student error correction notebooks

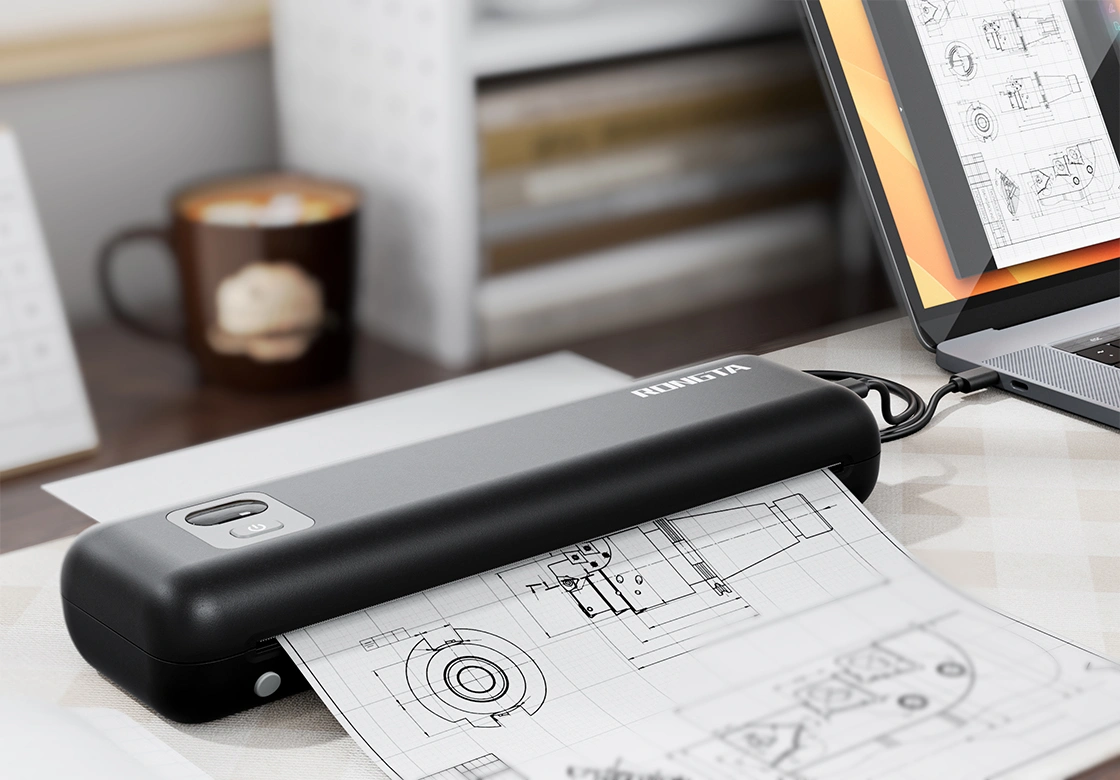

Printing documents for mobile office use
Printing itineraries for business trips or travel
Printing at construction sites

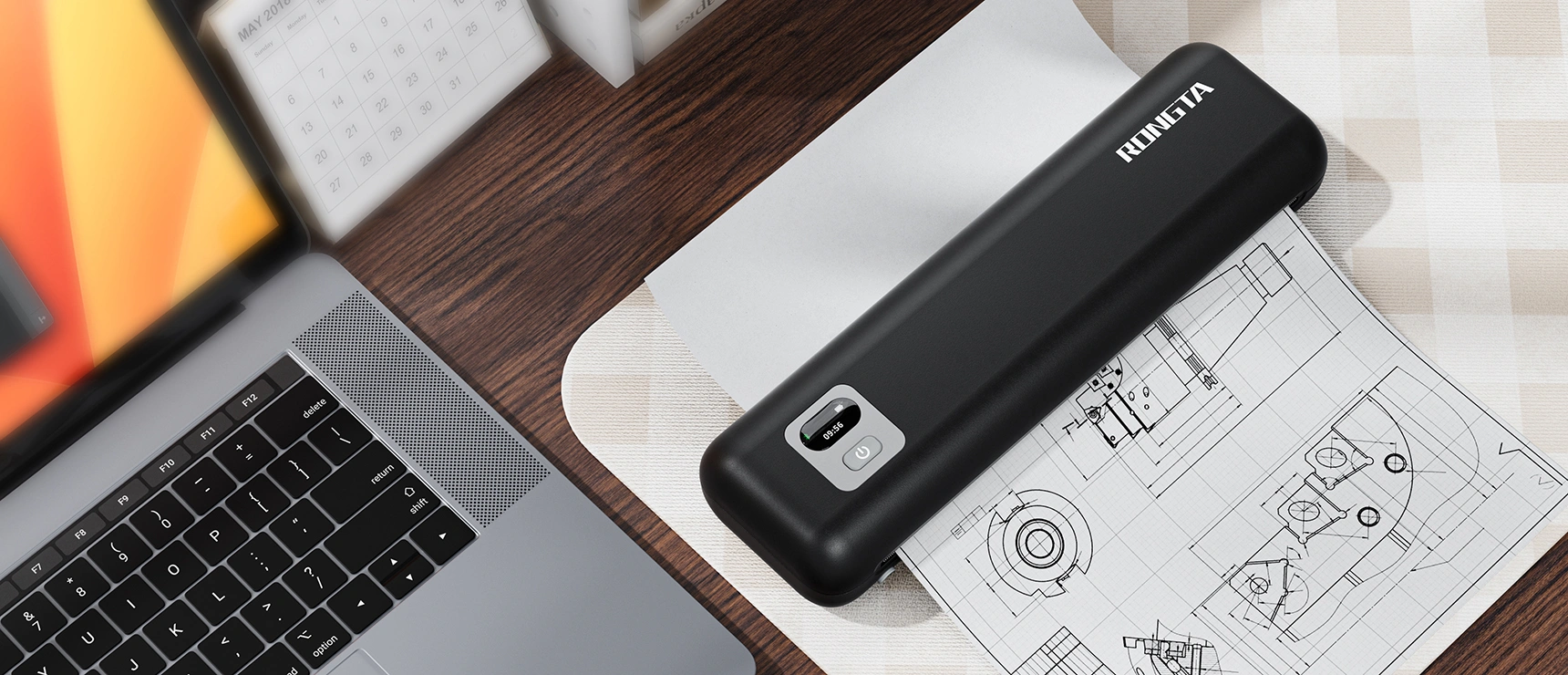

Supports printing on various paper sizes
A4, A5, and B5 paper can all be printed.
Technical Specifications
| Overall size | Paper feeding method | Paper ejection from the front, supports automatic paper feeding function (shared paper-out optocoupler) | |
| Overall dimensions (length, width, height) | 272*78*48.5mm | ||
| Net weight | 725g | ||
| Color | White | ||
| noise | The printing process noise is less than60dB | ||
| Screen | size | 0.96-inch square screen | |
| Resolution | 80*160 | ||
| motherboard | SRAM (built-in) | 192KB | |
| FLASH | 1MB | ||
| Bluetooth | Dual mode (support Android and IOS) | ||
| interface | Bluetooth+USB | ||
| Printing parameters | Printing method | Thermal line dot printing | |
| Effective printing width | ≤208mm | ||
| Resolution | 203dpi | ||
| Print speed | 8mm/s | ||
| Liftspan | 10KM | ||
| Power/battery | Battery | 7.4V 2550mAh | |
| Standby protection | 10min to shutdown | ||
| Printing endurance (number of prints) | 180 sheets | ||
| Standby battery life (hours) | 54H | ||
| Charging method | 5V 2A TYPE-C Charge | ||
| Charging time requirements | ≤3.9 hours | ||
| Buttons and display | POWER button | Power on, self-test page printing, paper out of study, etc. | |
| Reset button | Pinhole reset | ||
| Display content | 1) Bluetooth icon: always on when connected 2) Battery indicator: displays the number of bars 3) Error status: displayed as a large icon (paper out/overheating/hardware error), which takes priority over the battery indicator |
||
| Paper specifications | Paper types | Roll paper/sheet paper/folding paper (black label) (US A4, GB A4, A5, B5) Continuous self-adhesive/label paper (4-inch, 3-inch, 2-inch) (roll diameter ≤ 30mm); stepless adjustment | |
| Paper properties | Waterproof, oil-proof and scratch-resistant | ||
| Paper thickness | 0.055~0.15mm | ||
| Paper width | 216mm Max | ||
| Detection | Heating head temperature | Thermistor | |
| Out of paper | Support | ||
| Axis position detection | Support | ||
| Front detection optocoupler | Support | ||
| Paper Cutter | Paper tearing knife | support | |
| Sound | Buzzer | Not supported | |
| Driver | Driver | WINDOWS/MAC | |
| SDK | Chrome OS plug-in/Webprint SDK/Android/IOS | ||

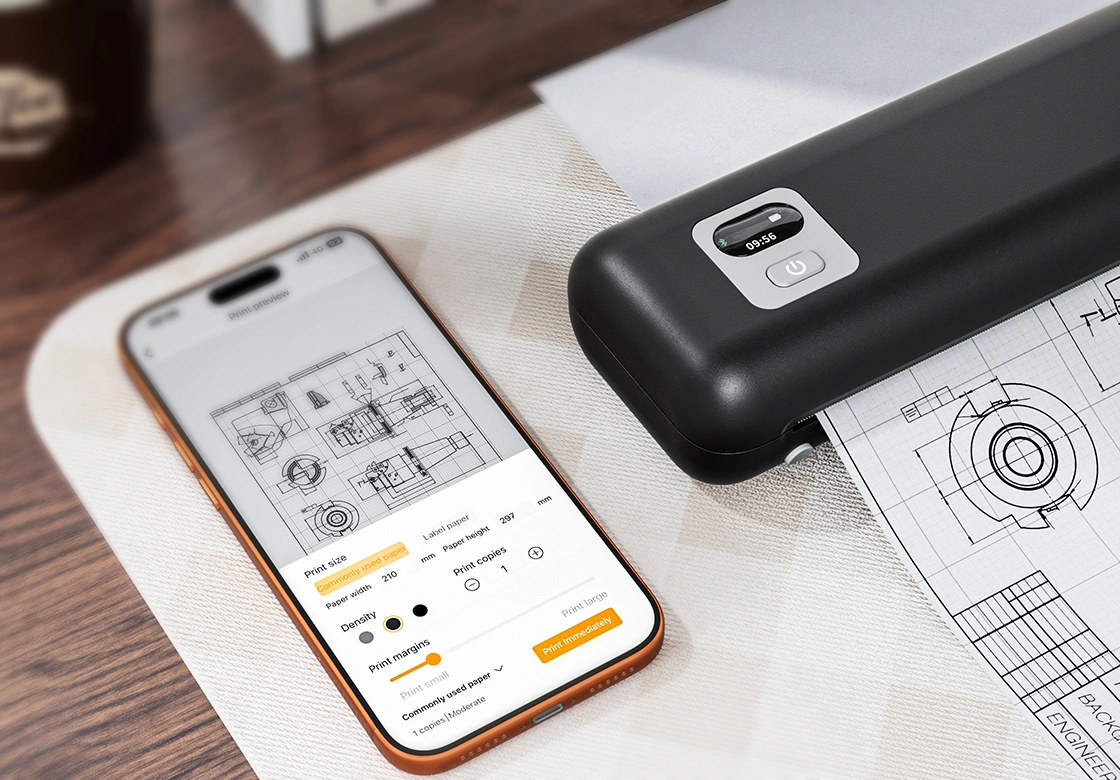

| APP | System | iOS/Android | |
| Name | Soprint | ||
| Accessories |
■Quick installation■USB-Type-C data cable ■paper roll ■Optiona:■U disk■Flannel bag |
||
| Package | ■Outer box■Pearl cotton sleeve■CPE belt■Color box | ||
| Environment | Work Environment | Working temperature: 0℃—45℃ Working humidity: 10～80% | |
| Storage Environment | Storage temperature: -10～60℃ Storage humidity: 10～90% | ||
