RT347

Printer Mechanism

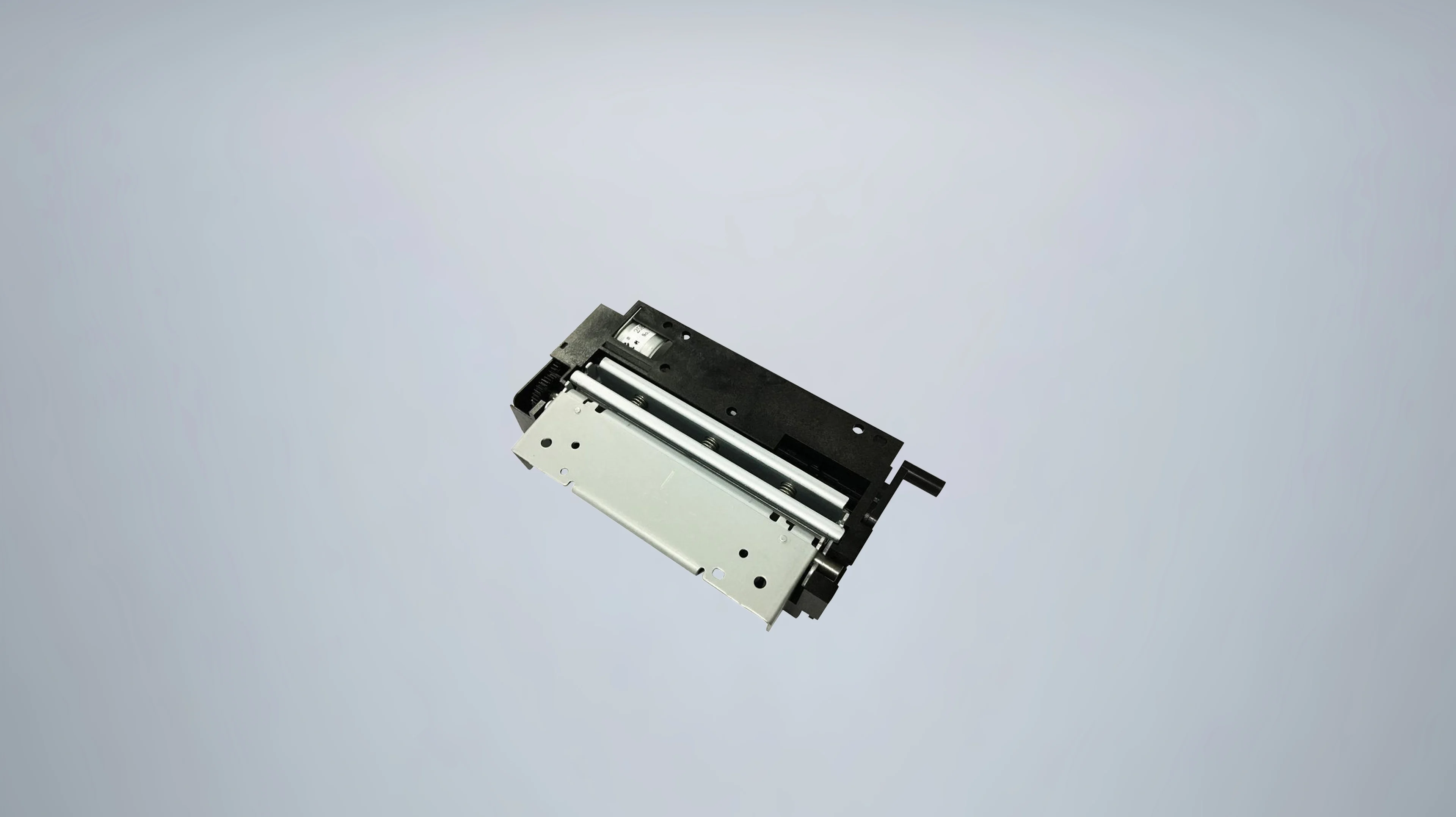

RT347 3" Thermal Printer Mechanism

Compatible with Seiko LTPF347

Technical Specifications

Printing Method	Thermal Dots Line Printing
Dots/line	640 dots
Printable dots per line	576 dots
Simultaneously activatable dots per line	352 dots
Resolution	8 dots/mm
Maximum print speed	220mm/second
Printing Width(mm)	72mm
Paper Width(mm)	80mm
Paper feed pitch	0.125mm
Head temperature detection	Via a thermistor
Platen position detection	Via a mechanical switch
Out of paper detection	Via a photo interrupter
Operating Voltage range	Vp line: 24V±10%
Operating Voltage range	Vdd line: 5V±5%
Motor drive (Vp)	0.55A max
Head Logic (Vdd)	0.1A max
WxDxH(mm)	110.2x54x25.8
Weight(g)	About 175
Life Span	100km or more
Operating temperature(°C)	0 - 50
Storage temperatue(°C)	25 - 70
