RT532

Printer Mechanism

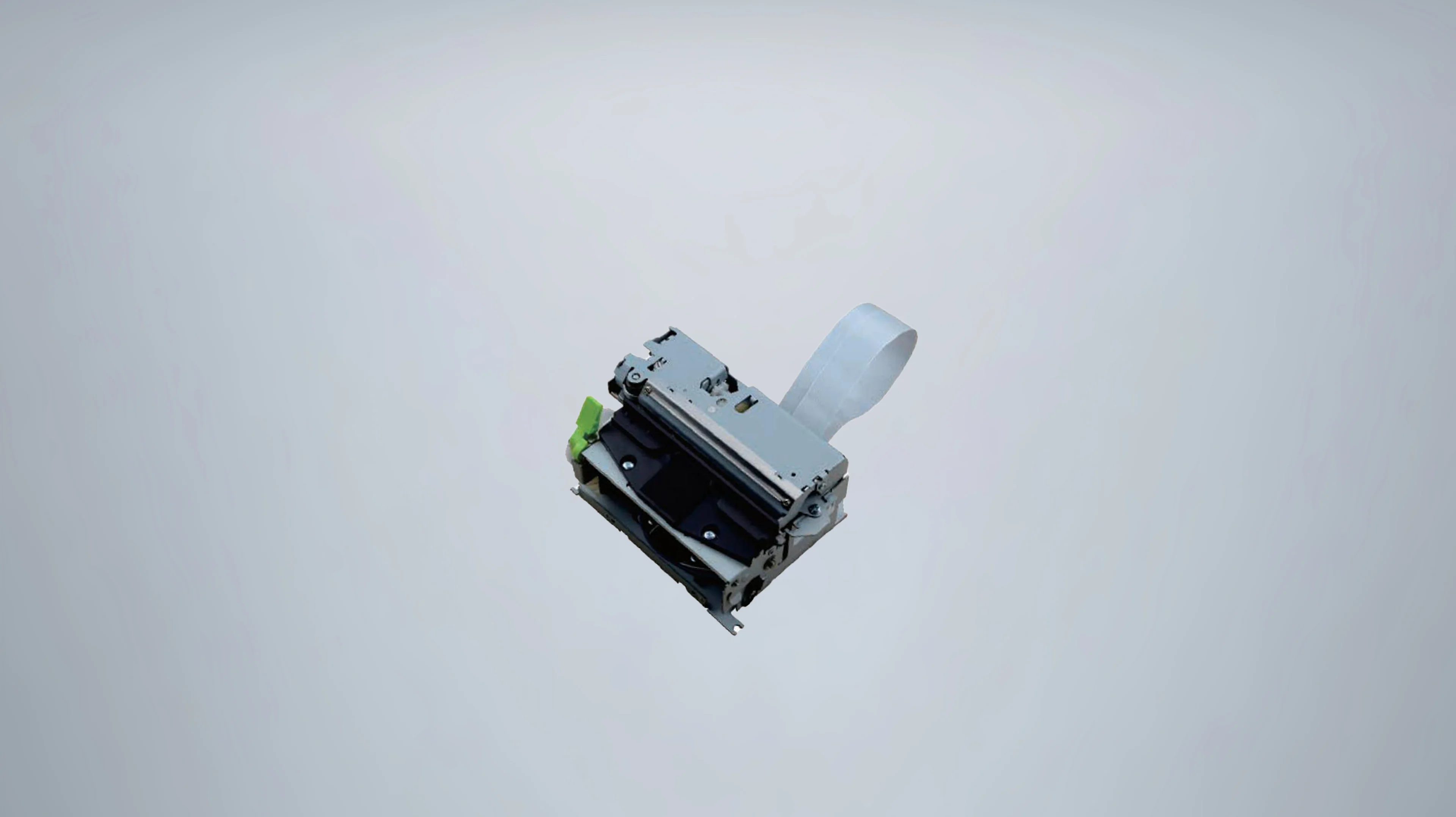

RT532 3" Thermal Printer Mechanism

1. High Printing Speed up to 220mm/second
2. Compatible with EPSON M-T532

Technical Specifications

Item	RT532
Printing Method	Thermal
Dots/line	640 dots/line
Resolution	8
Printing Width(mm)	72
Paper Width(mm)	80
Paper Thickness(μm)	56-150
Feed Resolution(mm)	0.125
W x D x H(mm)	126.8x91.8x57.5(without FPC)
Weight(g)	532
Head temperature detection	Thermistor
Paper detection	Transmission photoelectricity switch
Black mark detection	Reflecting photoelectricity pipe
Platen position detection	Light touch swith
Operation voltage (V)	24±10%
Logical voltage(V)	5±0.25
Formfeeding motor voltage(V)	24±10%
Auto cutting motor voltage(V)	24±10%
Detection voltage (V)	5±0.25
Abrasion resistance	100 km
Auto cutting frequency	1 million times
Operating temperature(°C)	0 to 50 (no condensation)
Operating humidity(RH)	10% to 80% (no condensation)
Storage temperature(°C)	-25 to 70 (no condensation)
Storage humidity(RH)	5% to 95% (no condensation)
