RP332

80mm Thermal Receipt Printer

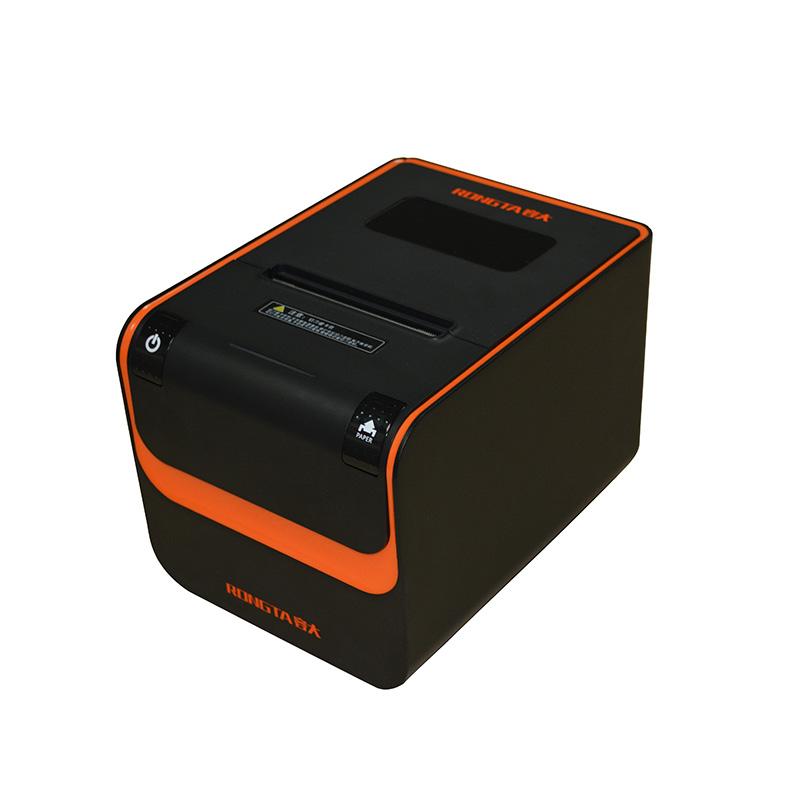

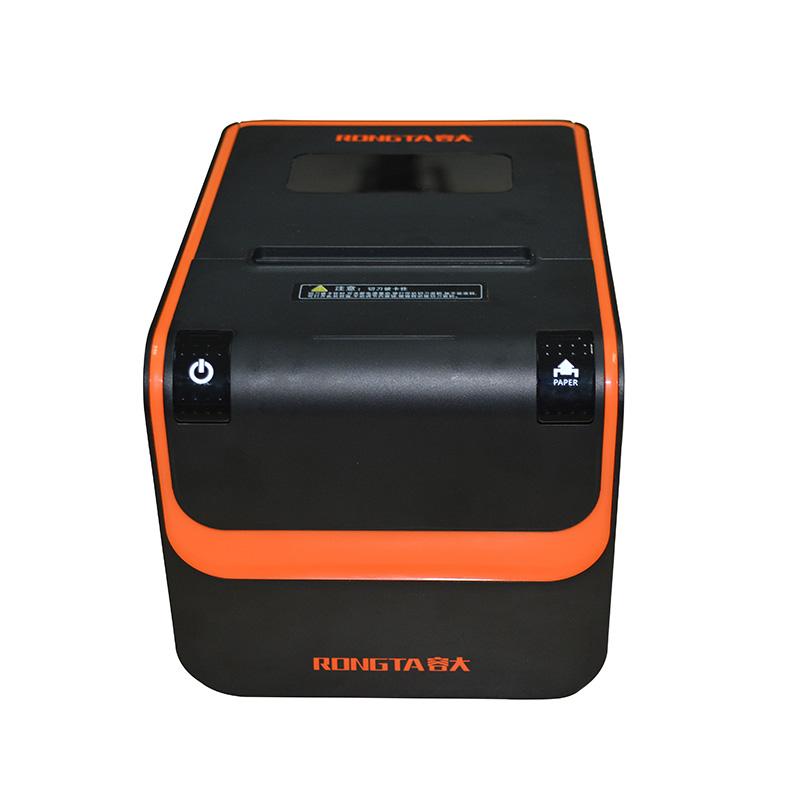

RP332 3inch Thermal Receipt Printer

1. Fashion appearance, easy to use
2. 80mm large paper warehouse, compatible with 58mm rolls
3. 250mm/s high printing speed
4. Support flat and wall hanging

Technical Specifications

Print	Printing method	Direct thermal printing
	Effective printing width	72mm or 64mm
	Resolution	203dpi(8 dots/mm)
	Printing speed	250mm/s
	Printing density	384 dots/line or 576 dots/line
	Character set	GB18030 (Simplified Chinese)
	Print font	ASCII Font A：12×24
		ASCII Font B：9×24
		Chinese: 24×24
	Character per line	Font A-42 lines or 48 lines/Font B-56 lines or 64 lines/Chinese-21 lines or 24 lines
Paper specification	Paper width	79.5±0.5mm
	Paper roll diameter	Φ80mm
	Paper loading	Easy paper loading
Barcodes	Barcode type	UPC-A,UPC-C,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128

Reliability	Thermal printing head	150 million impulses (150km)
	Auto cutter	1.5 million cuts
Interface		U、L、US、USE、UEG、L-P、USE-P
Paper out detection function		optional
Emulation		ESC/POS/OPOS
Driver		WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac

Power supply		DC 24V,2.5A
Cash drawer Control		DC 24V，1A
Certificate		FCC, CE, 3C、ROHS、REACH
Dimension (LxWxH )		195×145×148mm
Environment	temperature	working temperature: 0~45℃
		Storage：-10~60℃
	humidity	working humidity: 20-90%
		Storage：10-90%（paper exclused）
