RP326

80mm Thermal Receipt Printer

01

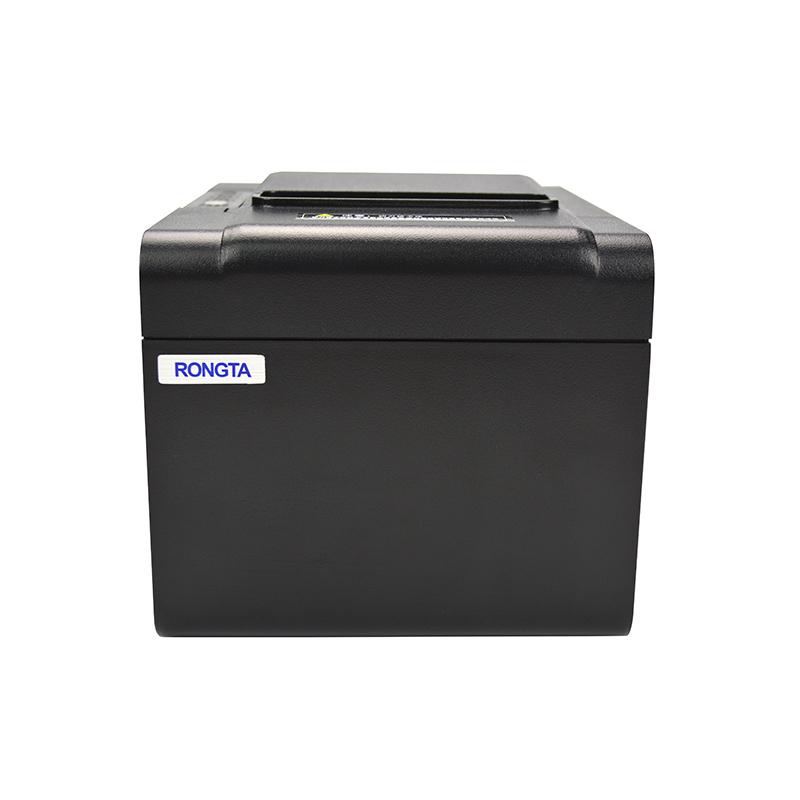

RP326 80mm Thermal Printer for Receipt Printing

1. High printing speed 250mm/s, low noise

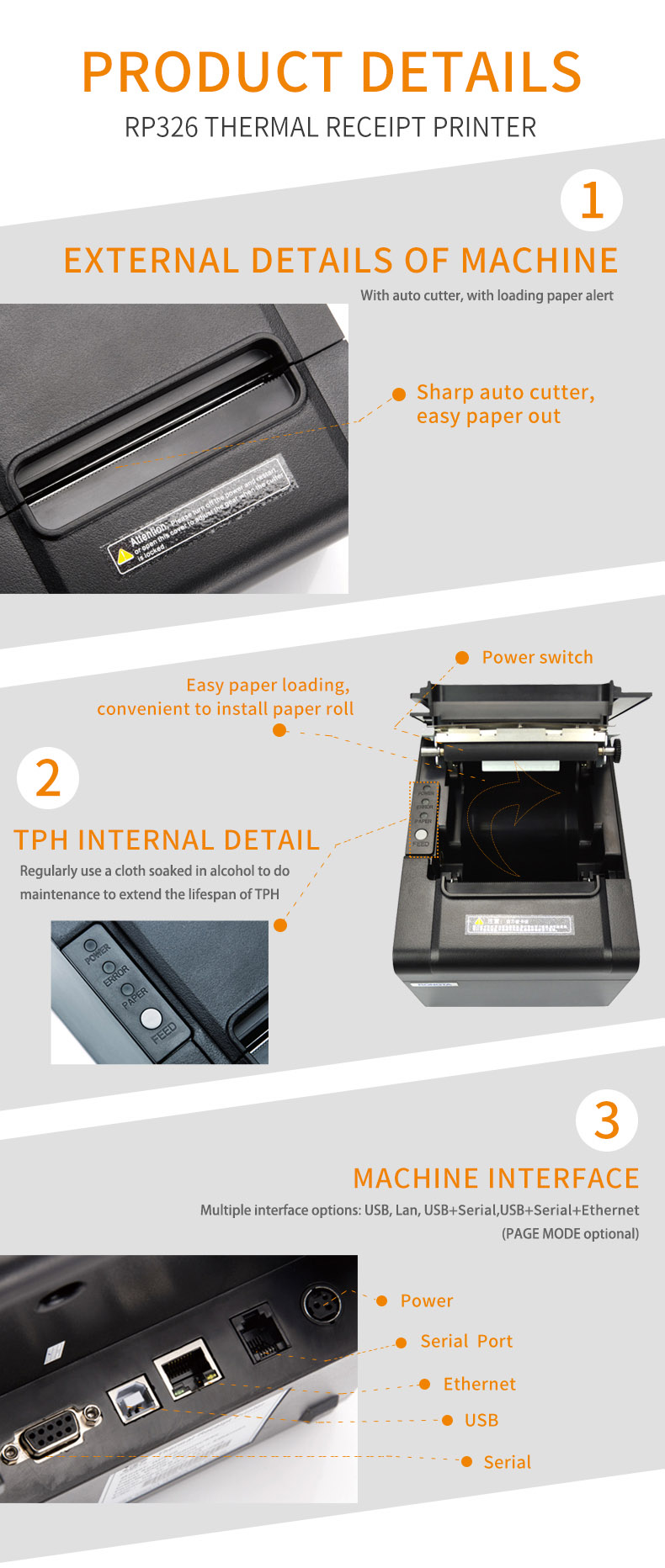

2. Auto cutter

3. Desktop or wall-hanging

4. Interfaces:USB, serial, ethernet

5. Suitable for kitchen, reception and many other applications

Technical Specifications

Print Printing method Direct thermal printing
Effective printing width 72mm or 48mm
Resolution 203dpi
Printing speed 250mm/s
Printing density 576 dots/line or 384 dots/line
Character set GB18030 (Simplified Chinese)
Print font ASCII Font A:12×24
ASCII Font B:9×17
Chinese: 24×24
Character per line Font A-48 lines/Font B-64 lines/Chinese-24 lines
Paper specification Paper width 79.5±0.5mm
Paper roll diameter Φ80mm
Paper loading Easy paper loading
Barcodes Barcode type

UPCA/UPCE/EAN13/EAN8/CODE39/I25/CodeBar/CODE128/CODE9

3/CODE11/MSI/QRCORE/PDF417

Auto cutter 1.5 million cuts
Interface USE/U/L (support Bluetooth, WiFi optional customization)
Paper out detection function optional
Emulation ESC/POS/OPOS
Driver WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac
Power supply DC 24V,2.5A
Cash drawer Control  DC 24V,1A
Certificate 3C、CE、FCCID 、ROHS、BIS、REACH
Dimension (LxWxH ) 191×140×143mm
Environment temperature working temperature: 0~45℃
Storage:-10~60℃
humidity working temperature: 20-90%
Storage:10-90%(paper exclused)
