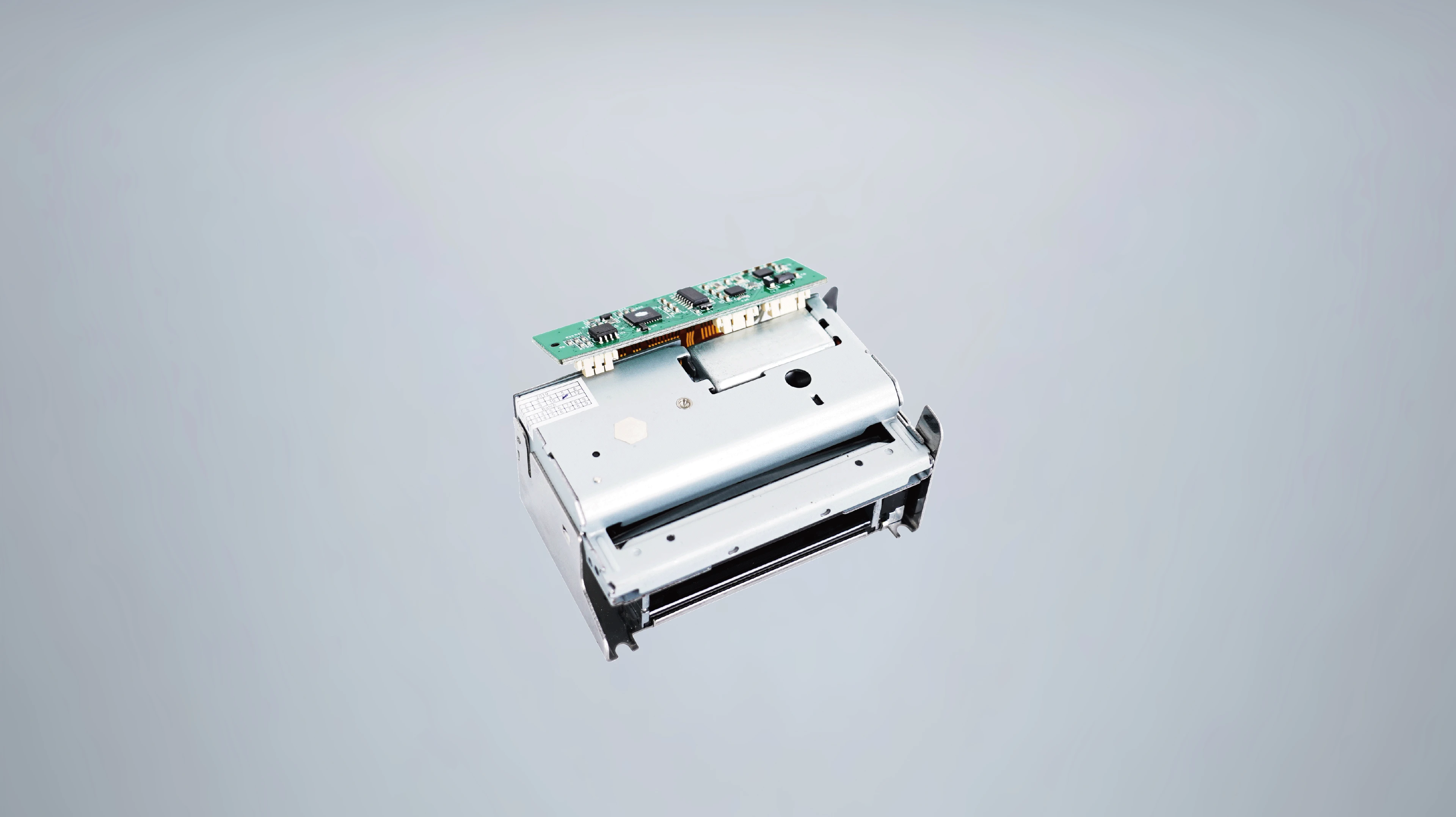

PM628 58mm Thermal Kiosk Printer

1. Printing Method: Thermal (Thermal Printer Mechanism RT628)

2. Paper Width: 58mm

3. Cutter: Guillotine; (Life long above 1 million times)

4. Printing Speed: Max 90mm/second

  • Product Features
  • Product parameters
  • Product Details

1. Printing Method: Thermal (Thermal Printer Mechanism RT628)

2. Paper Width: 58mm

3. Cutter: Guillotine; (Life long above 1 million times)

4. Printing Speed: Max 90mm/second

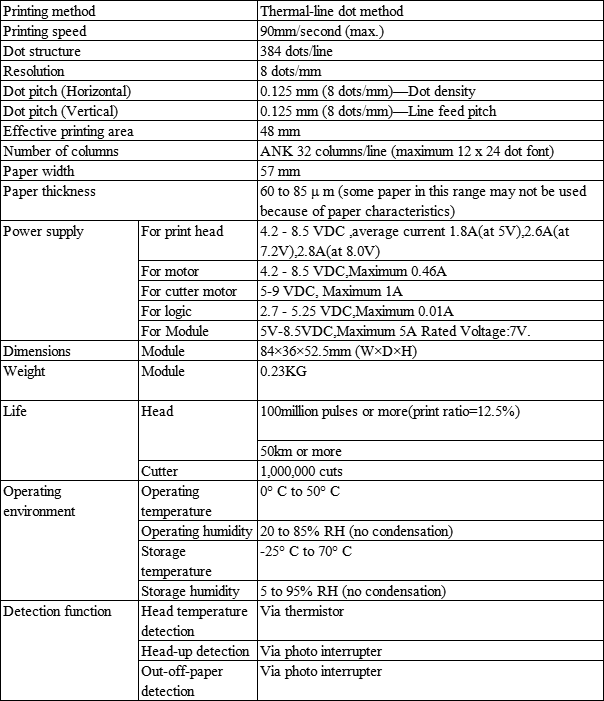

Product Model PM628
Product Introduction 1. Integrated design, simple appearance
2. Lack of paper detection, automatic paper guide
3. Automatic paper cutting
4. Low noise
Printing Method Thermal
Print Width 48mm
Print Speed 70mm/s (Max)
Resolution 203dpi
Software Print command: ESC/POS
Software SDK support: Windows/Android/IOS
Interface RS232/TTL
Paper specifications Paper type: Thermal paper
Paper width: 57.5±0.5mm
Paper thickness: 0.06~0.08mm
\
Dimensions: 84×36×52.5mm (L×W×H)
Power  Input power: DC 9V
Print Head Life 50KM
Automatic Paper Cutter Life 1 million paper cuts
