RPP30

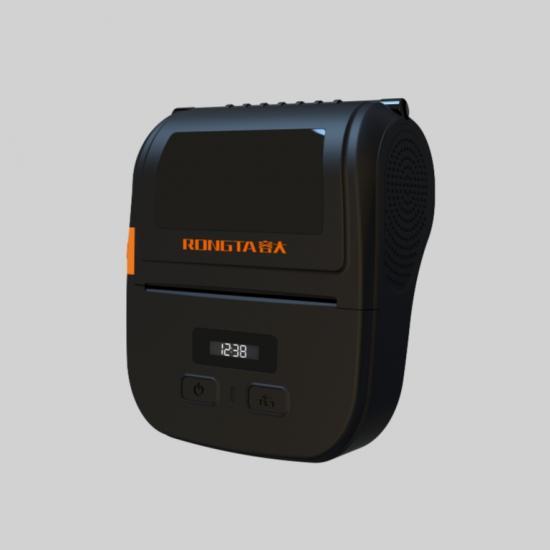

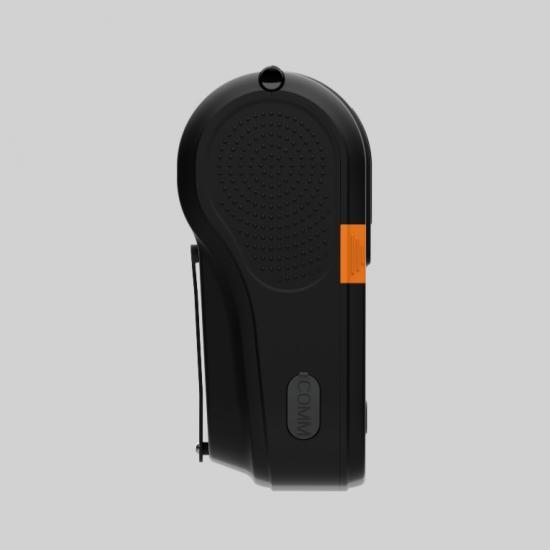

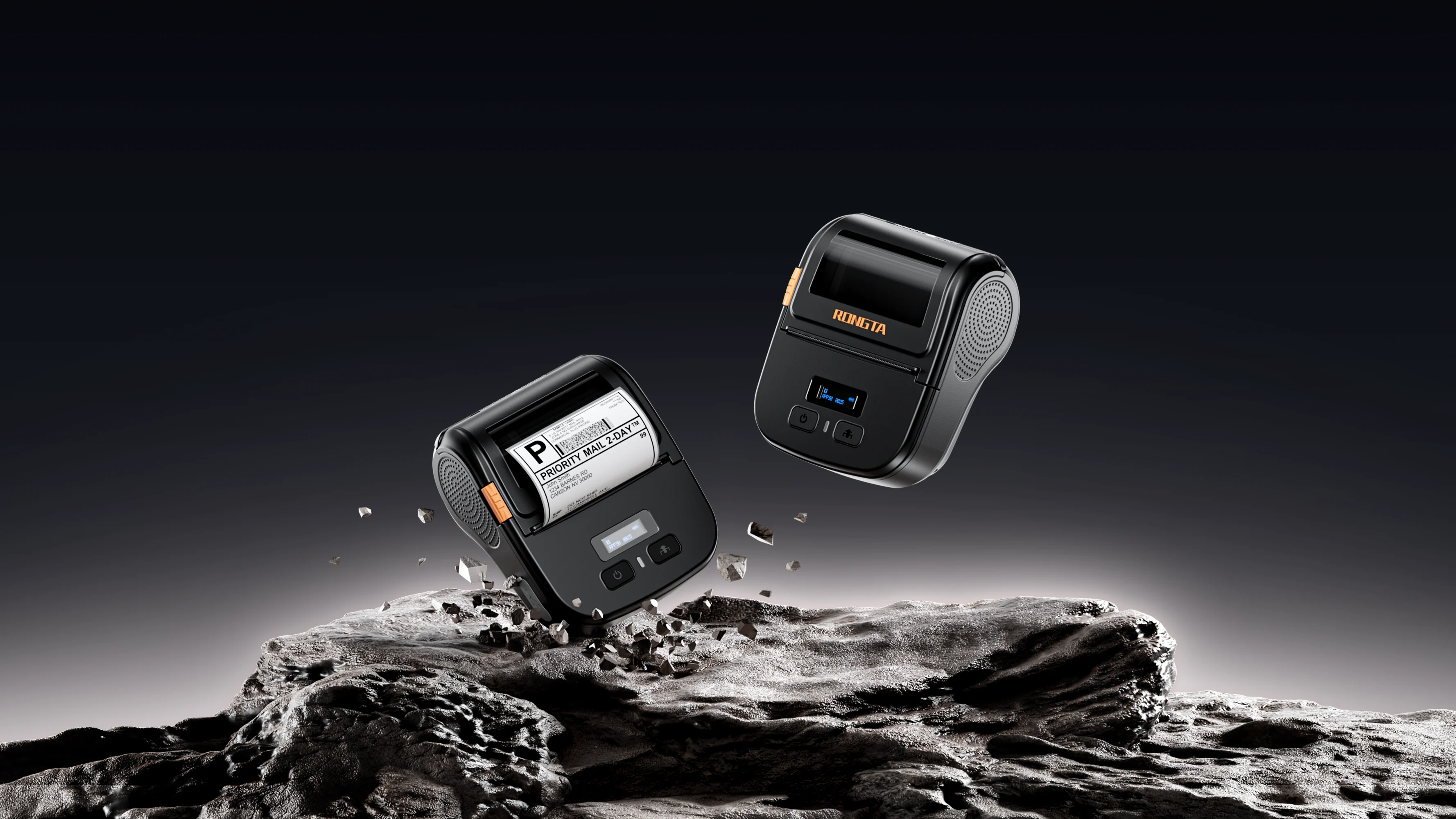

3'' Portable Label Printer

01
02-1

IP54 protection rating

Ensures safer use

Application Scenario

Logistics and transportation, Retail, Manufacturing, Warehousing
09

Logistics and transportation

10

Retail

11

Manufacturing

12

Warehousing

Supports printing on different types of paper

Supports printing on black label paper, sewn label paper, and continuous paper, adapting to various usage scenarios
05-1

Technical Specifications

Project Parameter
Print Direct Thermal
203dpi
3''(72mm)
4ips(100mm/s)
9.84''(250mm)
sensor Seam mark detection, black mark detection, paper shortage detection, cover opening detection, head temperature detection
medium Label paper, black label paper (lower black label), continuous paper
0.87''-3.15'(22-80mm)
0.0023''-0.0071''(0.06mm~0.18mm)
Φ2''(φ50mm(MAX)）
Paper cutting method Paper cutter Manual tearing
processor Double 32bit RISC MCU
storage 8MB
8MB
Function Power button, Feed (setting) button, paper bin cover opening button
none
Buzzer tone support
0.91''OLED screen
Automatically identify paper and reprint when paper is out of stock
Communication interface Bluetooth/USB (Type-C)
programming language TSPL+CPCL+ESC
Built-in fonts ASCll Font: 8x16, 12x24, 12x32, 16x16, 16x48, 24x24, 24x32, 24x48
  Chinese: 24x24, 16x16, 32x32
Code Page CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode Code39, Code39C, CodeI25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
QRCODE, PDF417
software XP, Win7, Win8, Win10, Win11, Mac, IOS, Android
Android, iOS, Windows
APP
power supply AC 100-240V, 50-60Hz
DC 5V/2A
7.4V 2000mAh
3~5 hours (0~40℃)
72H
Environmental parameters Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters 1.5m
IP54
130.5×108×59.5mm
458g
Accessories Power adapter, USB cable, battery, belt clip, USB flash drive, quick installation guide
Labels, belt buckle
standard CCC, CE, FCC, DGM, UKCA, REACH
