ACE M1

2'' Portable Label Printer

01

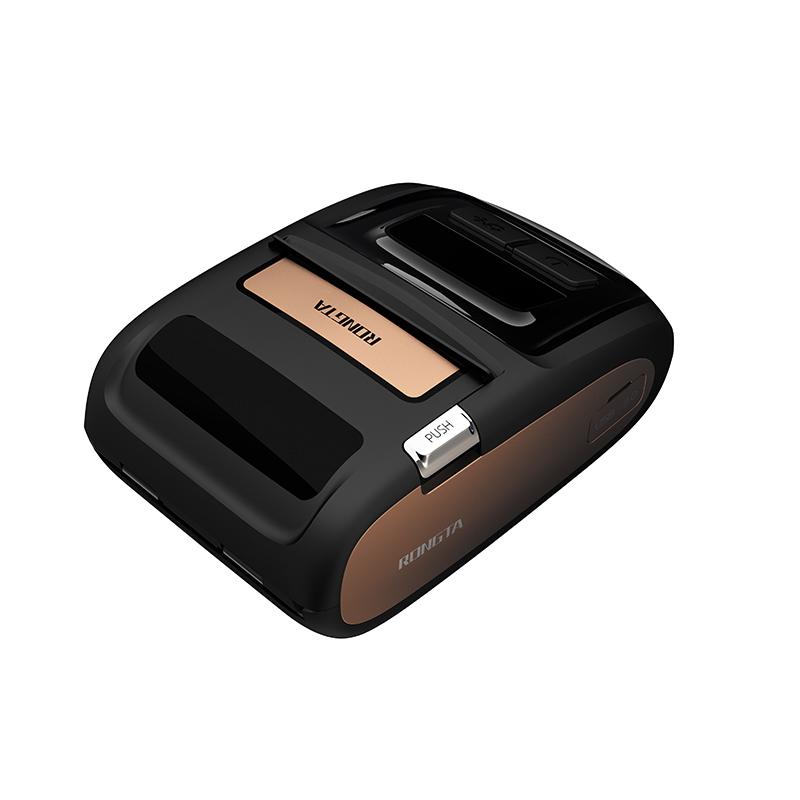

ACE M1 2inch Portable Label Printer Bluetooth Mini

1. Exquisite appearance, compact and portable;
2. Supports receipt and label printing;
3. Cover opening detection, paper shortage detection, prompt to replace paper in time;
4. Supports multiple languages, and prints quickly with APP;
5. Long-lasting battery life, can be used for a long time after charging once;
6. 0.91'' OLED screen display, the device status is clear at a glance.

Application: Small self-employed merchants (supermarkets, clothing, baking, tea, jewelry labels, etc.).

Technical Specifications

Project Parameter
Print Direct Thermal
203dpi
2''(48mm)
2.76ips(70mm/s)
9.84''(250mm)
sensor Seam mark detection, black mark detection, paper shortage detection, cover opening detection, head temperature detection
medium Label paper, black label paper (lower black label), continuous paper
0.87''-2.28''(22-58mm)
0.0023''-0.0071''(0.06mm~0.18mm)
Φ1.57''(φ40mm(MAX))
Paper cutting method Paper cutter Manual tearing
processor 32-bit ARM MCU
storage 2MB
4MB
Function Power button, Feed (setting) button, paper bin cover opening button
none
Buzzer tone
0.91''OLED screen
Reprint if out of paper
Communication interface Bluetooth/USB
programming language TSPL+ESC, CPCL+ESC
Built-in fonts ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
  Chinese: 24x24, 16x16 (optional)
Code Page CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
QRCODE, PDF417
software XP, Win7, Win8, Win10, Win11, Mac, IOS, Android
Android, iOS, Windows
APP
power supply AC 100-240V, 50-60Hz
DC 5V/2A
7.4V 2000mAh
Charging time 4-6 hours
72H
Environmental parameters Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters 1.0m
NA
125×82.2×48.3mm
295g (without paper roll)
Accessories Power adapter, USB cable, quick installation guide, battery
Labels, belt buckles
standard CCC, CE, FCC, SRRC
