RP311

3'' Shipping Label Printer

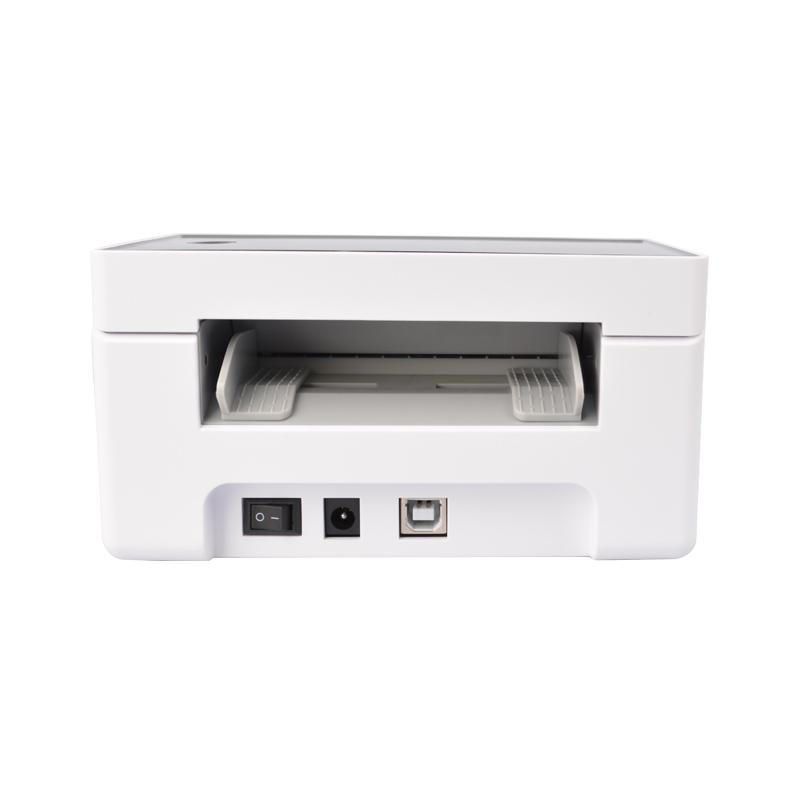

RP311 Shipping Express Waybill Label Printer

1. Paperless design, exquisite and compact;
2. Intelligent detection and positioning, automatic paper feeding and retracting
3. Compatible with multiple label formats, supporting electronic bill printing, label printing, and ticket printing;
4. Supports automatic paper identification, intelligent paper retraction, paper shortage reprinting, bad pixel detection and other functions;
5. Excellent heat dissipation performance, can cope with large printing workload;
6. Fast printing, the printing speed reaches 180mm/s, which greatly saves printing time;

7. Larger storage space.

Application: express logistics, clothing industry, supermarket retail, warehouse management, Restaurant,and tea beverages, etc.

Technical Specifications

Project	Parameter
Print	Line thermal
	203dpi
	3.15''(80mm)
	7 ips(180mm/s)
	0.79''-8.27''(20-210mm)
sensor	Seam mark detection, black mark detection, paper shortage detection, First sheet retreat detection , cover opening detection, Print head temperature detection
medium	Label paper, Black mark paper Bottom black mark, continuous paper, folding paper
	1.18''-3.35''(30-85mm)
	0.0023''-0.0071''(0.06mm~0.18mm)
	NA
	NA
Paper tearing method	Manual tearing
processor	32-bit ARM MCU
storage	2MB
storage	4MB
Function	Rocker switch, Feed button, Paper bin cover opening button
	YES
	Buzzer tone
	/
	Automatic paper recognition, reprinting when out of paper, first sheet return, bad pixel detection
Communication interface	U/BU
programming language	TSPL+ESC
Built-in fonts	ASCll Font, 12x24, 9x17, 8x12, 12x20, 16x24, 24x32, 36x48 14x19, 14x25, 21x27
	GB18030: 24×24, 16x16
Code Page	CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
Barcode	QRCODE, PDF417 (optional)
software	XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS
	Android, iOS, Windows
	Barcode label editing software (PC), APP
Power adapter	Input: AC 100-240V, 50/60Hz
Power adapter	Output: DC 24V/2.5A
Environmental parameters	Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Environmental parameters	Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters	159mm83mm81mm
Physical parameters	0.522kg
Accessories	Power cord, USB data cable, power adapter, quick installation guide
Accessories	External bracket
standard	CCC, FCC, CE, UKCA
