RPP320

3'' Portable Label Printer

01

RPP320 3inch Portable Label Printer Bluetooth

1. Support various smart terminals and PDA printing;

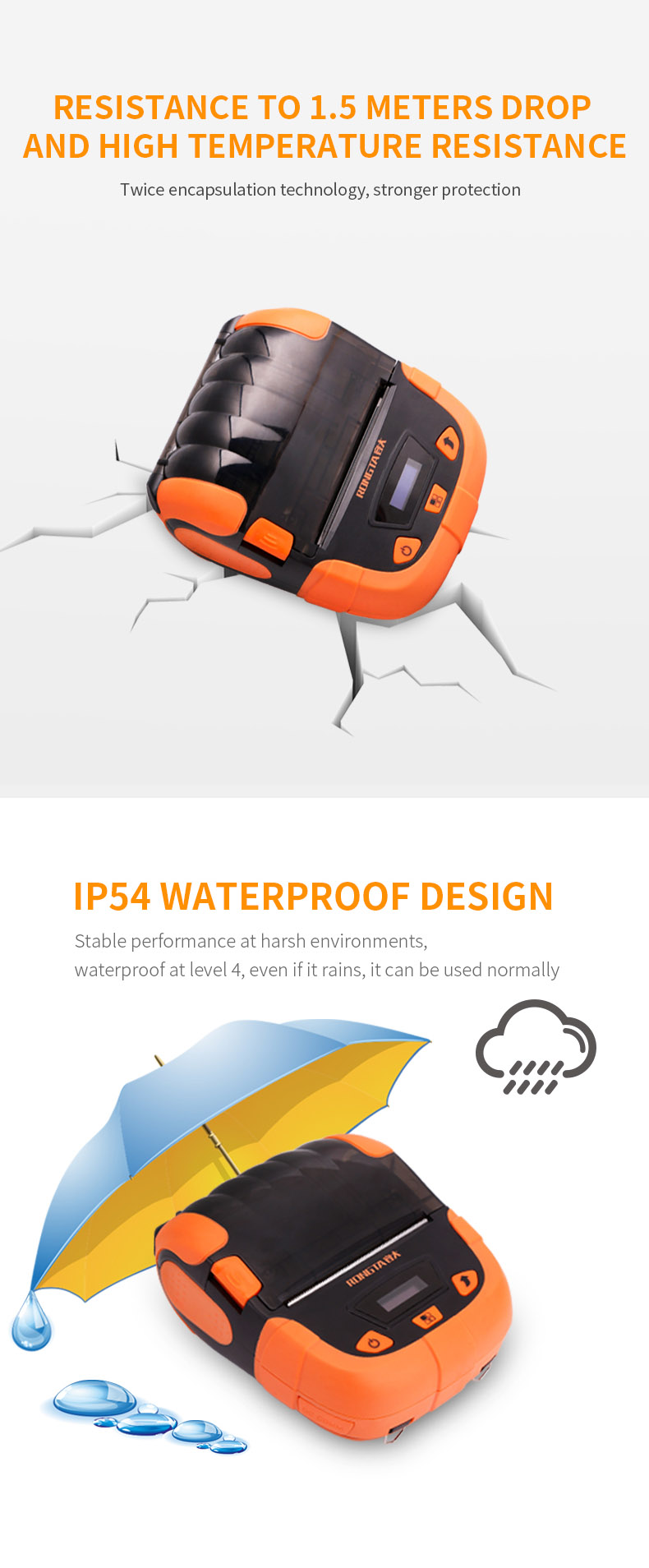

2. Good anti-fall performance, anti-fall 1.2 meters;
3. Compatible with black label paper, seam label paper, continuous paper;

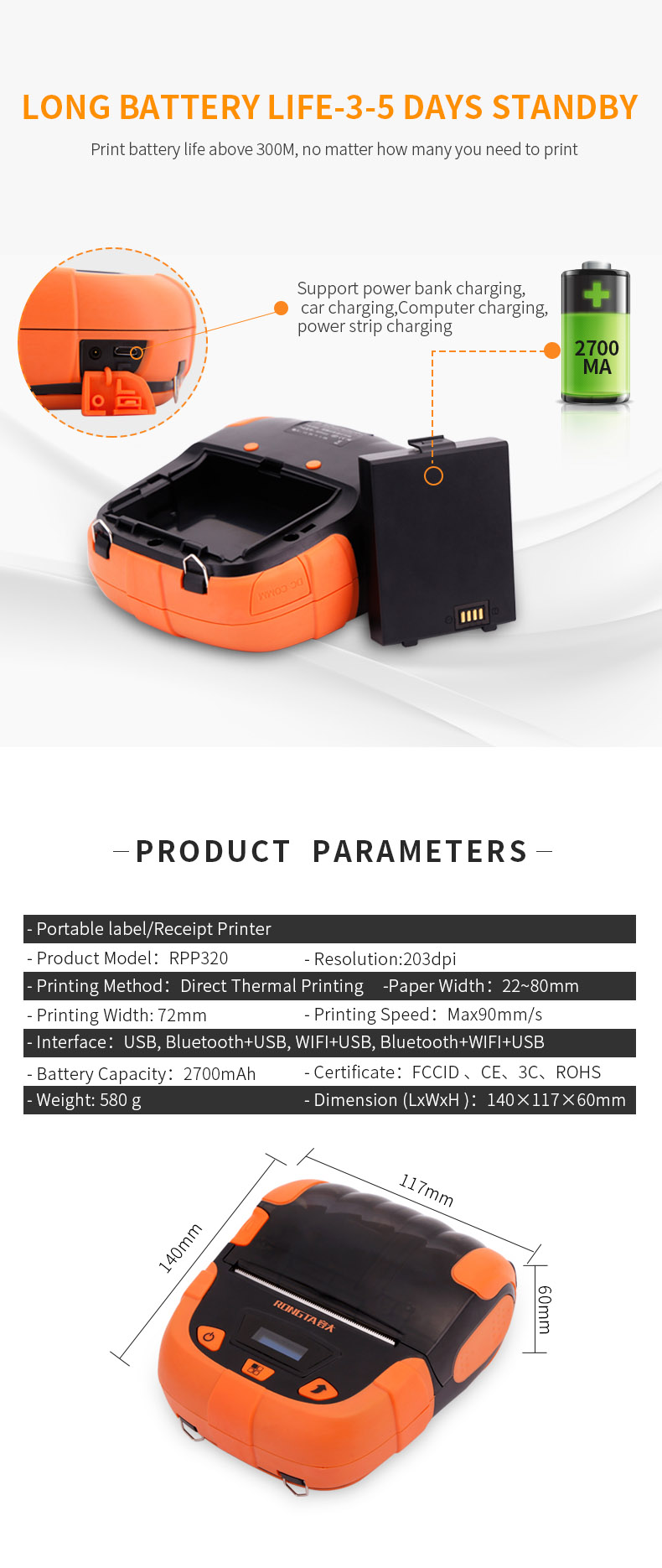

4. Long-lasting battery life, can be used for a long time after charging once;
5. 0.91'' OLED screen display, the device status is clear at a glance;
6. Large paper bin capacity, Φ50mm (MAX).

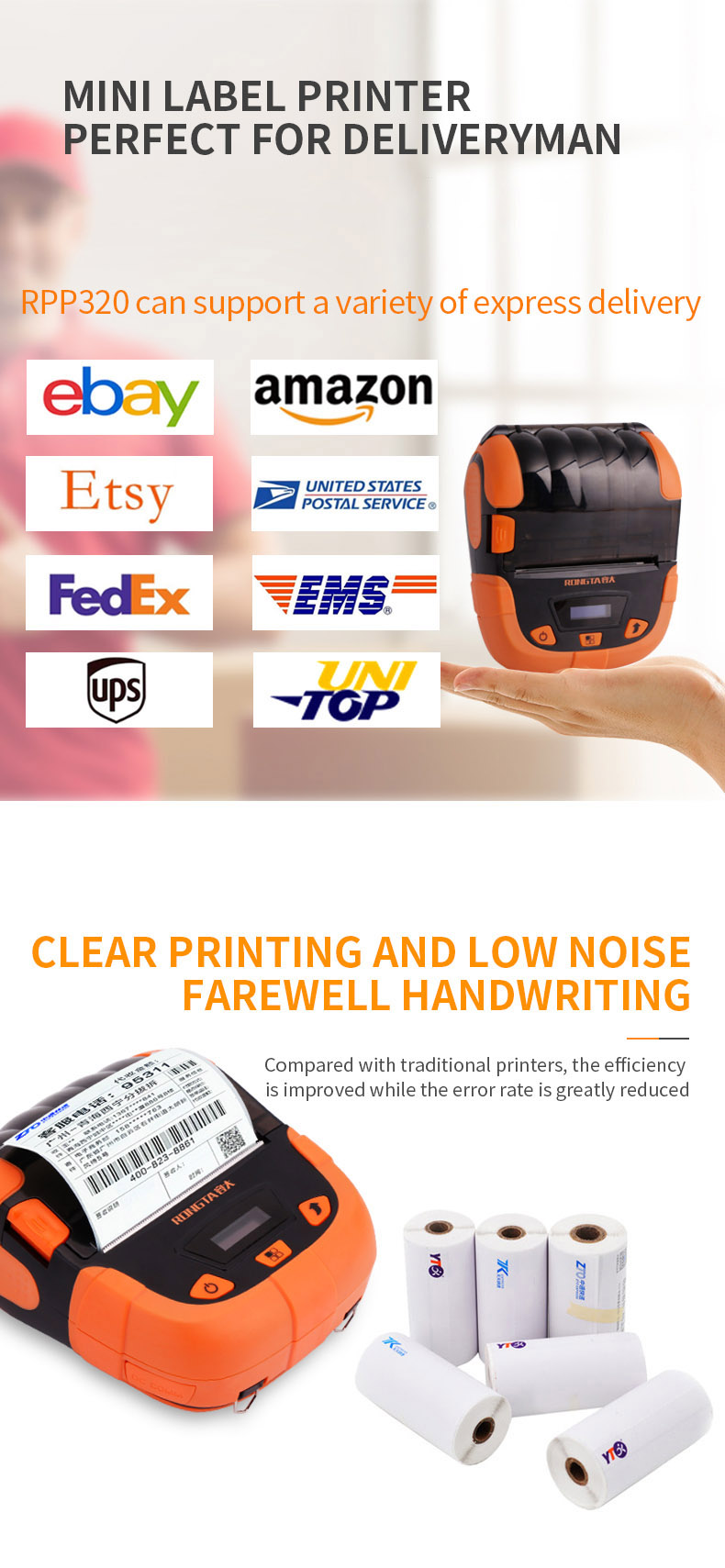

Application: label and ticket printing for logistics and transportation, retail, manufacturing, warehousing and other application scenarios.



Technical Specifications

Project Parameter
Print Direct Thermal
203dpi
3''(72mm)
3.54ips(90mm/s)
9.84''(250mm)
Sensor Seam mark detection, black mark detection, paper shortage detection, cover opening detection, head temperature detection
Medium Label paper, black label paper (lower black label), continuous paper
0.87''-3.15'(22-80mm)
0.0023''-0.0071''(0.06mm~0.18mm)
Φ2''(φ50mm(MAX))
Paper cutting method Paper cutter Manual tearing
Processor 32-bit ARM MCU
Storage 4MB
 4MB
Function Power button, setting button, feed button, paper bin cover opening button
none
Buzzer tone
0.91''OLED screen
Automatically identify paper and reprint when paper is out of stock
Communication interface Bluetooth、USB/Bluetooth、USB、Wifi (Type-C)
Programming language TSPL+ESC, CPCL+ESC
Built-in fonts ASCll Font: 8x16, 12x24, 12x32, 16x16, 16x48, 24x24, 24x32, 24x48
  Chinese: 24x24, 16x16
Code Page CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
QRCODE, PDF417
Software XP, Win7, Win8, Win10, Win11, Mac, IOS, Android
Android, iOS, Windows
APP
Power supply AC 100-240V, 50-60Hz
DC 12V/1A
7.4V 2700mAh
3~5 hours (0~40℃)
72H
Environmental parameters Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters 1.2m
NA
140×118×62mm
430g (without paper roll)
Accessories Power adapter, USB data cable, quick installation guide, warranty card, battery, label paper
Belt Buckles
Standard CCC, CE, FCC, ROHS, DGM, UKCA
