ACE H2

80mm Thermal Receipt Printer

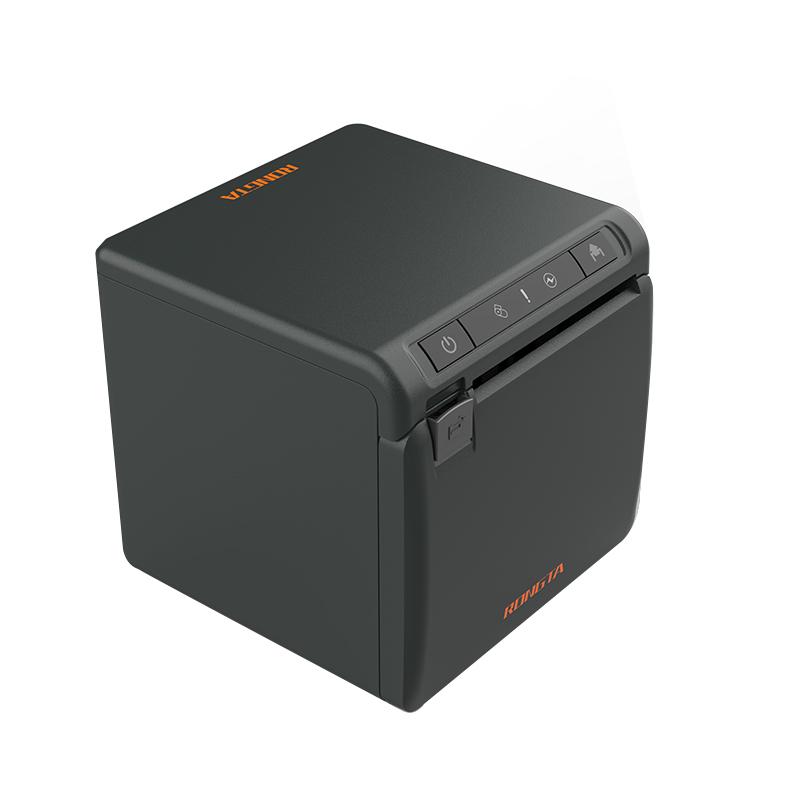

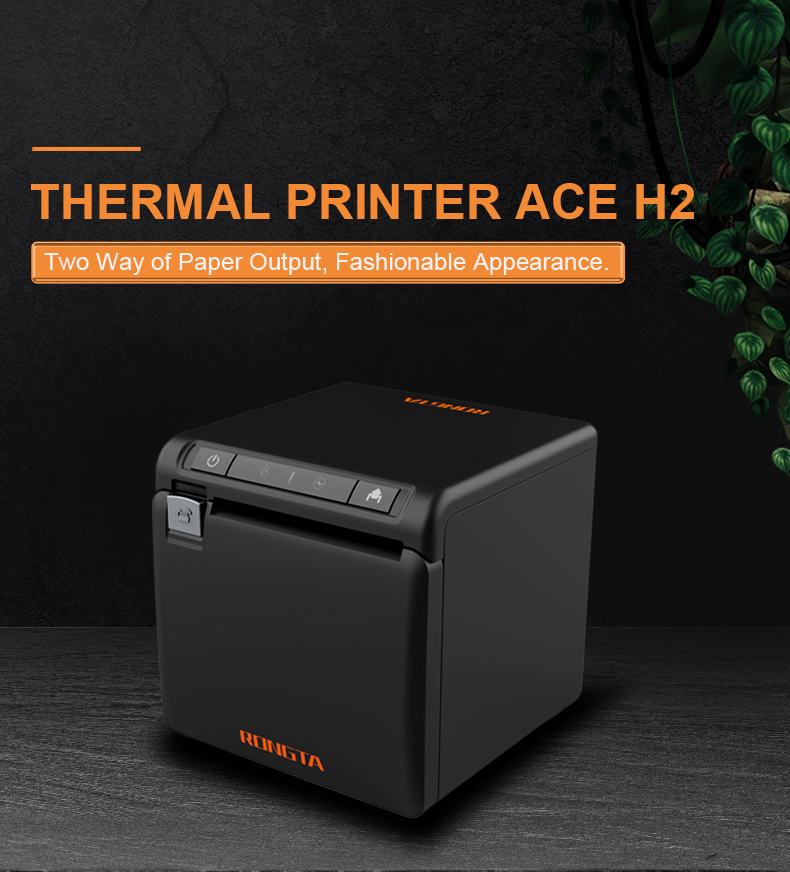

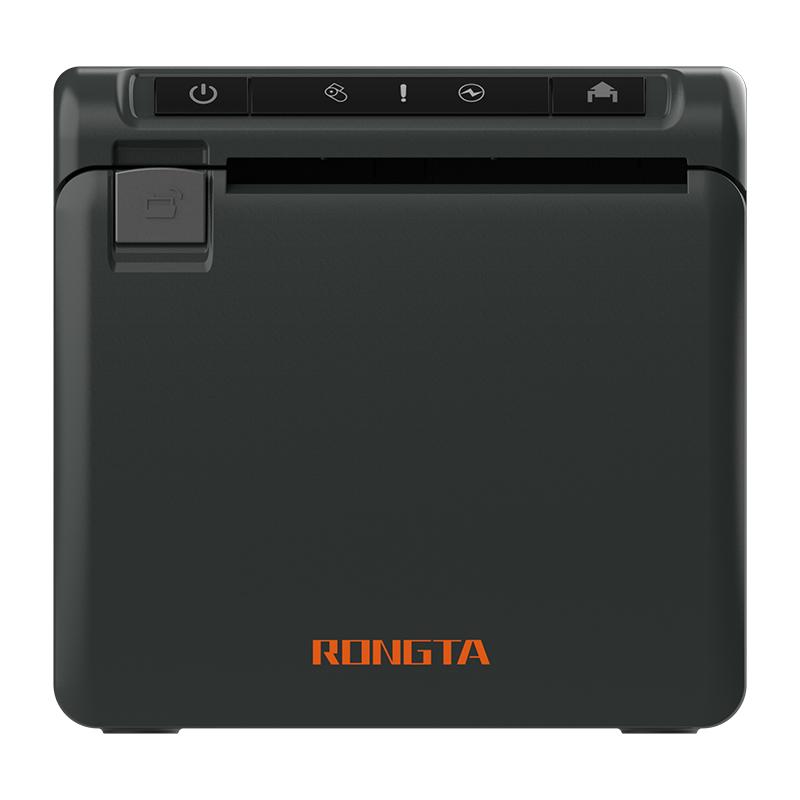

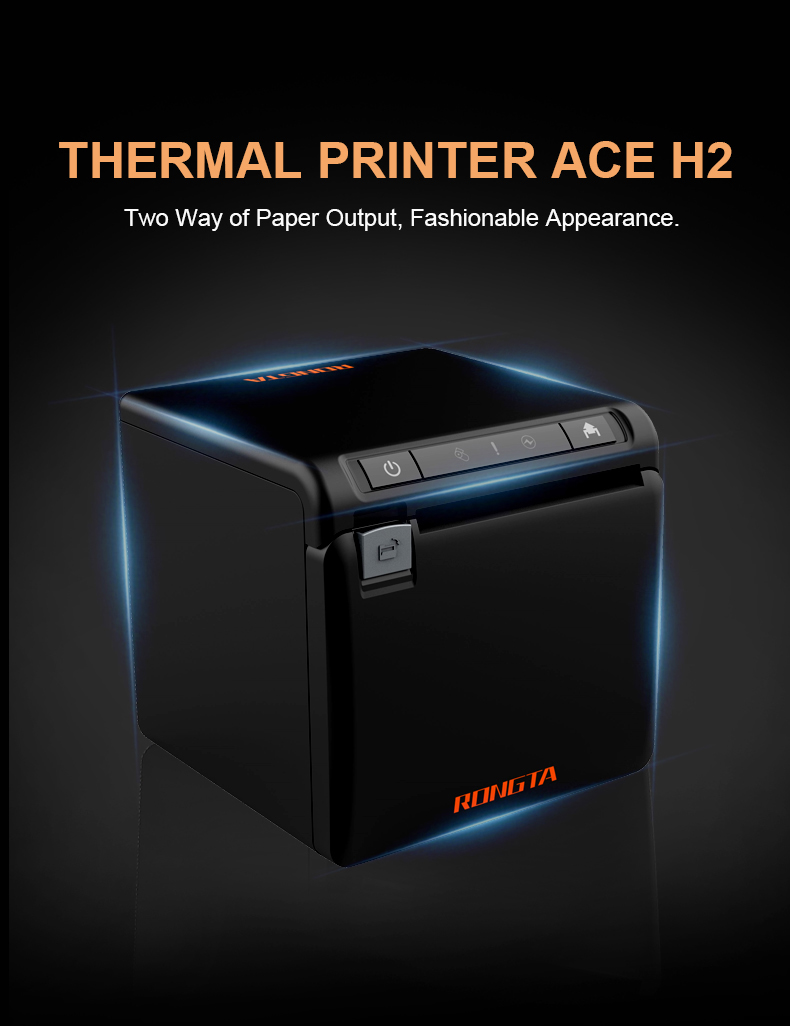

ACE H2 80mm Thermal Receipt Printer

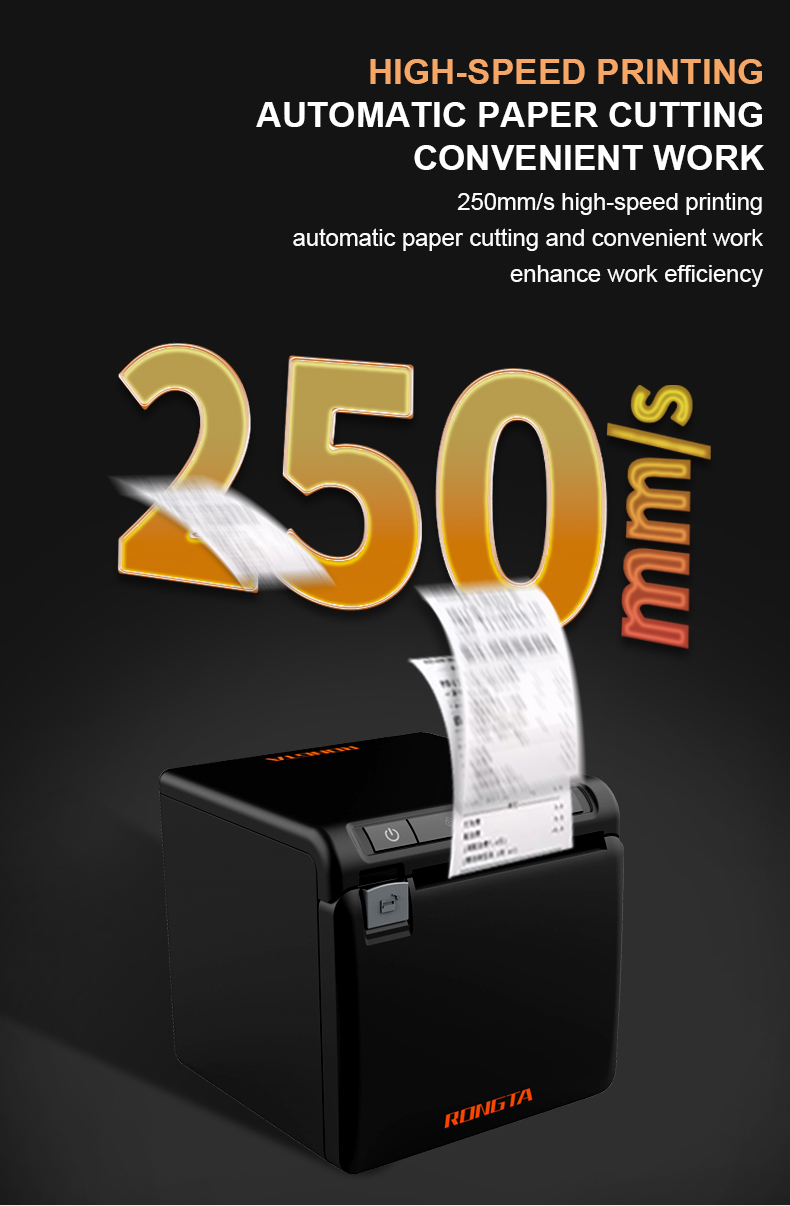

1. High-speed printing, Automatic paper cutting, Convenient work

250mm/s high-speed printing, automatic paper cutting and convenient work, enhance work efficiency.

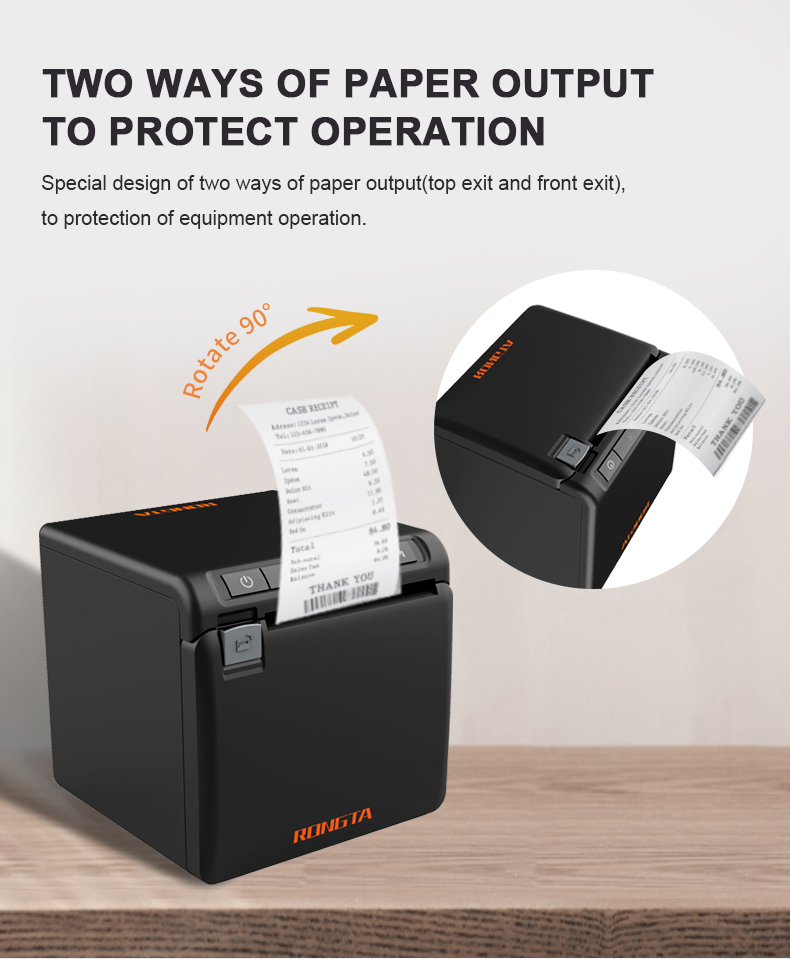

2. Two ways of paper output to protect operation

Special design of two ways of paper output(top exit and front exit), to protection of equipment operation.

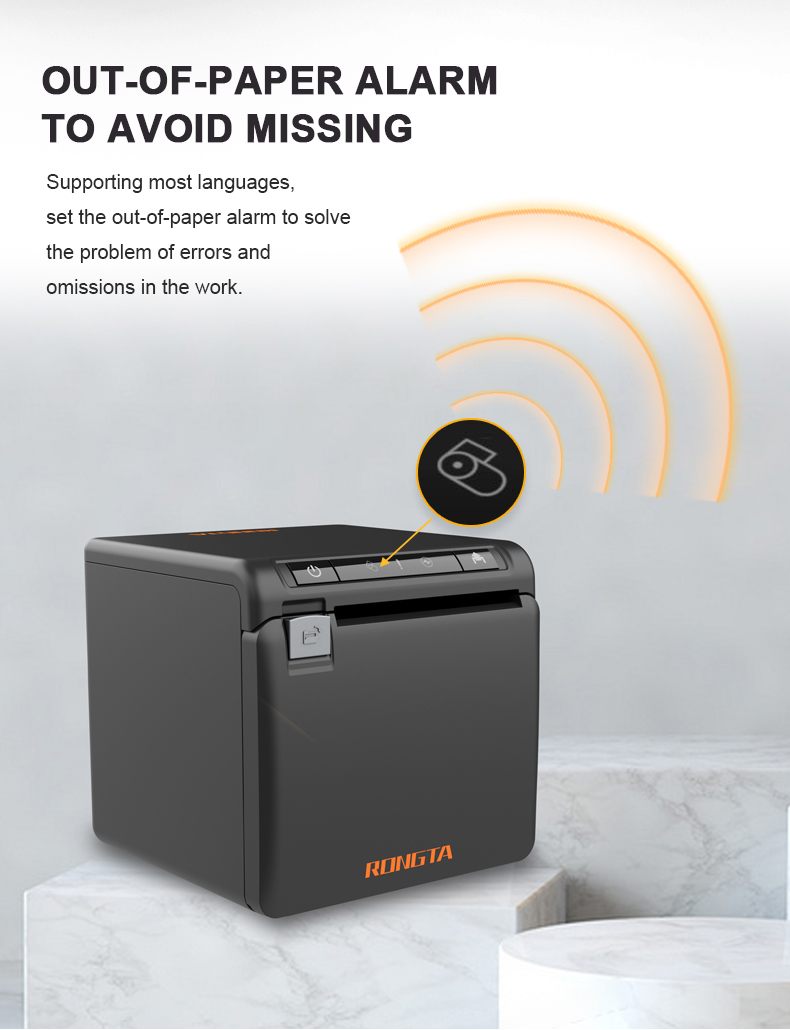

3. Out-of-paper alarm to avoid missing

Supporting most languages, set the out-of-paper alarm to solve the problem of errors and omissions in the work.

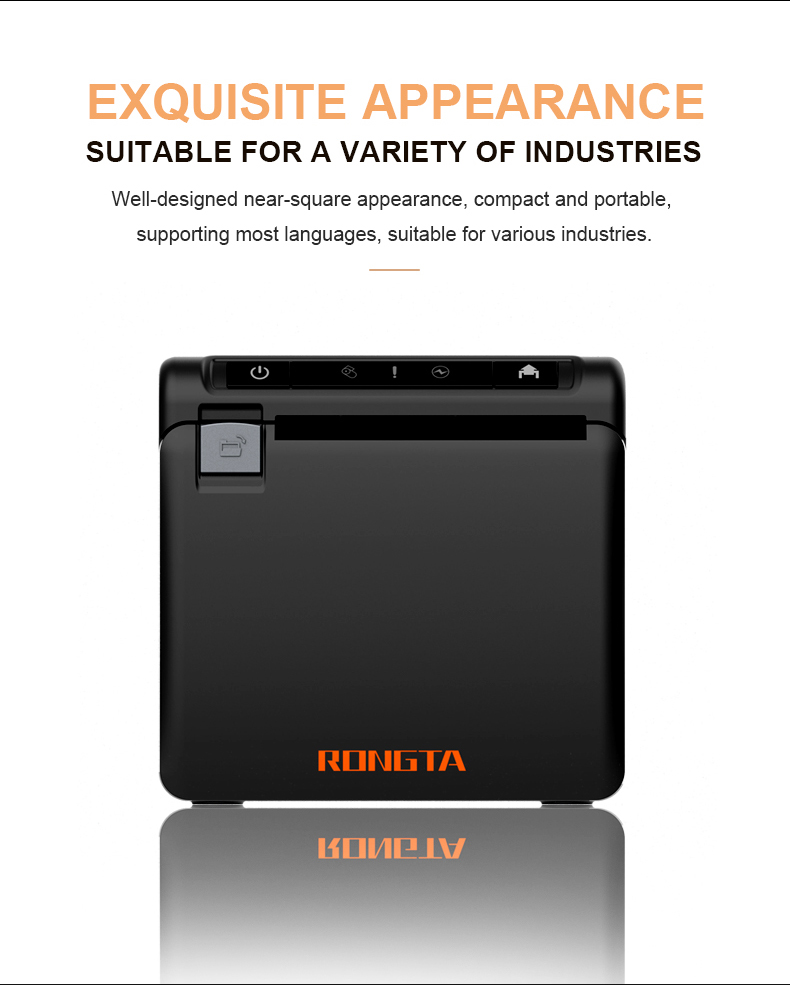

4. Exquisite appearance, suitable for a variety of industries

Well-designed near-square appearance, compact and portable, supporting most languages, suitable for various industries.

5. Scenarios

It is applicable to all industries such as supermarkets, restaurants and covers all kinds of mobile cash payments and self-service payments.

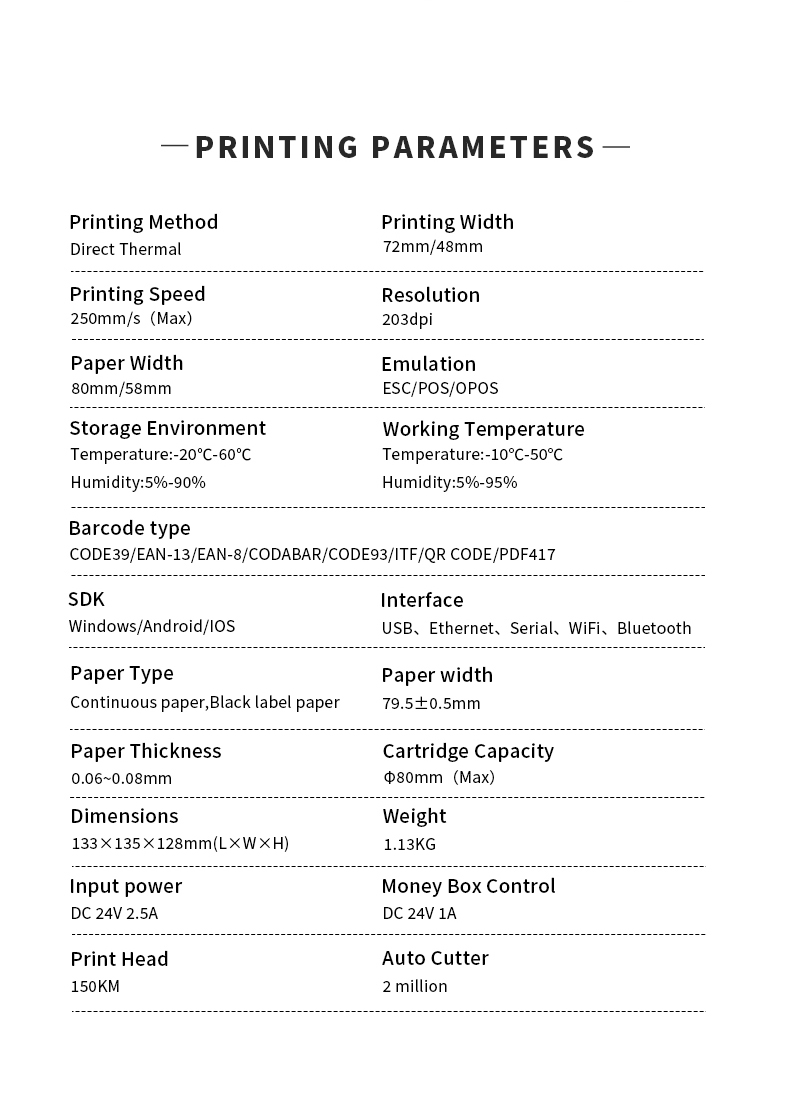

Technical Specifications

Product Model	ACE H2
Product Introduction	1. Small and stylish appearance, easy to place 2. Front and top paper output, flexible choice 3. Support paper saving adjustment function 4. High-speed printing, automatic paper cutting
Printing Method	Driect Thermal
Print Width	72mm or 48mm (compatible with 58mm paper)
Print Speed	250mm/s (Max)
Resolution	203dpi
Operating Temperature	0～45°C
Operating Humidity	10%～90% no condensation
Storage Temperature	-20°C～60°C
Storage Humidity	10%～90% (except paper rolls)
Software	Print command: ESC/POS
	Driver support: Windows/Linux Cups/MacOs/JavaPos/OPOS
	SDK support: Windows/Android/IOS
Interface	USB+Serial+Ethernet/USB+Ethernet/USB (support Bluetooth, WiFi optional customization)
Paper specifications	Paper type: Thermal continuous paper, black mark paper
	Paper width: 79.5±0.5mm
	Paper thickness: 0.06~0.08mm
	Paper roll diameter: Φ80mm (Max)
Product Specifications	Dimensions: 133×135×128mm (L×W×H)
Weight	Weight: 1.13KG
Power	Input power: DC 24V 2.5A
Cash Drawer Control	Cash drawer control: DC 24V 1A
Print Head Life	150KM
Automatic Paper Cutter Life	2 million paper cuts
