RLS1315/RLS1330

Hanging Label Printing Scale

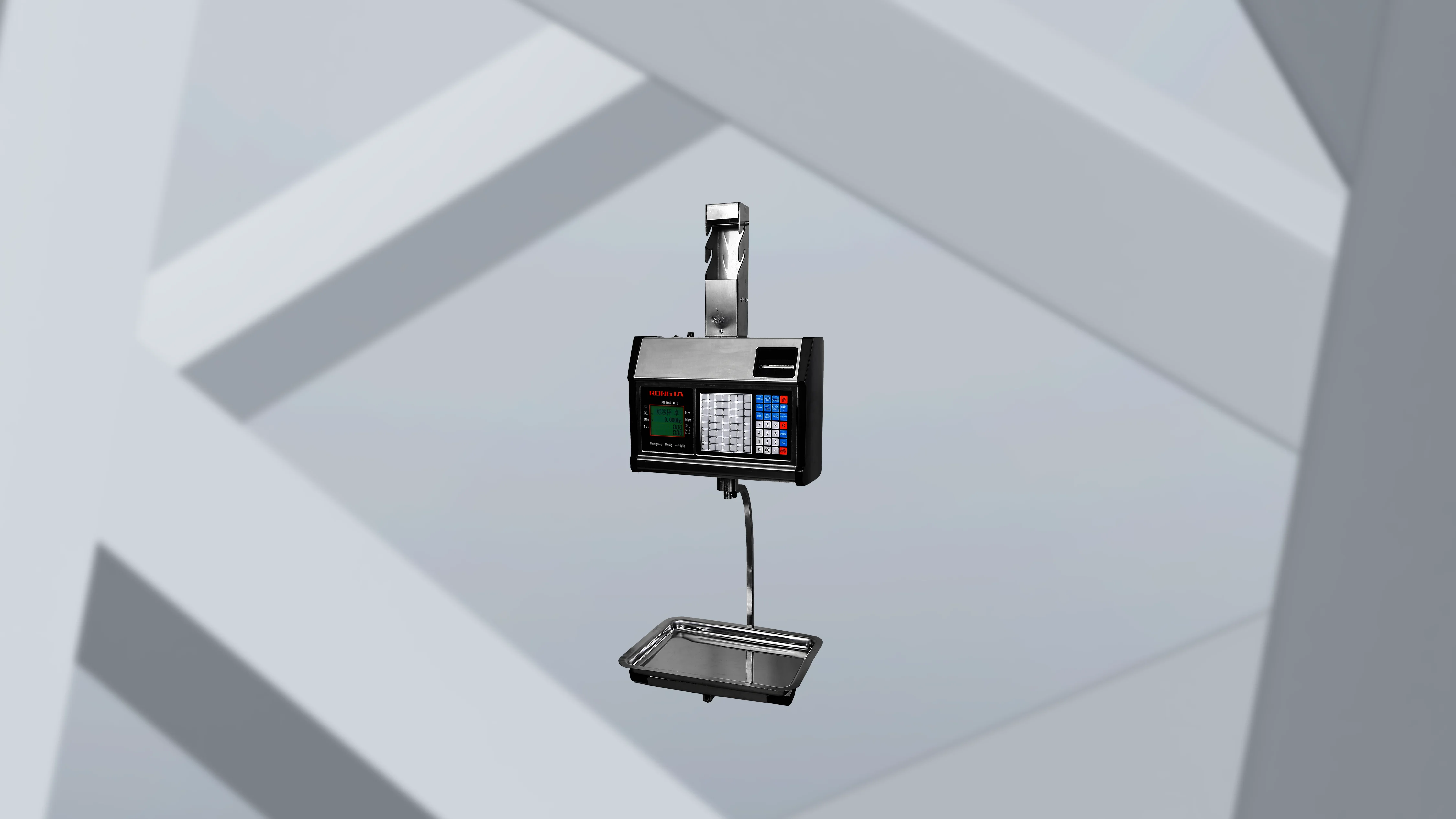

RLS1315/RLS1330 Label Scale

1. Simple and elegant appearance
2. Support label and receipt printing
3. Waterproof, moisture-proof and insect-proof design
4. Drawer-type printing module design, easy paper loading operation
5. Printing module dual motor design, durable

Technical Specifications

Capacity	Max capacity	6kg/15kg 15kg/30kg
	Min capacity	40g 100g
	Interval	2/5g 5/10g
	Accuracy class	III
	Display	NA
Basic	COG	LCD 88X128
	SDRAM	8MB
	FLASH	16MB
	Ethernet	1 x RJ45/1 x RS232/1 x AC Jack
	Input	AC100V-240V 50/60Hz 1A
	Buttons	Hotkeys：56*2；Preset keys：28
	Notification	Buzzer
	Dimension	388(L) × 343(W) ×985(H)mm
Communication	Ethernet	TCP/IP 100M
Communication	Wi-Fi	IEEE 802.11 b/g/n，2.4GHz(Optional)
Printer	Printing	Thermal print
	Print width	MAX 56mm
	Print speed	90 mm/s
	Printer resolution	203 DPI
	Paper out	Auto peel off
	Barcode format	2/5 interleaved, 128 、EAN13、GS128
Reliability Requirements	Certification	Type evaluation
Reliability Requirements	Implementation standards	GB/T 7722-2020
Operation Environment	Operating temperature	0℃ ～+40℃
	Operating humidity	20%～85%
	Storage temperature	-20℃～+60℃
	Operating temperature	5%～95%
