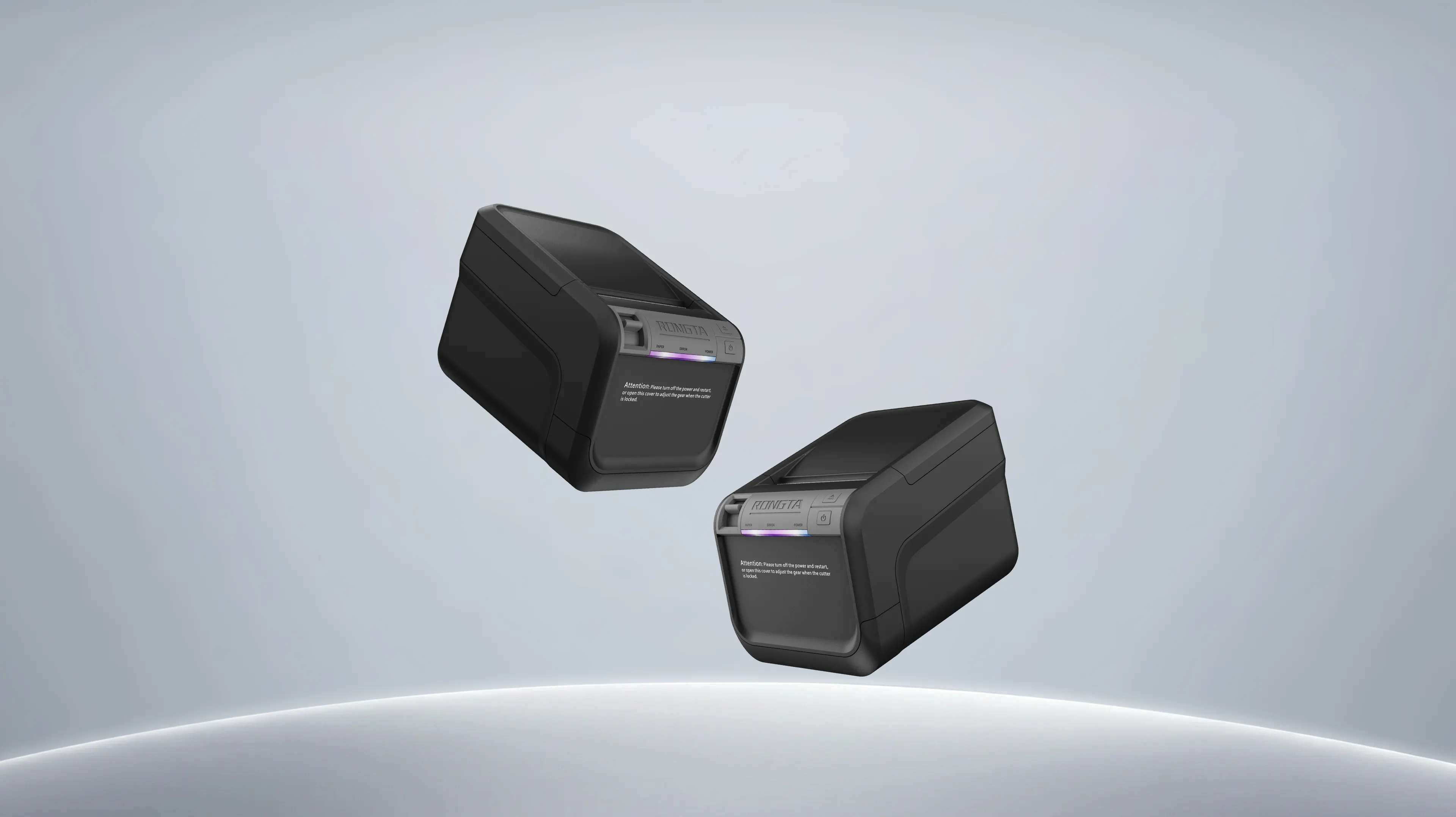

slide1
Get A Quote

ACE V1S

 3'' Linerless Label Printer

01

ACE V1S Linerless Label Printer for Logistics



1. Support linerless paper printing, energy saving and environmental protection, improve quality and efficiency;

Energy saving and environmental protection, support linerless paper printing, reduce paper waste; printing speed can reach 6.7ips (170mm/s), shorten printing time; no need to peel off the liner, improve printing efficiency;

2. Special anti-stick material of the machine body, avoiding the problem of paper sticking to the machine body effectively;

The machine body is made of special material for anti-stick treatment, which can effectively prevent the paper from sticking to the machine body when printing linerless labels; ensure smooth printing operations and effectively improve the practicality and user experience of the equipment;

3. Compared to common label printers, more labels can be printed per roll of paper;

Supports printing of labels of various lengths. Compared withcommonlabel paper, more labels can be printed per roll, which greatly reduces the frequency of changing paper rolls and further improves work efficiency and convenience;

4.  Adapt to connect to various terminals to meet the diverse system requirements of different customers;

Fully considering the diversity and flexibility of customer needs, supporting USB, serial port, Ethernet port, cash register interface, becoming an ideal choice in various application scenarios;

5. Supports automatic half-cut cutter to effectively prevent labels from falling into the machine;

Equipped with automatic half-cut cutter, it simplifies the paper tearing process, ensures label quality, reduces maintenance costs, and improves production efficiency.



Technical Specifications

Printing Printing Method Thermal
Resolution 203dpi
Maximum Print Width 3.15''(80mm)
Maximum Printing Speed 6.7ips(170mm/s) (MAX)
Print Length 0.79''-9.84''(20mm-250mm)
Sensor Seam mark detection, black mark detection, paper removal detection, paper shortage detection, cover opening detection, head temperature detection
Medium Type Linerless Paper, Continuous Paper, Black Mark Paper (lower black mark)
Width (Label + Backing Paper) 1.57''-3.15''(40-80mm)
Thickness (Label + Backing Paper) 0.0023''-0.0071''(0.06-0.18mm)
Maximum Paper Roll Diameter φ3.15''(φ80mm)
Reel Inner Diameter Label paper φ0.5'' (φ12.7mm) (MIN); other types of paper are not limited
Paper Tearing Method Automatic cutter
Processor 32-bit ARM MCU
Storage RAM 8MB
FLASH 4MB
Function Button Power switch, power button, FEED button
Indicator Lights Support
Buzzer Buzzer tone
Other Automatically identify paper, detect bad dots, and reprint when paper is out of stock
Communication Interface USB +serial port+ Ethernet port+ cash register interface
programming Language TSPL
Built-in Fonts ASCll Font:5x9,7x11,10x18,15x28,13x26,40x60,13x21,10x12,14x20,16x24,24x32,36x48,14x19,21x27,14x25,12x24
Chinese: 24×24, 16x16
Code Page Extended Character Table CP437,CP850,CP852,CP860,CP863,CP865,CP866, WPC1250,WPC1251,WPC1252,WPC1253,WPC1254
Barcode One-Dimensional Code Code39,Code39C, I25, Code93,ITF25,EAN128,Code128, Codabar, EAN-8,EAN8+2,EAN8+5, EAN-13,EAN13+2,EAN13+5, UPC-A,UPCA+2,UPCA+5, UPC-E,UPCE+2,UPCE+5 MSIC,ITF14,EAN14,Code11
  QRCODE, PD417 (optional)
software Drive XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS
SDK Android, iOS, Windows
Label Design Barcode label editing software (PC)
Power Adapter Input: AC 100-240V, 50/60Hz
Output: DC 24V/2.5A
Environmental Parameters Work Temperature: 32-122℉(0-50℃); Humidity: 20-90% (non-condensing)
Storage Temperature: -4-131℉(-20-55℃); Humidity: 5-95% (non-condensing)
Physical parameters Dimensions (Length, Width, Height) 146*196*140mm
Weight 1.42kg
Accessories Standard Power adapter, USB cable, serial cable, quick installation guide, power cable (international)
