R22

Smart Label Printer

01

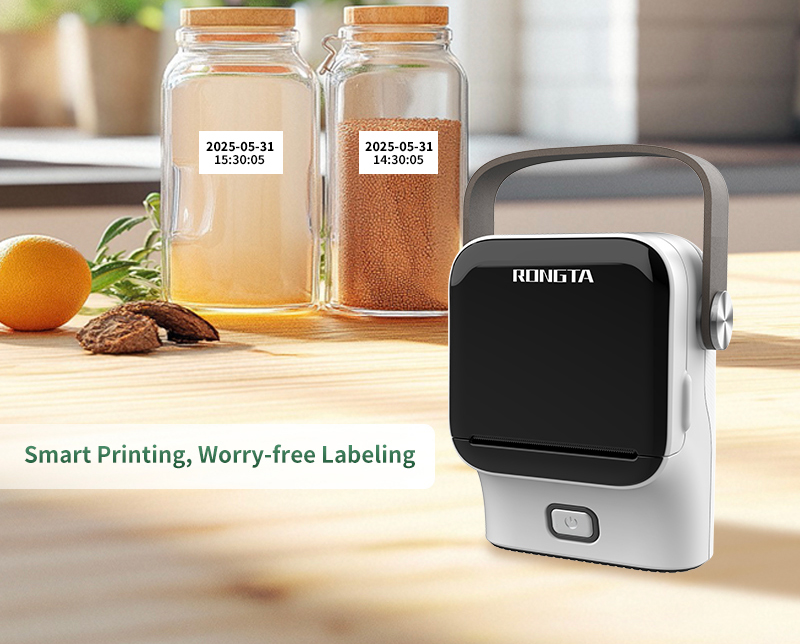

R22 Smart Label Printer
1.Supports printing labels of various sizes, suitable for label printing in various industries.

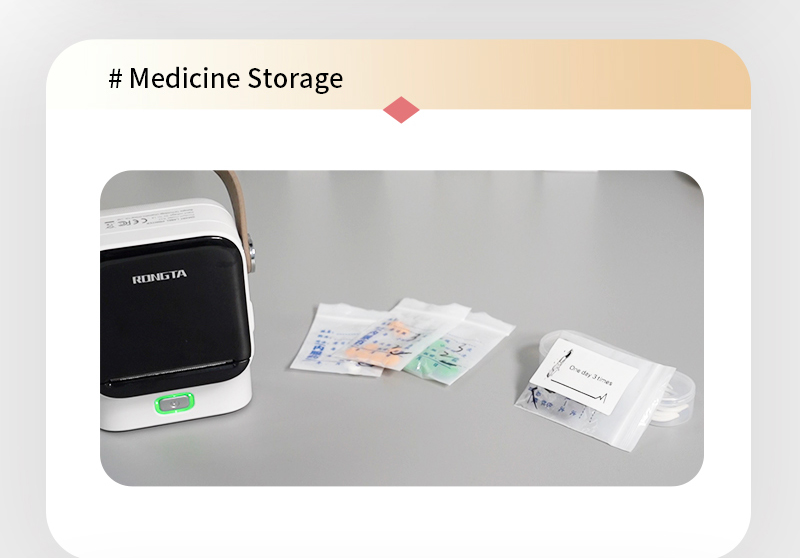

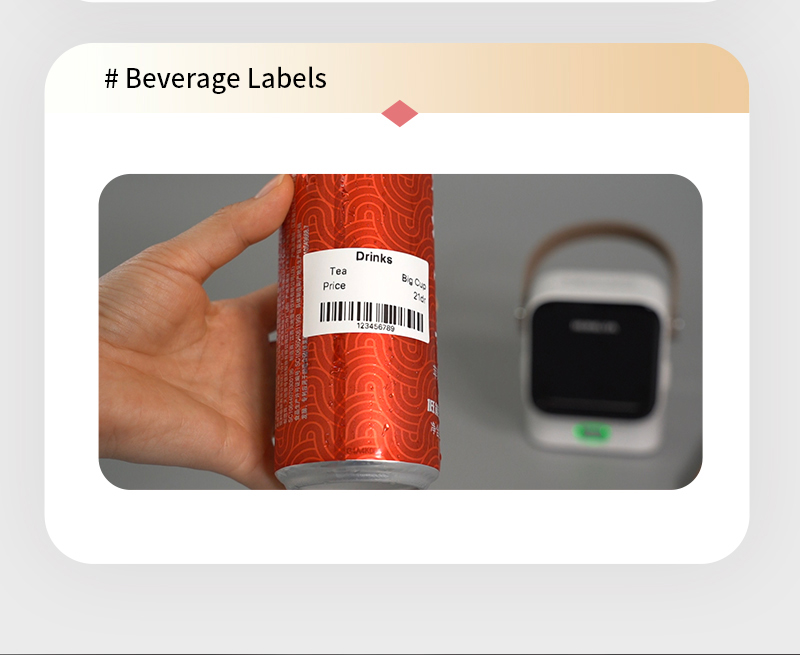

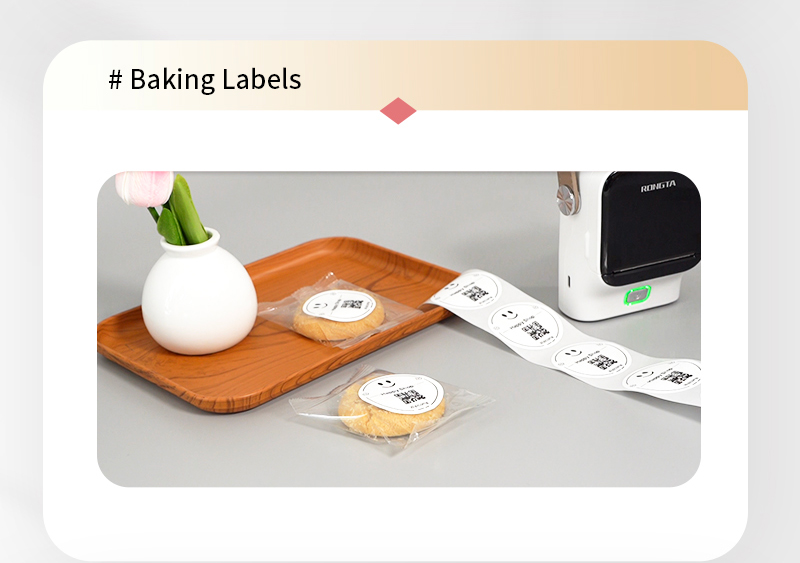

Diverse usage scenarios: home storage, baking marking, supermarket price tags, switch markings, office supplies classification, jewelry labels and more label printing can all be done with one machine;

2.Paper replacement reminder function, NFC automatic identification of consumables, simpler operation.

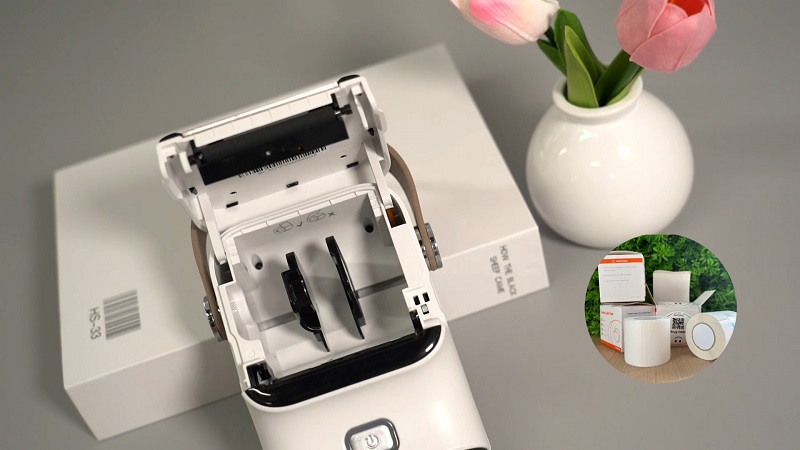

Equipped with sensors such as cover opening detection and paper out detection to automatically remind you to change paper; the NFC function automatically identifies consumables and eliminates the need to set the paper size; the paper return function saves consumables;

3.Small size, does not take up space, easy to carry.
It has an exquisite design and is visually appealing. Its size is about the same as a water cup and it can be placed anywhere without taking up space. It has a long battery life and can be used for a long time on a single charge, making it convenient to carry around when going out;

4.APP Bluetooth connection, no space restrictions on printing.

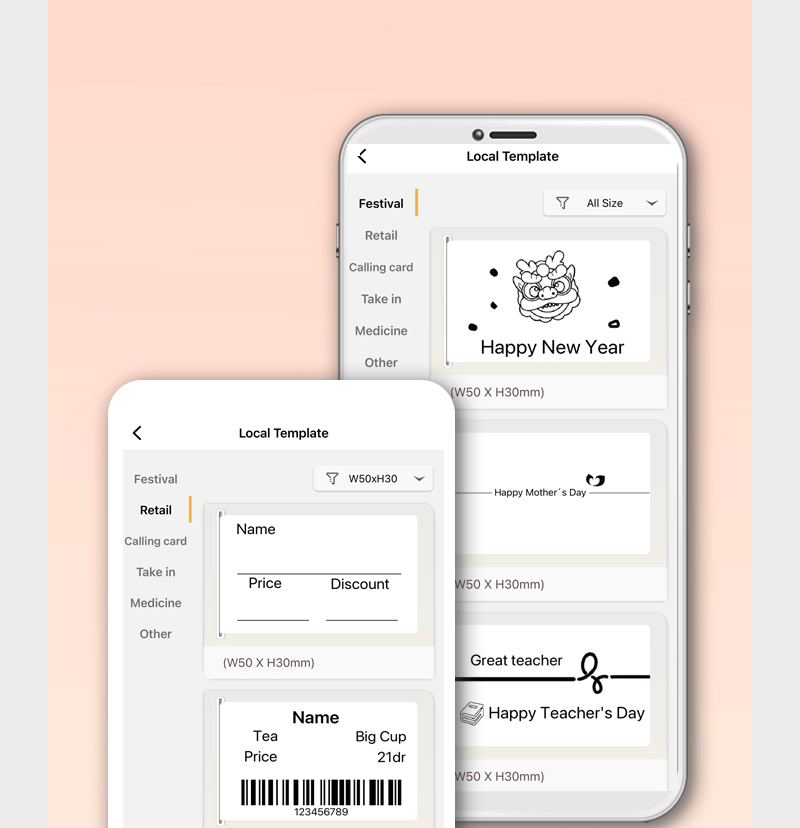

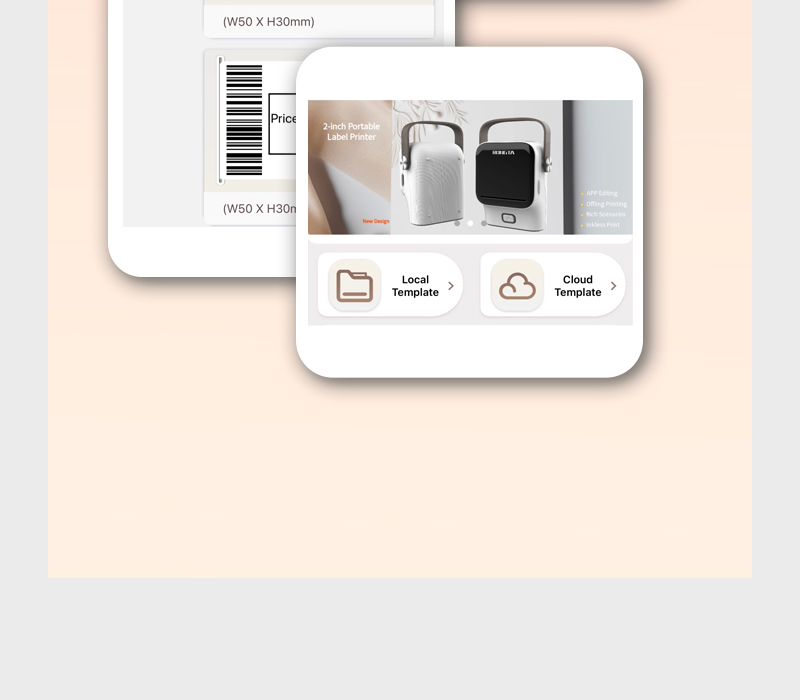

With the matching APP, it has built-in multiple templates and is equipped with rich editing functions. It can print various types of labels such as graphics and text to meet the needs of different users.

Technical Specifications

Project Parameters parameter
Print Printing method Thermal
Resolution 203dpi
Maximum print width 2''(48mm)
Maximum printing speed (12.5% printing rate) 2ips(50mm/s)
Maximum print length No restrictions
sensor Cover opening detection, seam mark detection, paper shortage detection, head temperature detection
medium Type Label paper, continuous paper
Width (label + backing paper) 0.63''-2.13''(16~54mm)
Thickness (label + backing paper) 0.0023''-0.0071''(0.06mm~0.18mm)
Paper roll diameter 50mm max
Paper cutting method Paper cutter Manual tearing
processor 32-bit ARM, MCU
storage RAM 64KB
FLASH 1MB
Function button Power button (Feed button)
Indicator Lights Three-color light
buzzer Buzzer tone
Charging port USB (Type-C)
Communication interface Bluetooth
software Label design APP
power supply Input DC 5V/1A
Battery 1500mAh Li-ion battery
Charging time 3.5 hours
Battery life 4 hours
Environmental parameters Work Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
storage Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
  Machine size (length, width and height) 117.5x97.5x63mm (without leather strap)
weight 242g
Accessories Standard USB cable, quick installation guide, 1 roll of label paper (trial pack)
