Get A Quote

RLS1000/RLS1100A

Label Printing Scale

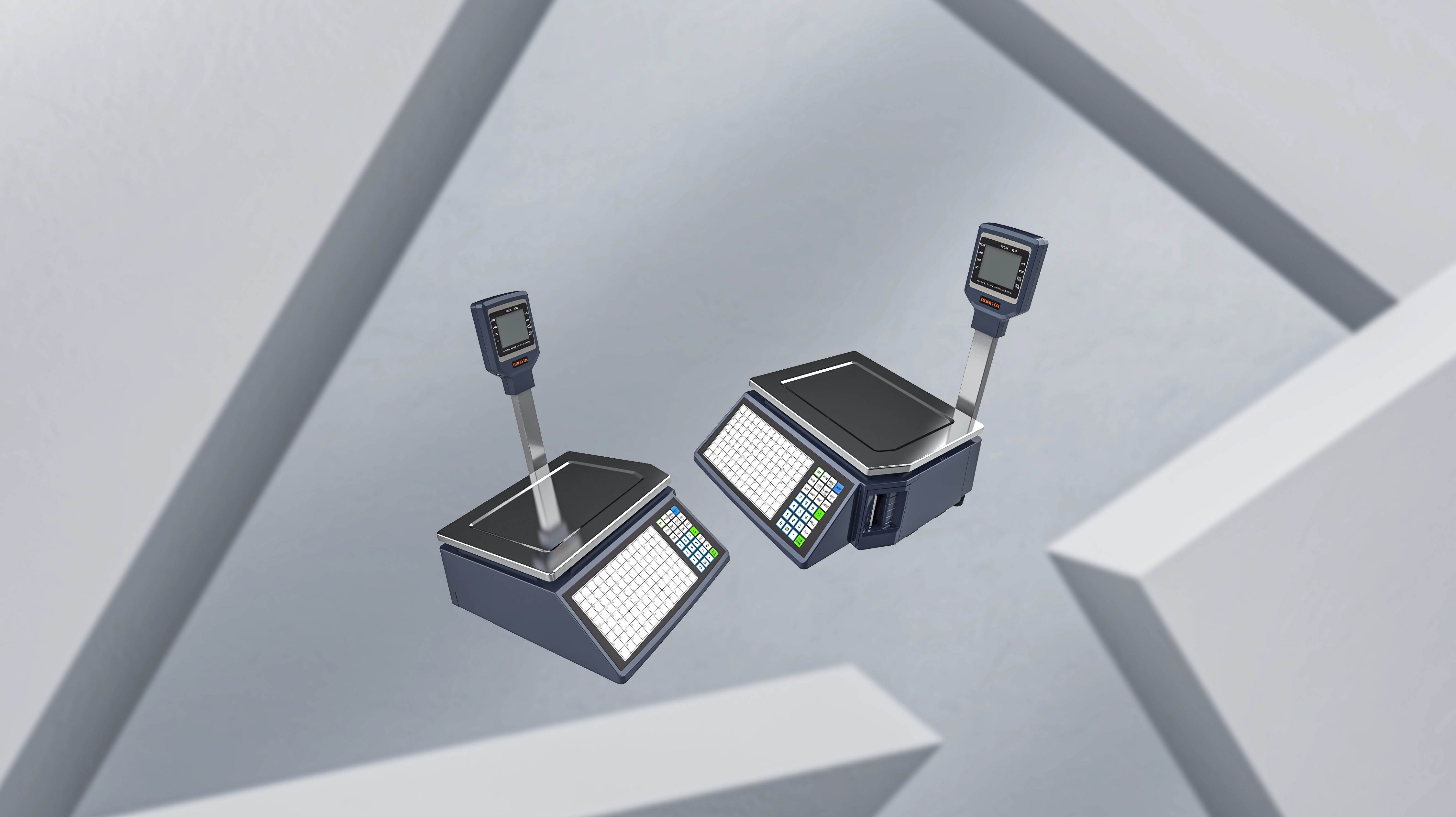

RLS1000A/RLS1100A Digital Weighing Scale for Barcode Label Printing

1. Double monitor, support display brand logo，convenient for promote

2. Double motor design（printing model），high effect，stabilization

3. Nice appearance、drawer type printing model design，easy for paper loading operation

4. Dampproof、insect prevention design，Avoid moisture and insects into the machine cause breakdown

5. Ultra-large capacity、Can store 10000 item、can set 224 hot keys， hot keys can fill

6. Upper software is multipurpose，support commodity management，items query、account checking…fuction

7. Support item number fast query function，can set variety discount information，support to print traceablity code

8. Support to ethernet/PLU upgrade and edit； support receipt bill and adhesive label printing；and QR code printing

9. Support variety barcode form, 8digit, 13digit, 18digit,support difference angles rotating print，Convenient barcode scanning

Technical Specifications

Capacity	Max capacity	6kg/15kg 15kg/30kg
	Min capacity	40g 100g
	Interval	2/5g 5/10g
	Accuracy class	III
Basic	COG	LCD 256X32
	SDRAM	8MB
	FLASH	16MB
	Ethernet	1 x RJ45
	Serial	1 x RS232
	Power source	1 x AC Jack
	Input	AC100V-240V 50/60Hz 1.5A
	Buttons	Hotkeys：112*2；Preset keys：28
	Notification	Buzzer
	Dimension	433(L) × 372(W) × 506(H)mm
Communication	Ethernet	TCP/IP 100M
Communication	Wi-Fi(Optional)	IEEE 802.11 b/g/n，2.4GHz
Printer	Printing	Thermal print
	Print width	MAX 56mm
	Print speed	90 m/s
	Printer resolution	203 DPI
	Paper out	Auto peel off
	Barcode format	2/5 interleaved, 128 、EAN13、GS128
Reliability requirements	Certification	OIML，CE, Type evaluation, NTEP：RLS1000（RLS1200）
Reliability requirements	Implementation standards	GB/T 7722-2020，OIML R 76-1(2006) and EN 45501：2015
Operation environment	Operating temperature	0℃ ～+40℃
	Operating humidity	20%～85%
	Storage temperature	-20℃～+60℃
	Operating temperature	5%～95%
Packaging material	Standard	■Kraft paper■Styrofoam
Packaging material	Standard	■Power cable■Scale pan■Warranty card■Certificate■User manual
