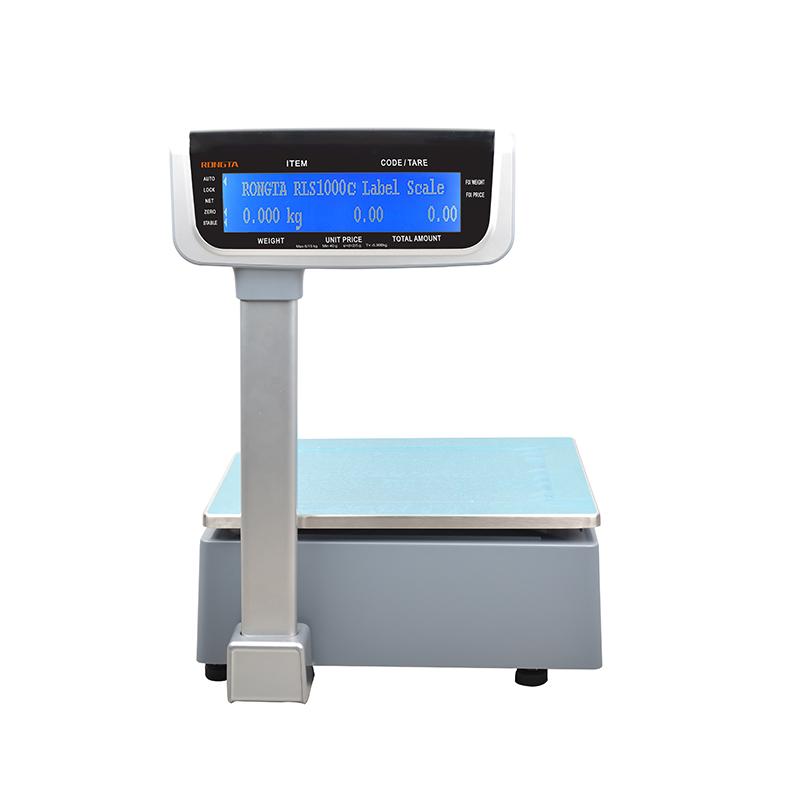

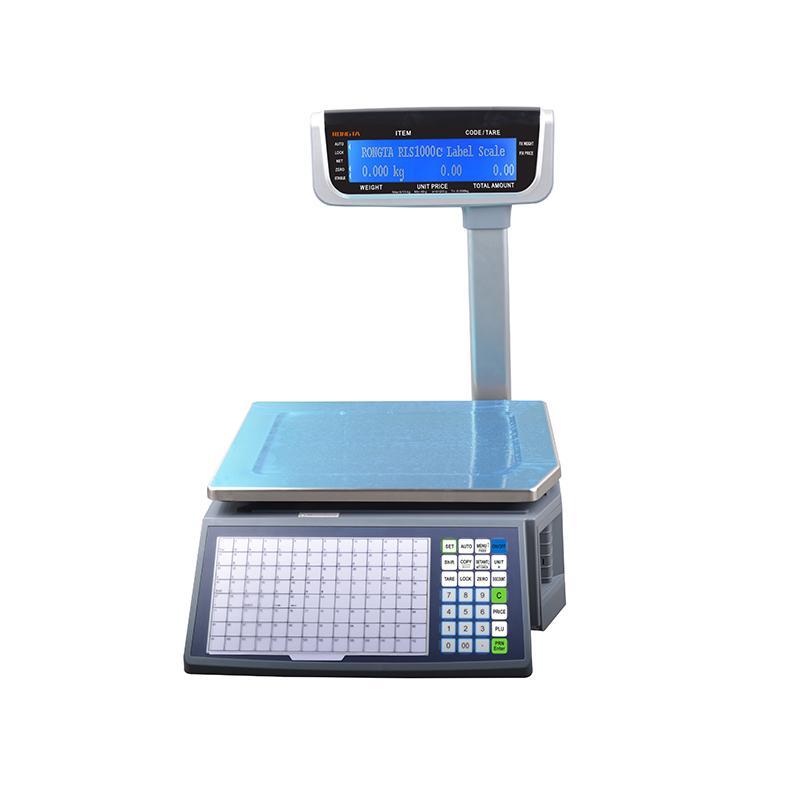

RLS1000/RLS1100C

Barcode Label Scale

RLS1000/RLS1100C 15kg/30kg Price Computing Scale Digital Balance

1. Water-proof, moisture-proof, insect-resistant. Avoid bugs crawl into the machine, and all kinds of malfunctions causes such as wet.

2. Exquisite ,with drawable printer,easy to take out paper and replace paper, simple and convenient operation.

3. Support PLU updating on line and editing, ensure the item all the latest information.

4. Storage capacity up to 10000 pieces commodities and support 224 hotkeys. Set menu shortcuts, through the PC software can adjust the hotkey sequence and print it out.

5. Each item could choose any tag from independently. Multiple barcode optional,such as 8 bit,13 bit, and 18 bit.

6. Can set up different types and information, etc according to different items. It advantageous to the commodity classification management.

7. Support Labels and barcode rotated 90 degrees, or 270 degrees printing.

8. Support to be connected by Ethernet interface, Software can be upgraded online, to meet customer's special demand.

9. More rich label content. can print production date, date of packaging, fresh date, expiration date, Select it according to clients requirements.

10. Searching products quickly by product No.

11. Support discount schedule, discount period setting.

12. Support for multiple foreign languages, labels, such as background, the name of the item etc.

13. Support double screen dot matrix display, easy to promote products.

14. Support receipt paper and label paper printing.

15. Dual-motor design, printing more efficient and stable.

Technical Specifications

Capacity	Max capacity	6kg/15kg 15kg/30kg
	Min capacity	40g 100g
	Interval	2/5g 5/10g
	Accuracy class	III
Basic	COG	LCD 256X32
	SDRAM	8MB
	FLASH	16MB
	Ethernet	1 x RJ45
	Serial	1 x RS232
	Power source	1 x AC Jack
	Input	AC100V-240V 50/60Hz 1.5A
	Buttons	Hotkeys：112*2；Preset keys：28
	Notification	Buzzer
	Dimension	433(L) × 372(W) × 506(H)mm
Communication	Ethernet	TCP/IP 100M
Communication	Wi-Fi(Optional)	IEEE 802.11 b/g/n，2.4GHz
Printer	Printing	Thermal print
	Print width	MAX 56mm
	Print speed	90 m/s
	Printer resolution	203 DPI
	Paper out	Auto peel off
	Barcode format	2/5 interleaved, 128 、EAN13、GS128
Reliability requirements	Certification	OIML，CE, Type evaluation, NTEP：RLS1000（RLS1200）
Reliability requirements	Implementation standards	GB/T 7722-2020，OIML R 76-1(2006) and EN 45501：2015
Operation environment	Operating temperature	0℃ ～+40℃
	Operating humidity	20%～85%
	Storage temperature	-20℃～+60℃
	Operating temperature	5%～95%
Packaging material	Standard	■Kraft paper■Styrofoam
Packaging material	Standard	■Power cable■Scale pan■Warranty card■Certificate■User manual
