RPW210

2'' Wristband Printer

01

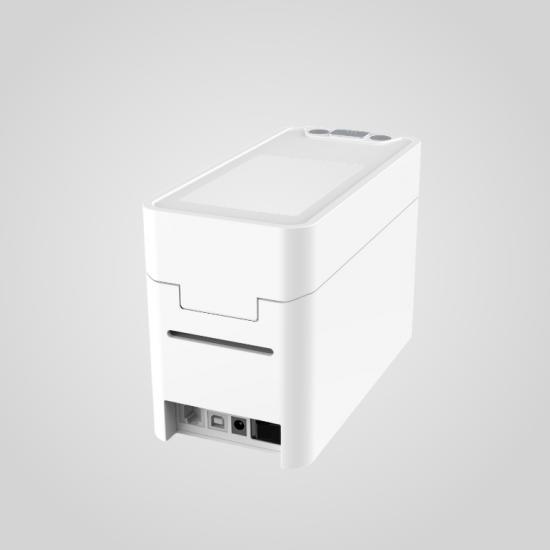

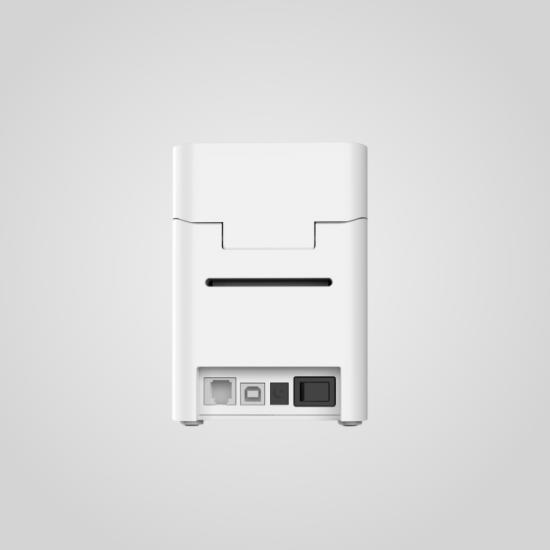

RONGTA Wristband Printer RPW210

1. Wristband label paper and body material are antibacterial and mildew-proof, which can effectively avoid secondary infection.

Adopt advanced antibacterial and mildew-proof materials to reduce the risk of cross infection, provide a safer and more hygienicmedical environment, and effectively avoid secondary infection.

2. One machine covers medical industry services and adapts to the entire medical process.

Supports wristband printing, bottlelabel printing, prescription printing, case label, and continuous paper printing. One machine can meet the diverse printing needs of medical, health and other industries, improve work efficiency, and reduce operating costs.

3. Compatible with various smart terminals, can recognize a variety of barcode types,Supports Three Types of Commands, adapt to different printing needs.

Adapt to various smart terminals, multiple interfaces are optional, can recognize a variety of barcode types, easy to operate, ensure the accuracy of data input, TSPL+ZPL+ESC three instructions, adapt to various printing needs.

4. Anti-drop design, durable product; can be equipped with batteries, easy to carry.

Ensure stability and reliability in different working environments, extend product life,equipped with a battery for portable use, allowing for use anywhere.

Application scenarios:  healthcare.

Technical Specifications

Project Parameter
Print Printing method Thermal
Resolution 203dpi
Maximum print width 2.2''(56mm)
Maximum printing speed 6 ips(150mm/s)
Print length 0.79''-15.75''(20-400mm)
Sensor Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection
Medium type Wristband label,Bottom black mark, continuous paper, folding paper
Width (label + backing paper) 2.56''(65mm)(MAX)
Thickness (label + backing paper) 0.0023''-0.0071''(0.06mm~0.18mm)
Maximum paper roll diameter φ3.94''(φ100mm)
Reel inner diameter φ1''(φ25mm(MIN))
Paper tearing method Manual tearing
Processor 32-bit ARM MCU
Storage RAM 8MB
FLASH 8MB
Function button Power switch, pause button, FEED button, paper bin cover opening button
Indicator Lights YES
buzzer Buzzer tone
Display /
other First sheet returned, reprinting due to lack of paper
Communication interface USB/Bluetooth+USB/USB+Ethernet/Bluetooth+USB+Ethernet
Programming language TSPL+ZPL+ESC
Built-in fonts ASCll Font: 5x9, 7x11, 10x18, 15x28, 13x26, 40x60, 13x21, 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
GB18030: 16x16, 24x24
Code Page Extended character table CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode One-dimensional code Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
  QRCODE, PD417, DateMatrix
Software drive XP, Win7, Win8, Win10, Win11, ios, Android
SDK Android, iOS, Windows
Label design Barcode label editing software (PC), APP
Power adapter Input: AC 100-240V, 50/60Hz
Output: DC 24V/2.5A
Environmental parameters Work Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
storage Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters Dimensions (length, width, height) 104mm*210mm*143mm
weight 1.5kg
Accessories Standard Power cord, USB data cable, power adapter, quick installation guide, certificate of conformity
Optional Battery
Standard CCC, CE, FCC
