RP410

4'' Thermal Label Printer

Supports 4'' large label printing

High compatibility; can also print logistics shipping labels

Equipped with rich interfaces and commands, adaptability to diverse scenarios
203dpi resolution

Clear text, excellent results, easily handles various printing needs
Large storage capacity

8MB RAM storage space supports complex task processing and reduces the risk of lag

Equipment status is clearly displayed

Buzzer alerts and indicator lights provide timely reminders of equipment status
6ips (150mm/s) printing speed

Quickly respond to order demands and improve processing efficiency

A transparent top cover allows for real-time monitoring of equipment status

Reducing the likelihood of equipment failure.

It can be used on both computers and mobile phones.

Application Scenario

Supermarkets, Restaurants, Tea shops, Retail

Supermarkets

Logistics

Tea Shops

Retail

Print command

TSPL+ESC、ZPL+ESC

Superior heat dissipation performance, capable of handling high-volume printing.

Upgraded heat dissipation structure easily handles continuous high-volume printing, preventing performance degradation and stuttering caused by overheating, and reducing the failure rate.

Effectively avoids paper waste.

After reopening the cover, the paper is automatically positioned，effectively preventing printing misalignment and wasted shipping labels.

The reprint function effectively prevents information loss.

After the paper roll is empty, the order can be reprinted, avoiding issues such as lost or missed electronic waybill information during printing due to paper shortages.

Equipped with open cover button

Easy paper roll replacement.

Technical Specifications

model	RP410
Features	1. Excellent heat dissipation performance, capable of handling large-volume printing; 2. Reprint function to avoid lost electronic waybills and missed printing due to lack of paper. 3. Paper is automatically positioned after reopening the cover to avoid misaligned printing and wasted waybills. 4. It can print 4'' large waybill with higher compatibility; 5. Rich interfaces, rich commands, large storage space, and diversified adaptation scenarios.
Application	Logistics, warehousing, retail, supermarkets, Drink shop / Tea shop,
Product Specifications	Product Specifications
project	parameter
Print	Thermal
	203dpi
	4.23''(108mm)
	6 ips(150mm/s)
	0.79''-9.84''(20-250mm)
sensor	Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection
medium	Label paper, Bottom black mark, continuous paper, folding paper
	4.72''(120mm(MAX))
	0.0023''-0.0071''(0.06mm~0.18mm)
	φ5.12''(φ130mm)
	φ1''(φ25.4mm), φ1.50''(φ38mm)
Paper tearing method	Manual tearing
processor	32-bit ARM MCU
storage	2MB(U), 4MB(BU), 8MB(USE)
storage	2MB (U), 4MB (BU/USE)
Function	Rocker switch, Feed button, Paper bin cover opening button
	YES
	Buzzer tone
	/
	Automatic paper recognition, reprinting when out of paper, first sheet return, bad pixel detection
Communication interface	U/BU/USE
programming language	TSPL+ESC, ZPL+ESC
Built-in fonts	ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
	GB18030: 24×24
Code Page	CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	Code39, Code39C, CodeI25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
Barcode	QRCODE, PDF417 (optional)
software	XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS
	Android, iOS, Windows
	Barcode label editing software (PC), APP
Power adapter	Input: AC 100-240V, 50/60Hz
	Output: DC 24V/2.5A
Environmental parameters	Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Environmental parameters	Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters	217mm182mm172mm
Physical parameters	1.72kg

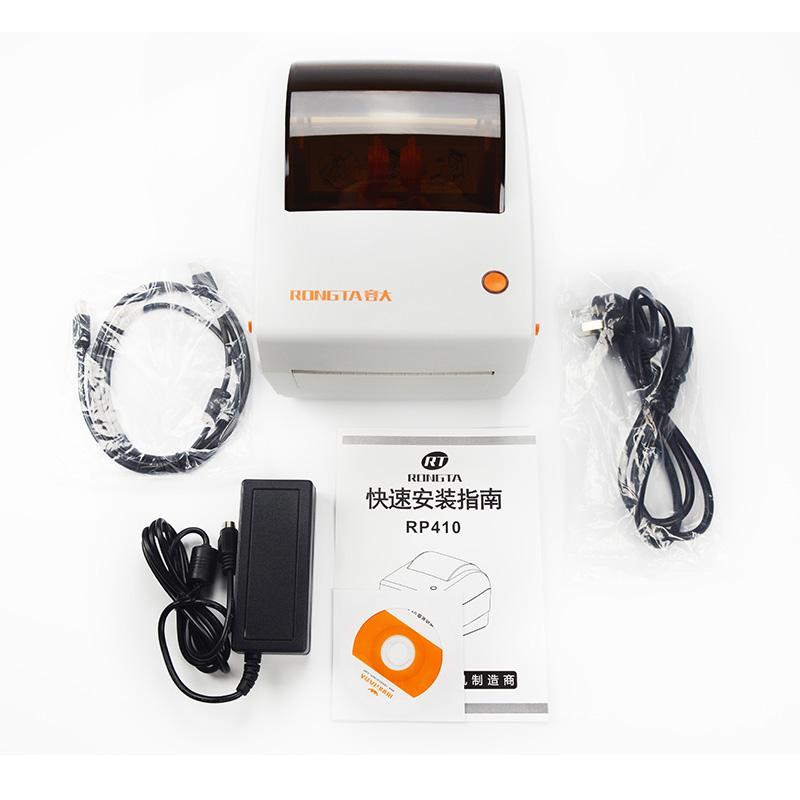

Accessories	Power cord, USB data cable, power adapter, quick installation guide
Accessories	External bracket
standard	CCC, CE, FCC, UKCA, ROHS
