Get A Quote

RP420

4'' Shipping Label Printer

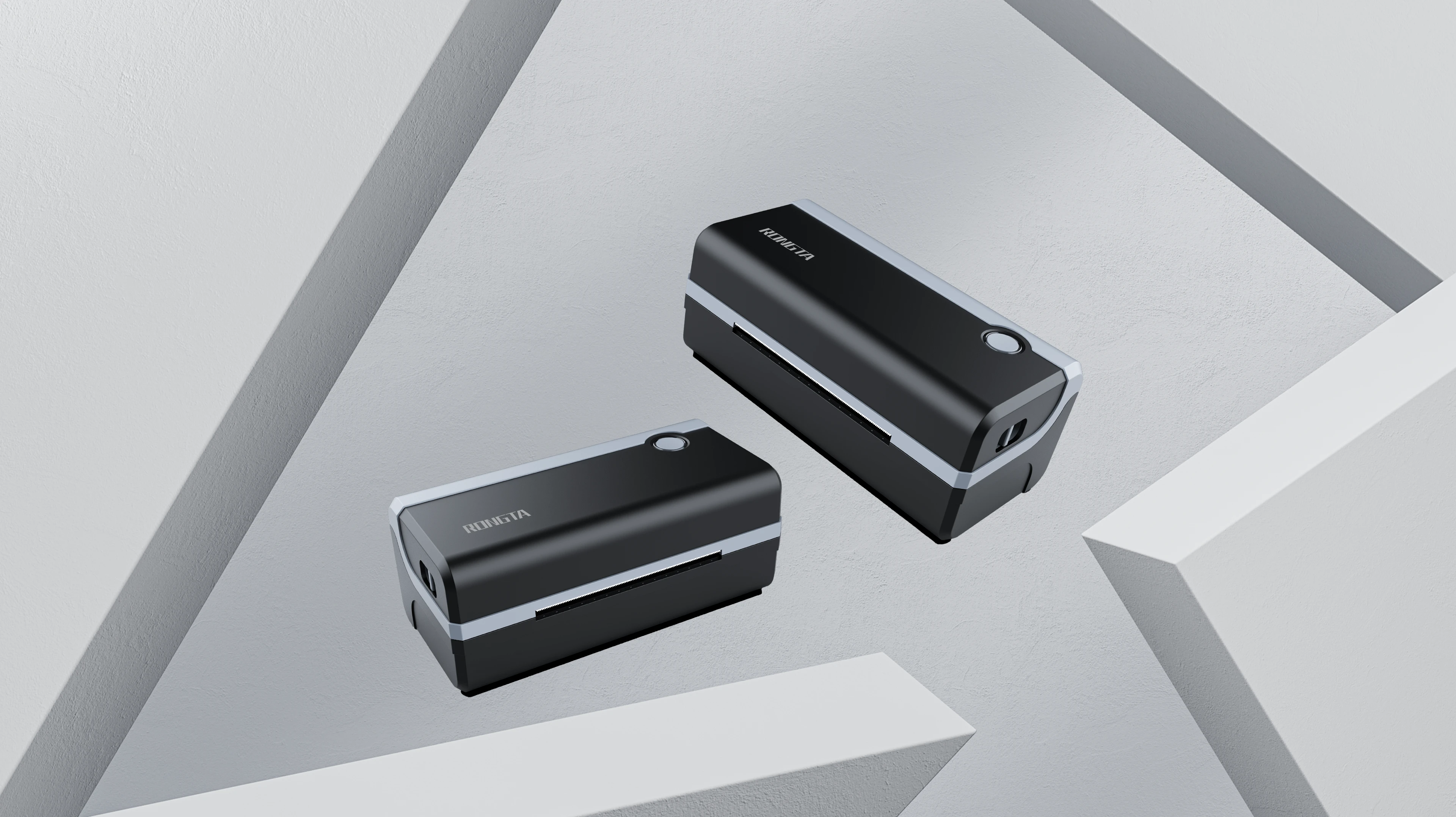

RP420 4inch Thermal Barcode Label Printer Bluetooth

1.Elegant and compact, designed as both stylish and small in size.
2. With automatic paper advance and retreat, the printer can both feed and retract paper automatically.
3. Electronic waybill printing, label printing, and receipt printing, distinguish between different types of documents that might be printed.
4. Bad dot detection.
5. Capable of handling high-volume printing tasks.

Application: Express logistics, clothing industry, supermarket retail, warehouse management, Restaurant,and tea beverages, etc.

Technical Specifications

Project	Parameter
Print	Thermal
	203dpi
	4.23''(108mm)
	5 ips(127mm/s)
	0.79''-9.84''(20mm-250mm)
sensor	Seam mark detection, black mark detection, paper shortage detection, First sheet retreat detection , cover opening detection, Print head temperature detection
medium	Label paper, Bottom black mark, continuous paper, folding paper
	1.50''-4.72''(38-120mm)
	0.0023''-0.0071''(0.06mm~0.18mm)
	NA
	NA
Paper tearing method	Manual tearing
processor	32-bit ARM MCU
storage	2MB
storage	4MB
Function	Rocker switch, Feed button, Paper bin cover opening button
	YES
	Buzzer tone
	/
	Automatic paper recognition, reprinting when out of paper, first sheet return, bad pixel detection
Communication interface	U/BU
programming language	TSPL+ESC
Built-in fonts	ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
	GB18030: 24×24
Code Page	CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
Barcode	QRCODE, PDF417 (optional)
software	XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS
	Android, iOS, Windows
	Barcode label editing software (PC), APP
Power adapter	Input: AC 100-240V, 50/60Hz
Power adapter	Output: DC 24V/2.5A
Environmental parameters	Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Environmental parameters	Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters	220mm105mm92mm
Physical parameters	1.32kg
Accessories	Power adapter, power cord, USB data cable, quick installation guide
Accessories	External bracket
standard	CCC, FCC, CE, UKCA, ROHS
