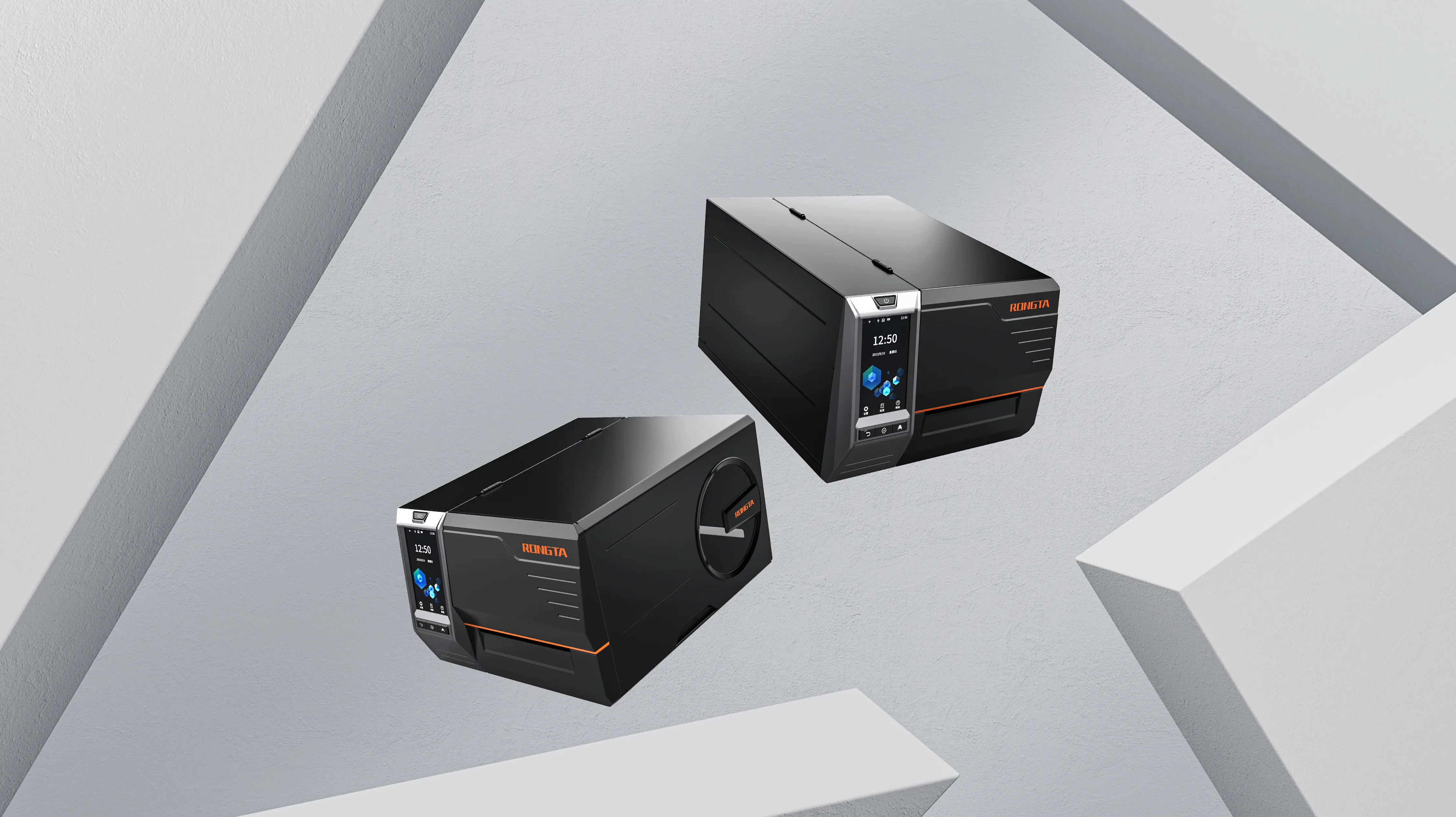

RI460/RI463/RI460r

Light Industrial Barcode Label Printer

1. Supports thermal transfer/thermal printing modes to meet diverse printing needs. Suitable for printing a variety of label materials, including clothing hang tags, care labels, product labels, copper plate jewelry labels, thermal labels, electronic waybills, and matte silver self-adhesive labels.

2. Features include paper-out reprint, bad pixel detection, and abnormality alarms.

3. With 4.3" color touchscreen display offers user-friendly interaction, allowing you to operate menus, view and set printer parameters, display print status, alarms, and test prints.

4. Supports long-term continuous printing, ensuring uninterrupted printing.

5. Includes comprehensive barcode label editing software with easy-to-use editing capabilities.

6. Built-in print templates support offline printing and can import print data or templates from a USB flash drive, enhancing application adaptability.

7.RI460r support RFID function.

Technical Specifications

Model		RI460	RI463	RI460r
Print	Printing Method	Thermal transfer/thermal
	Resolution	203dpi	300dpi	203dpi
	Maximum Print Width	4.23''(108mm)	4.17''(106mm)	4.23''(108mm)
	Maximum Printing Speed	10 ips（254mm/s）	8 ips（200mm/s）	10 ips（254mm/s）
	Print Length	0.39''-157.48''(10-4000mm)
Sensor		Seam mark detection, black mark detection, paper shortage detection, ribbon end detection, cover opening detection, head temperature detection
Media	Type	Label paper, black label paper (lower black label), continuous paper, folding paper, coated paper, matte silver paper
	Width (label + backing paper)	0.79''-4.65''(20-118mm)
	Thickness (label + backing paper)	0.0023''-0.059''(0.06-1.5mm)
	Maximum Paper Roll Diameter	φ5.98''(φ152mm）
	Reel Inner Diameter	φ1.5''(φ38.1mm)(MIN)
Carbon Ribbon	Carbon Ribbon Outer Diameter	φ2.76''(φ70mm(MAX))
	Ribbon Length	11.81''(300m)
	Ribbon Width	4.33''(110mm)
	Ribbon Core Inner Diameter	φ1''(φ25.4mm(MIN))
Paper Tearing Method		Manual tearing
Processor		Arm Cortex-A7
Storage	RAM	256MB
	FLASH	512MB
Function	Button	Power switch, power button, FEED button, pause button, return button
	Indicator Lights	Have
	Buzzer	Buzzer tone
	Display	4.3'' capacitive touch screen
	Other	Bad pixel detection, paper shortage and reprinting
Communication Interface		USB+Serial+Ethernet/Bluetooth+WIFI+USB+Serial+Ethernet
Programming Language		ZPL+TSPL
Built-in Fonts		ASCll Font：5x9、7x11、10x18、15x28、13x26、40x60、13x21、10x12、14x20、16x24、24x32、36x48、14x19、21x27、14x25、12x24
		GB18030：24×24，Chinese, Japanese, and Korean vector fonts；
Code Page	Extended Character Table	CP437、CP850、CP852、CP860、CP863、CP865、CP866、WPC1250、WPC1251、WPC1252、WPC1253、WPC1254
Barcode	1D	Code39、Code39C、I25、Code93、ITF25、EAN128、Code128、Codabar、EAN-8、EAN8+2、EAN8+5、EAN-13、EAN13+2、EAN13+5、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPCE+5MSIC、ITF14、EAN14、Code11
	2D	QRCODE、PD417、Maxicode、DateMatrix、Aztec
Software	Drive	Win7、Win8、Win10、Win11、linux、MAC
	SDK	Android、ios、windows、linux
	Label Design	Bartender barcode editing software、APP
Power Adapter		Input:AC 100-240V，50/60Hz
		/
Environmental Parameters	Work	Temperature:32-104℉(0-40℃)；Humidity: 20-85%(non-condensing)
	Storage	Temperature:14-140℉(-10-60℃)；Humidity: 5-85%(non-condensing)
Physical Parameters	Dimensions	362272.3202.7mm
	Weight	10.3kg
Accessories	Standard	Power cord, USB data cable, serial cable, warranty card, instruction manual
	Optional	External bracket
Standard		ROHS、DGM、CE、FCC、REACH	ROHS、CE、FCC	ROHS、DGM、CE、FCC、REACH
