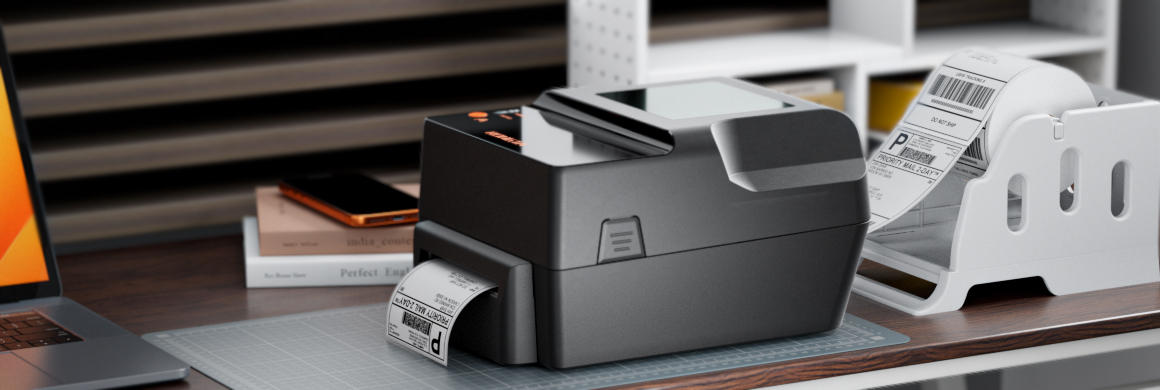

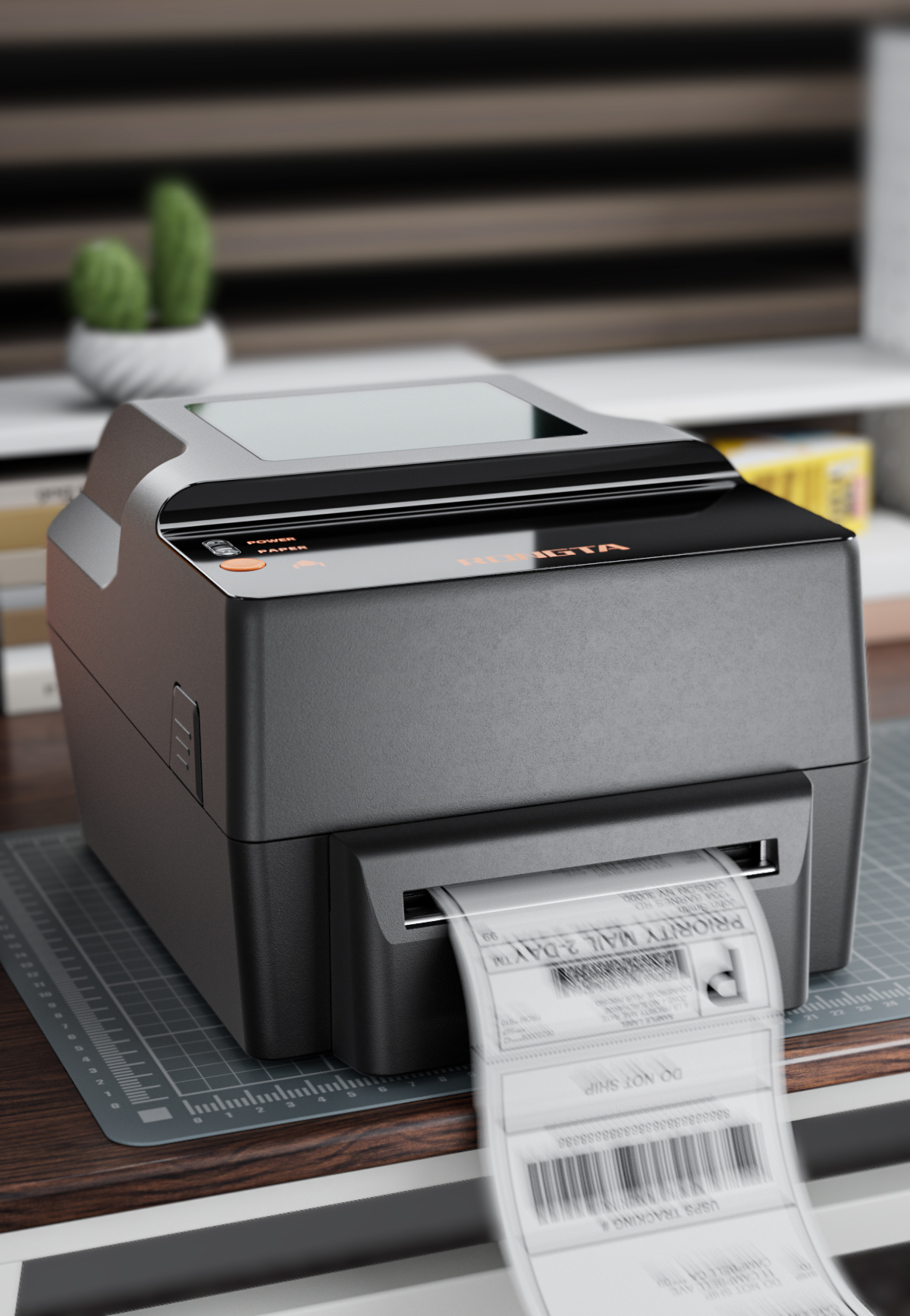

RP500/500A 4" Thermal Transfer Barcode Printer

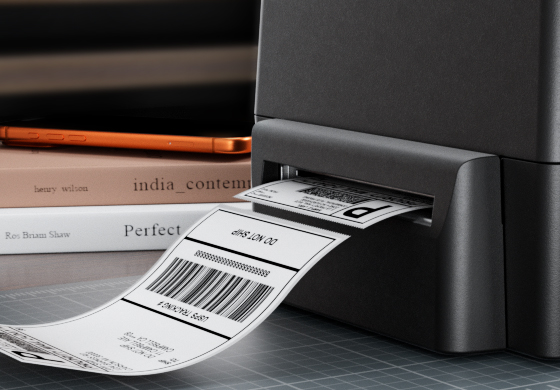

High-quality Cutter, Worry-Free High-Volume Printing

detail3

Print Speed: 4 ips (100 mm/s)

Designed for high-volume printing demands

    Supports printing labels on various materials
    Coated paper, silver matte paper, wash care labels, cardstock (hang tags), price tags, label paper, continuous paper, black mark paper, folded paper, etc..

    Large Paper Bin
    Saving time during paper replacement and greatly improves efficiency.

    04-1

    Clothing Industry

    04-2

    Product Identification

    04-3

    Asset Management

    04-4

    Logistics


    Multiple interfaces

    Meet the needs of diverse industries

    Supports Bartender software

    Includes PC editing software

    Technical Specifications

    Print Printing Method Thermaltransfer/Thermal
    Resolution 300dpi
    Maximum Print Width 4.23''(108mm)
    Maximum Printing Speed 4 ips（100mm/s）
    Print Length 0.39''-40''(10-1016mm)
    Sensor Seam mark detection, black mark detection, paper shortage detection, ribbon end
    detection, cover opening detection, head temperature detection

    Medium    		 Type Coated paper, matt silver paper, wash label, cardboard (hangtag), price tag paper,continuous paper, black label paper, folding paper (rear feed)
    Width (label + backing paper) 0.79''-4.72''(20-120mm)
    Thickness (label + backing paper) 0.0023''-0.0098''(0.06mm~0.25mm)
    Maximum Paper Roll DiameterReel Inner Diameter φ5''(φ127mm(MAX)）
    Reel Inner Diameter φ1''(φ24mm(MIN))

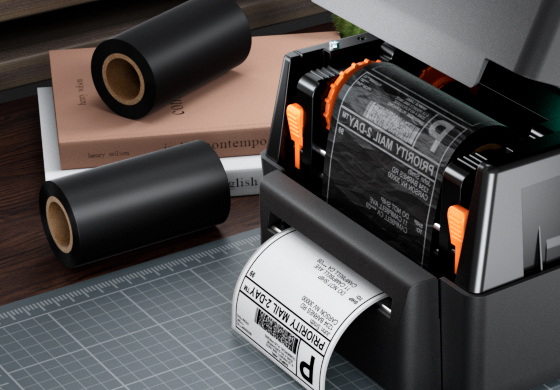

    Carbon Ribbon    		 Carbon Ribbon Outer Diameter φ2.76''(φ70mm(MAX))
    Ribbon Length 11.81''(300m)
    Ribbon Width 1.57''-4.33''(40-110mm)
    Ribbon Core Inner Diameter φ1''(φ25.4mm(MIN))
    Paper Tearing Method Paper Cutter With cutter (full cut)
    Processor 32-bit ARM, MCU
    Storage RAM 16MB
    FLASH 8MB
    Function Button Rocker switch, Feed key, Paper bin cover opening key
    Indicator  Lights have
    Buzzer Buzzer tone
    Display /
    Other Auto Paper Detection, Reprint on Shortage, Defect Detection
    Communication Interface USB+Ethernet port+Serial port / optional: Bluetooth, WIFI
    Programming  Language TSPL+ZPL
     Language
    Built-in Fonts    		 ASCI Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24


    GB18030: 24×24
    Code Page Extended Character Table CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
    Barcode 1D Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST
    2D QRCODE, PD417, Maxicode, DateMatrix, Aztec(To be developed)
    Software Drive XP, Win7, Win8, Win10, Win11, Linux, MacOS
    SDK Android, iOS, Windows
    Label Design BarTender barcode label editing software (PC), Bluetooth version: RT ELabel APP (IOS & Android)
    Power adapter Input: AC 100-240V, 50/60Hz
    Output: DC 24V/2.5A
    Environmenta lparameters Work Temperature: 32-104°F (0-40°C); Humidity: 20-90% (non-condensing)
    Storage Temperature: 14-140°F (-10-60°C); Humidity: 5-95% (non-condensing)
    Physical parameters Dimensions 285*223*169mm (without cutter)
    Weight 2.9kg
    Accessories Standard ■ Power adapter ■ Power cord ■ USB cable ■ Quick installation guide
    ■ Carbon ribbon + paper core ■ Cutter (full cut) ■ 1.5" adapter *2
    Optional ■ Serial port cable ■ External paper holder A/B

    Support & Downloads

    Description of some content on the website page:

    1. The product images and screen content on the above pages are for illustrative purposes only. The actual product effects (including but not limited to appearance, color, size) and screen display content (including but not limited to background, U1, accompanying images) may vary slightly. Please refer to the actual product for accuracy
    2. Some product accessories need to be purchased separately, and the page effect is for reference only.
    3. The data presented on the above pages are theoretical values, all sourced from our internal laboratory and obtained under specific testing conditions (please refer to individual specifications). Actual usage may vary slightly due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to the actual usage situation.
    4. Due to real-time changes in product batches and production supply factors, in order to provide accurate product information, specifications, and product characteristics as much as possible, we may adjust and revise the textual descriptions, image effects, and other content on the above pages in real time, in order to match the actual product performance, specifications, indices, components, and other information.
    5. In case of any necessity for the aforementioned modifications and adjustments, no special notice will be given

    Side-press opening for easy use

    Simply press the side to open the lid and insert labels，simple and easy to operate.
