RP80VI

3'' Thermal Label Printer

RP80VI 3inch Thermal Label Barcode Printer

1. Rich interfaces, adaptable to different scenarios

2. Automatic positioning of label paper, automatic peeling of base paper, convenient and quick to use;

3. Automatic paper inspection function, labels and bills can be printed.

Application: drink shop / Tea shop ， food labels, retail, supermarkets, specialty store front desks and other industry markets.

Technical Specifications

Project		Parameter
Print	Printing method	Thermal
	Resolution	203dpi
	Maximum print width	3.15''(80mm)
	Maximum printing speed	5 ips(127mm/s)
	Print length	0.79''-9.84''(20mm-250mm)
sensor		Seam mark detection, black mark detection, paper shortage detection, backflow detection, cover opening detection, head temperature detection
medium	type	Label paper, Bottom black mark, continuous paper, folding paper
	Width (label + backing paper)	0.94''-3.23''(24-82mm)
	Thickness (label + backing paper)	0.0023''-0.0071''(0.06mm~0.18mm)
	Maximum paper roll diameter	φ3.74''(φ95mm)
	Reel inner diameter	φ1''(φ25.4mm（MIN）)
Paper tearing method		Manual tearing
processor		32-bit ARM MCU
storage	RAM	8MB
storage	FLASH	4MB
Function	button	Power switch, Feed button, paper bin cover opening button
	Indicator Lights	YES
	buzzer	Buzzer tone
	Display	/
	other	Automatically identify paper and reprint when paper is out of stock
Communication interface		US/USE
programming language		TSPL+ESC
Built-in fonts		ASCll Font: 5x9, 7x11, 10x18, 15x28, 13x26, 40x60, 13x21, 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
Built-in fonts		GB18030: 16x16, 24x24
Code Page	Extended character table	CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	One-dimensional code	Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
Barcode		QRCODE, PDF417 (optional)
software	drive	XP, Win7, Win8, Win10, Win11, Mac, IOS, Android
	SDK	Android, iOS, Windows
	Label design	Barcode label editing software (PC), APP
Power adapter		Input: AC 100-240V, 50/60Hz
Power adapter		Output: DC 24V/2.5A
Environmental parameters	Work	Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Environmental parameters	storage	Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical parameters	Dimensions (length, width, height)	238mm146mm133mm
Physical parameters	weight	1.34kg

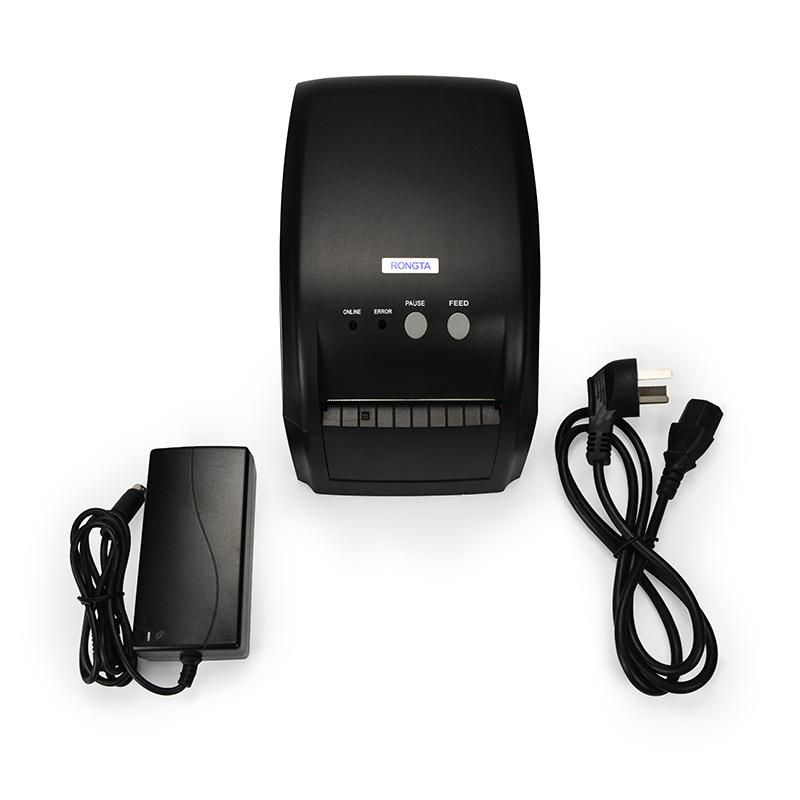

Accessories	Standard	Power cord, USB data cable, power adapter, quick installation guide, warranty card
Accessories	Optional	/
standard		CCC, CE, ROHS, CB, UKCA
