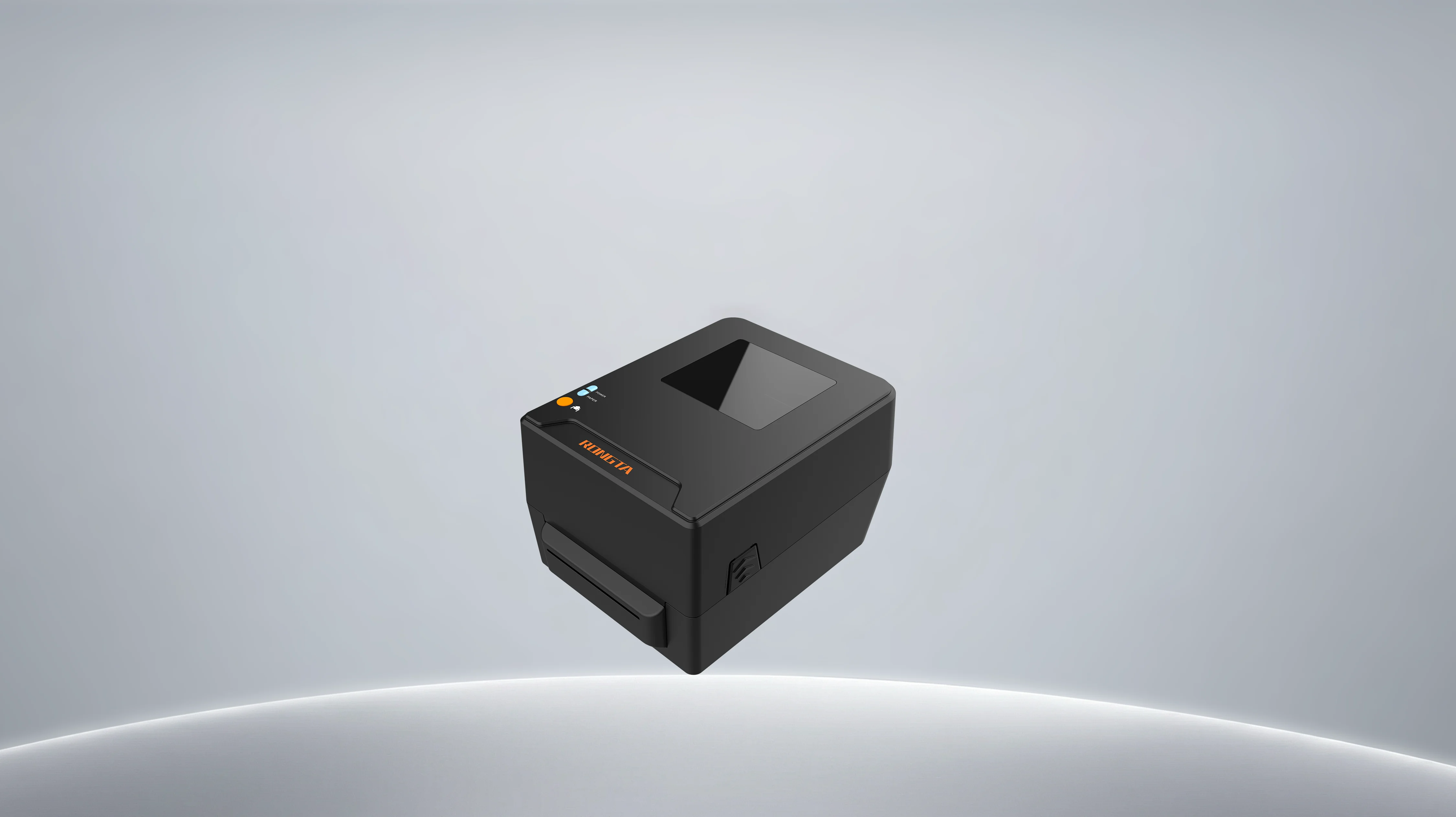

RPF412

  UHF RFID Barcode Label Printer

Smart Recognition · More Efficient Warehouse Management

03-1

RFID Smart Recognition

Supports RFID label printing for item tracking, inventory counting, and anti-counterfeiting verification – making warehouse management more efficient

03-2

Dual-Mode Printing

Optional Bluetooth and WiFi for connecting to various smart devices, enhancing convenience and flexibility.

03-3

Rich Interfaces

USB + Serial + Ethernet – flexible connectivity for various smart terminals

04-1

Warehousing Management

04-2

Library Management

04-3

High-End Apparel Stores

04-4

Airport Baggage Labels

05-1

Smart Sensors

Equipped with multiple sensors – auto paper detection, reprint after paper-out, and bad dot detection for stable, reliable long-term continuous printing

05-2

Large Storage Configuration

64MB RAM + 32MB FLASH – easily handles high-volume label printing tasks

05-3

Software Compatibility

Supports Windows / iOS / Android / Linux / MacOS drivers, with PC label design software included

Technical Specifications

Project Parameter
Print Thermal transfer/thermal
203dpi
4.23''(108mm)
5 ips(127mm/s)
0.79''-9.84''(20-250mm)
Sensor Paper shortage detection, head temperature detection, seam mark detection, black mark detection, cover opening detection, ribbon end detection
Media Continuous paper, label paper, folding paper, black label paper (lower black label), coated paper, matte silver paper
0.79''-4.72''(20-120mm)
0.0023''-0.0071''(0.06mm~0.18mm)
φ5''(φ127mm(MAX))
φ1''(φ24mm(MIN))
Carbon Ribbon φ2.76''(φ70mm(MAX))
11.81''(300m)
4.33''(110mm)
φ1''(φ25.4mm(MIN))
Paper tearing method paper cutter Manual tearing
Processor 32-bit ARM, MCU
Storage 64MB
32MB
Function Rocker switch, Feed button, Paper bin cover opening button
have
Buzzer tone
/
Automatically identify paper, reprint when out of paper, and detect bad pixels
Communication interface USEP
programming language TSPL+ESC
Built-in fonts ASCl Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
  GB18030: 24×24
Code Page CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
QRCODE
Software XP, Win7, Win8, Win10, Win11, ios, Android, Linux, MacOS
Android, iOS, Windows
Barcode label editing software (PC)
Power adapter Input: AC 100-240V, 50/60Hz
  Output: DC 24V/2.5A
Environmental parameters Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical Parameters 223*285*168.5mm
2.39kg
Accessories Power cord, power adapter, USB data cable, serial cable, parallel cable, warranty card, instruction manual
Standard CCC
