RP310D 3inch

Dual-color thermal label printer

01

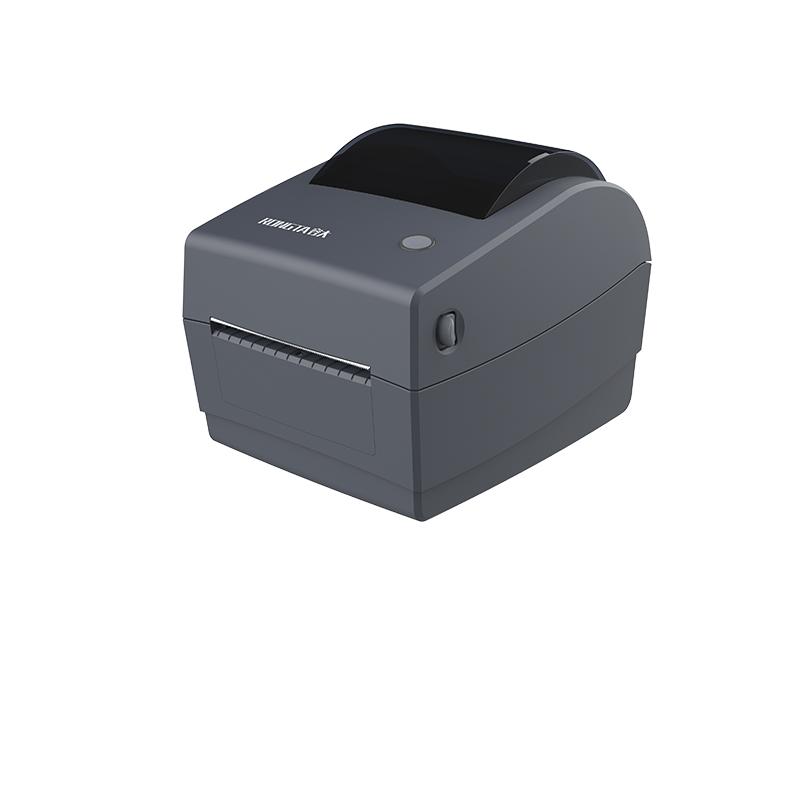

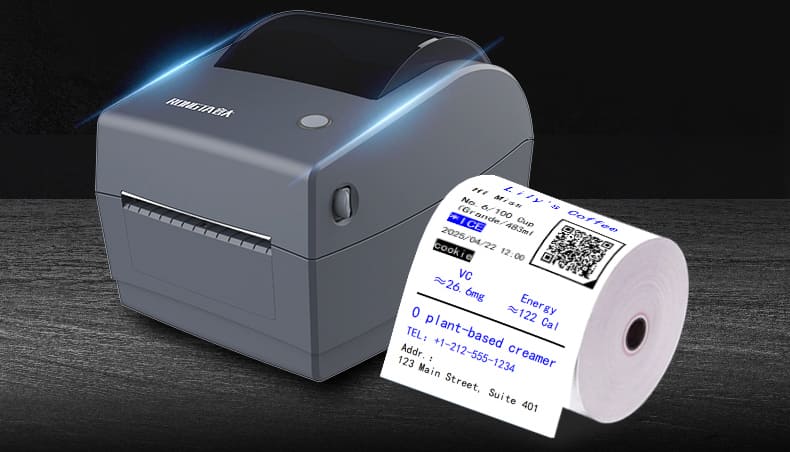

RP310D 3" Dual-color thermal label printer

1.Accurately distinguish between regular information and key content, and highlight key information with eye-catching colors, so that the information is clearly layered, clear and easy to identify, and easy to identify important information, helping to quickly identify and obtain important content.

2.128MB RAM + 128MB FLASH large storage space, with excellent heat dissipation performance, can better cope with the needs of large-volume printing, ensure stable operation of the equipment, effectively extend the service life of the equipment, improve printing quality, and reduce maintenance costs.

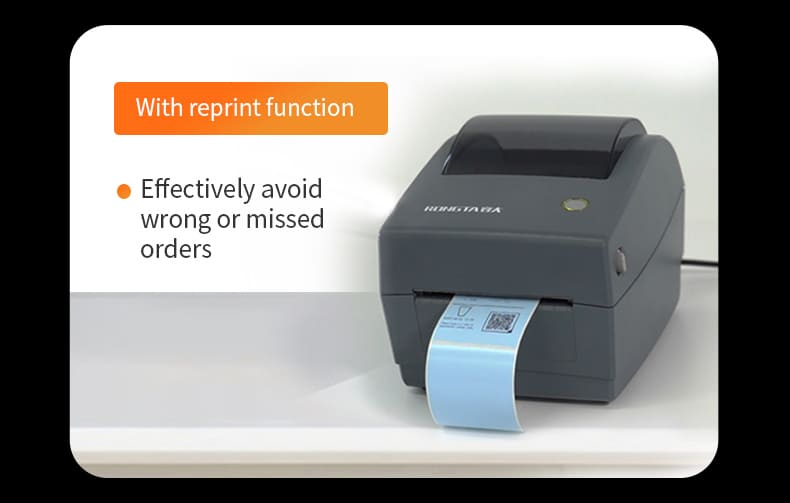

3.The reprint function ensures that during the printing process, if there is an emergency such as lack of paper, it effectively avoids the loss of information, omissions, etc., ensuring that each order can be completely and accurately output, greatly improving work efficiency. Moreover, after reopening the cover, it can automatically and accurately position the paper to avoid printing misalignment, reduce waste of the face sheet, and make printing smoother and more efficient.

Technical Specifications

Product Specifications Product Specifications
project parameter
Print Printing Method Thermal
Resolution 203dpi
Maximum Print width 3.15''(80mm)
Maximum Printing Speed Single color:7ips (180mm/s)
Two color:2.76ips (70mm/s)
Print Length 0.79''-7.87''(20-200mm)
Sensor Movable reflection/black mark sensor, transmission/gap sensor, retractable optical coupler, cover opening detection, head chip temperature detection
Medium Type Label paper, Black mark paper (bottom black mark), continuous paper
Width (label + backing paper) 1.18''-3.35''(30-85mm)
Thickness (label + backing paper) 0.0023''-0.0071''(0.06mm~0.18mm)
Maximum Paper Roll Diameter φ4.13''(φ105mm)
Reel Inner Diameter φ1''(φ25.4mm)、φ1.50''(φ38.1mm)
Paper Tearing Method Manual tearing
Processor 32bit ARM MCU 600MHz
Storage RAM 128MB
FLASH 128MB
Function Button Rocker switch, Feed button, Paper bin cover opening button
Indicator Lights YES

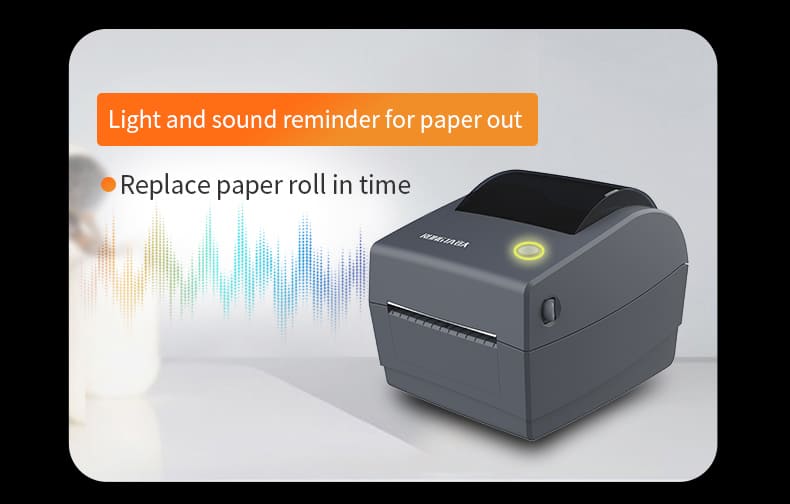

Buzzer Buzzer tone
Display /
Other Automatic paper recognition, reprinting when out of paper
Communication Interface Bluethooth+USB+Ethernet(optionRS232)
Programming Language TSPL+ESC(support expand to ZPL)
Built-in Fonts ASCll Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
GB18030: 24×24
Code Page Extended Character table CP437, CP850, CP852, CP860, CP863, CP865, CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode 1D Code39, Code39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN -13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5MSIC, ITF14, EAN14, Code11
2D QRCODE, PDF417 (optional)
Software Drive Windows 7/8/10/11、Linux、MacOS、UOS/Kylinsfot arm64
SDK Android, iOS, Windows
Label Design Bartender(PC)、RT Elabel APP(iOS/Android)
Power Adapter Input: AC 100-240V, 50/60Hz
Output: DC 24V/2.5A
Environmental Parameters Work Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Storage Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical Parameters Dimensions (length, width, height) 179mm*150mm*142mm
Weight 1kg
Accessories Standard Power cord, USB data cable, power adapter, quick installation guide
Optional /
Standard CCC, CE, UKCA
