RP400H

4'' Thermal Transfer Barcode Printer

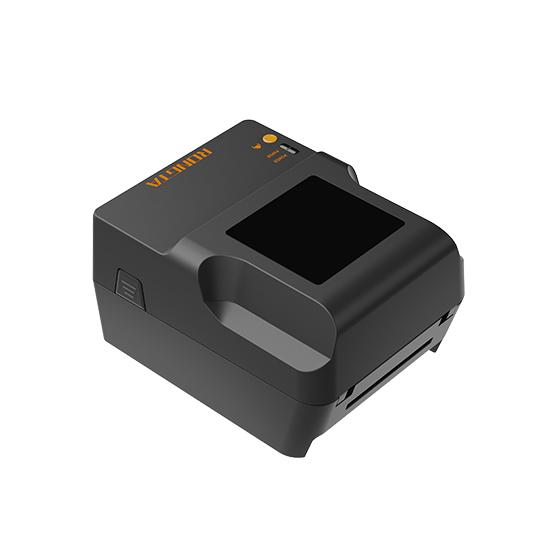

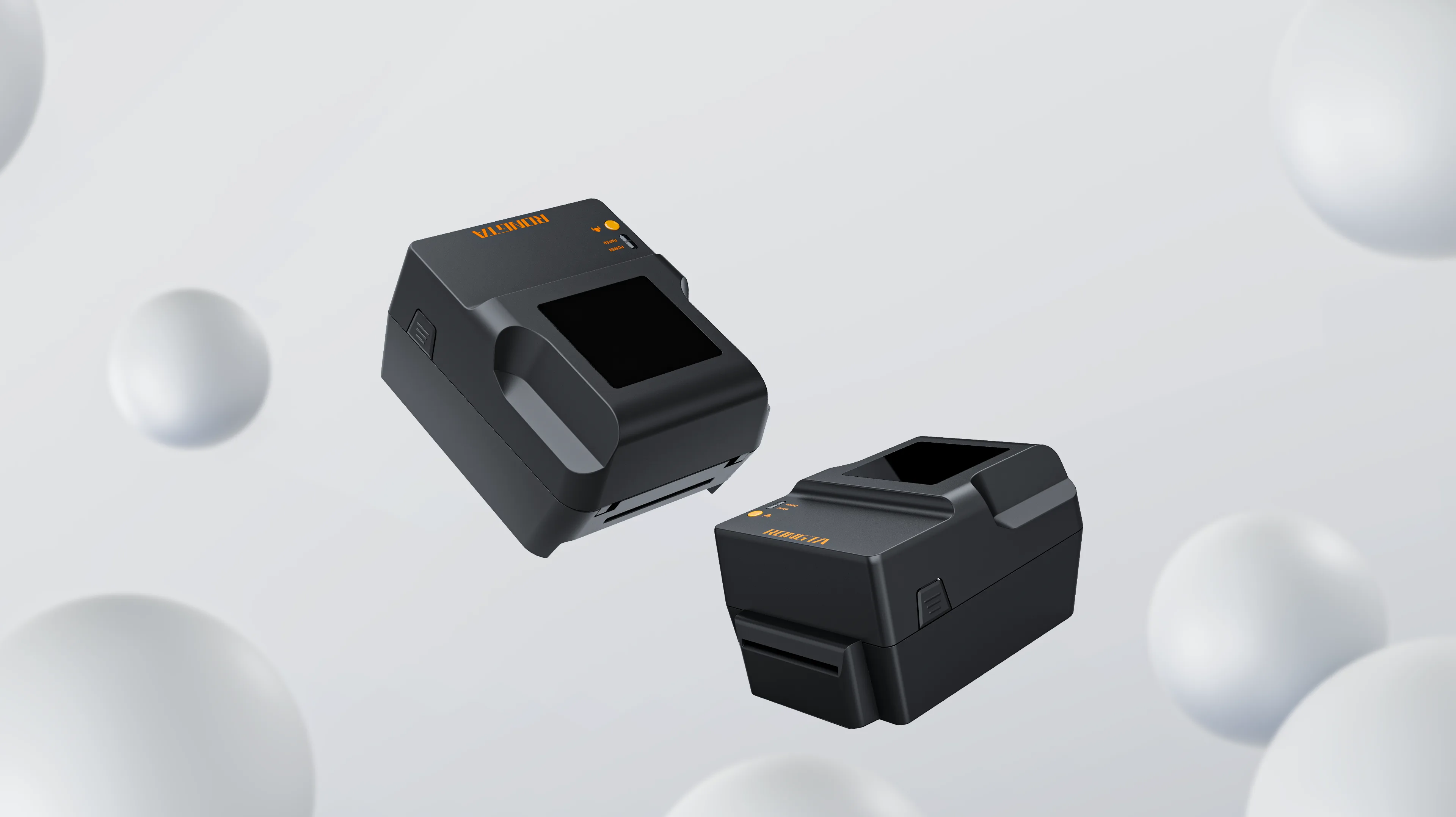

RP400H 4" Thermal Transfer Barcode Printer

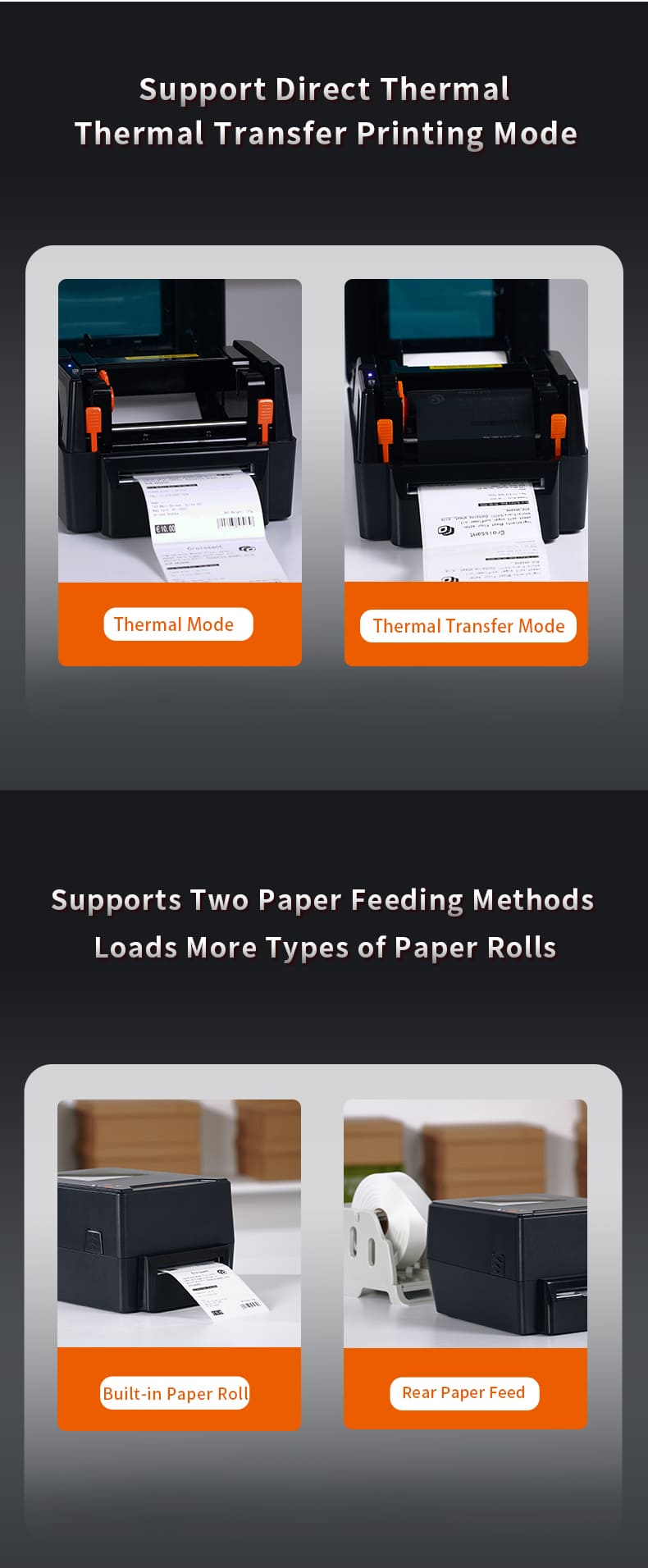

1. Support thermal/thermal transfer printing mode; adapt to different scene requirements. Can print a variety of material labels: clothing tags, washing labels, product labels, copper plate jewelry labels, thermal labels, silver paper labels, etc.;

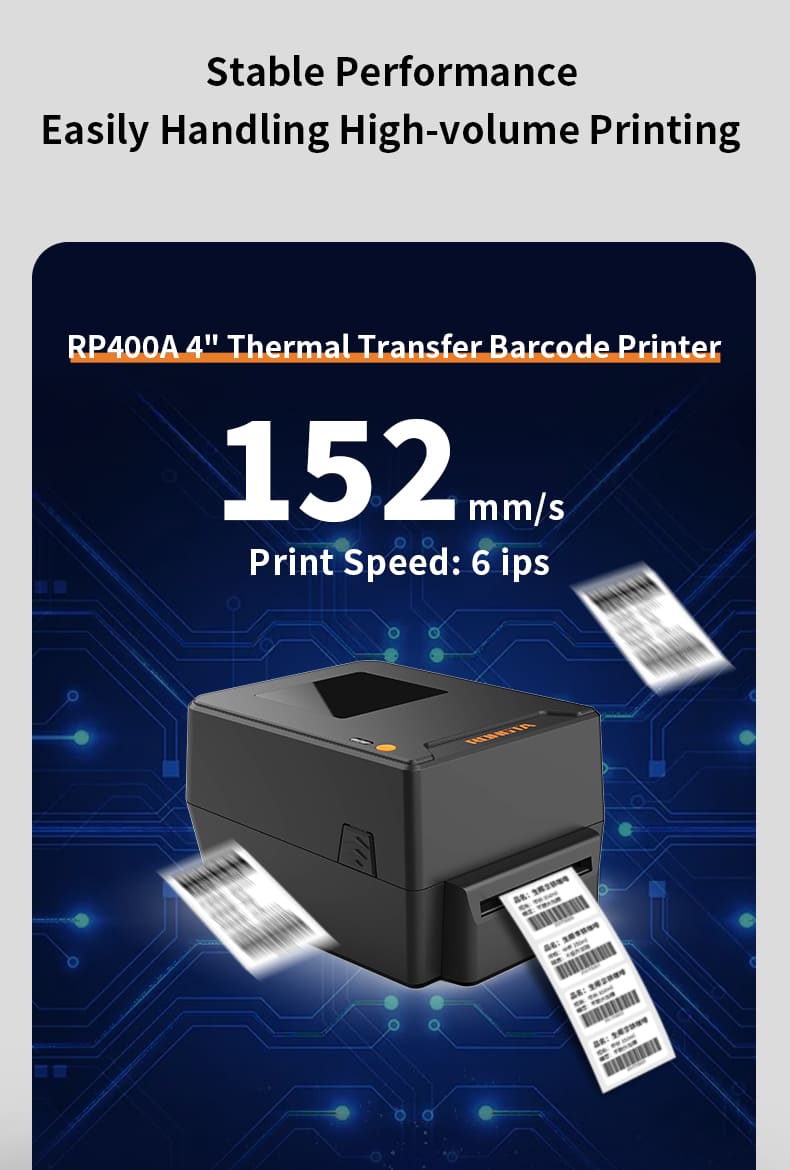

2. Performance Stable, can print continuously for a long time

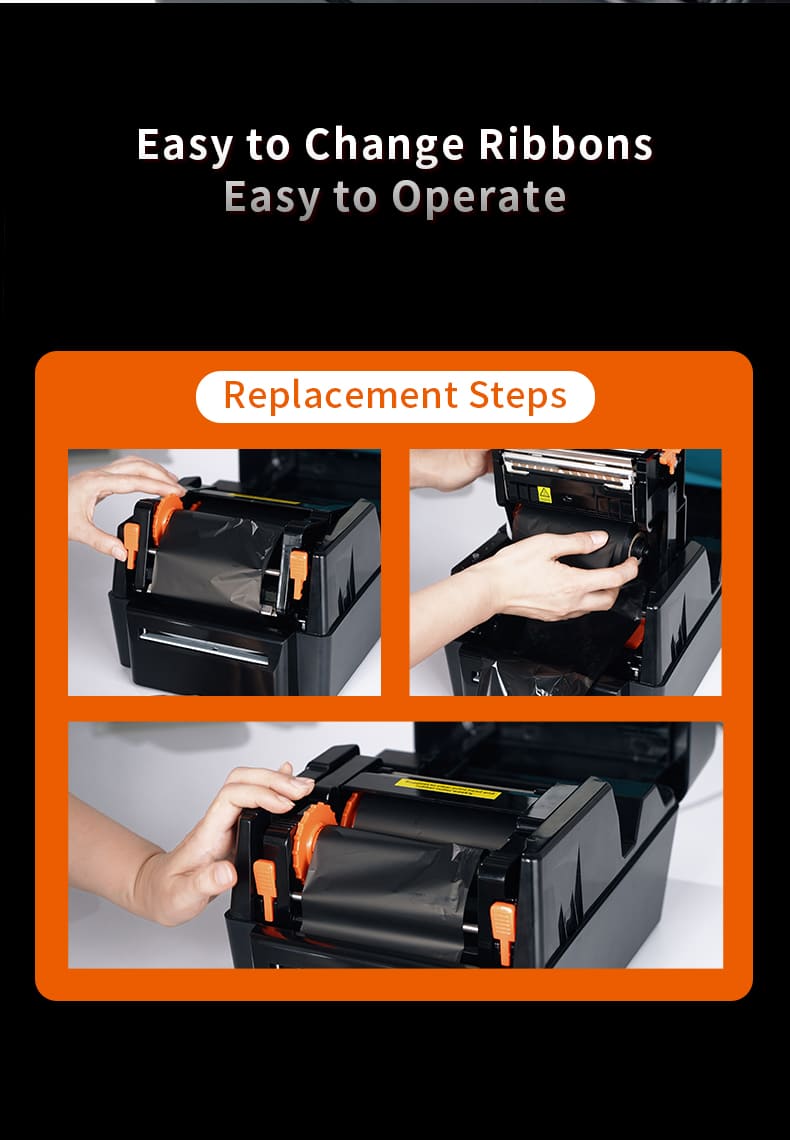

3. Modular structure, paper and ribbon replacement is more convenient
4. Transmissive paper detection, accurate and fast, can automatically calibrate paper and ribbon
5. Equipped with PC online editing software, the software has a wide range of applications The editing method is simple and easy to use;

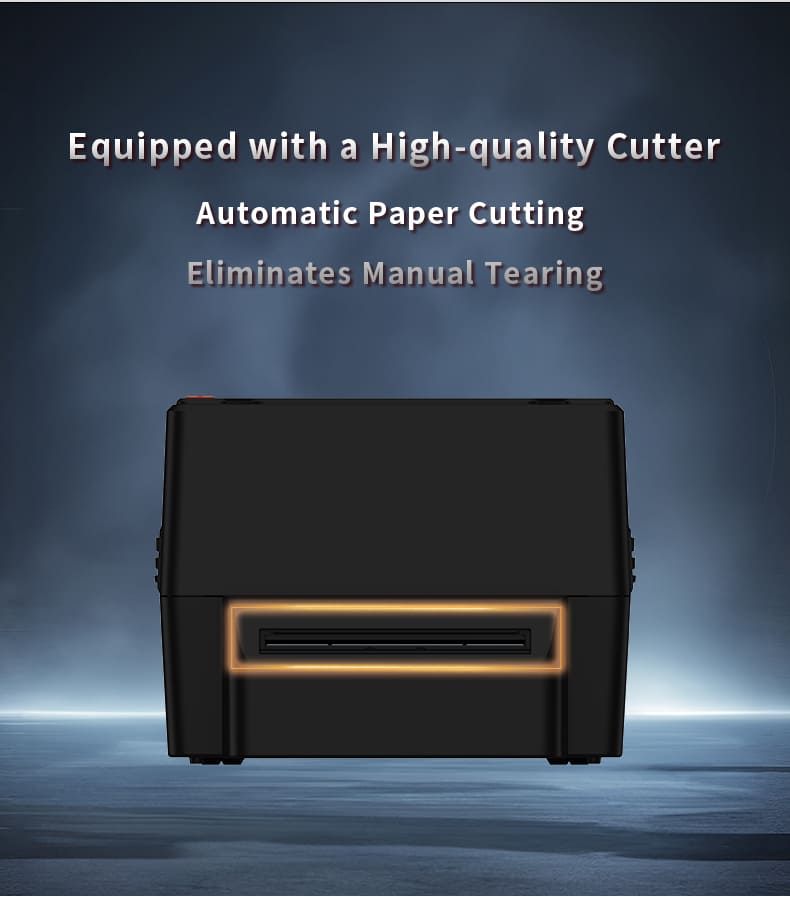

6.With automatic cutter, supports thermal/thermal transfer printing； adapt to different scene requirements.

Application:Commercial snacks, warehouse management, product identification, medical equipment, office assets, file management, communication weak current.

Technical Specifications

Product Specifications		Product Specifications
project		parameter
Print	Printing Method	Thermal transfer/thermal
	Resolution	203dpi
	Maximum Print Width	4.23''(108mm)

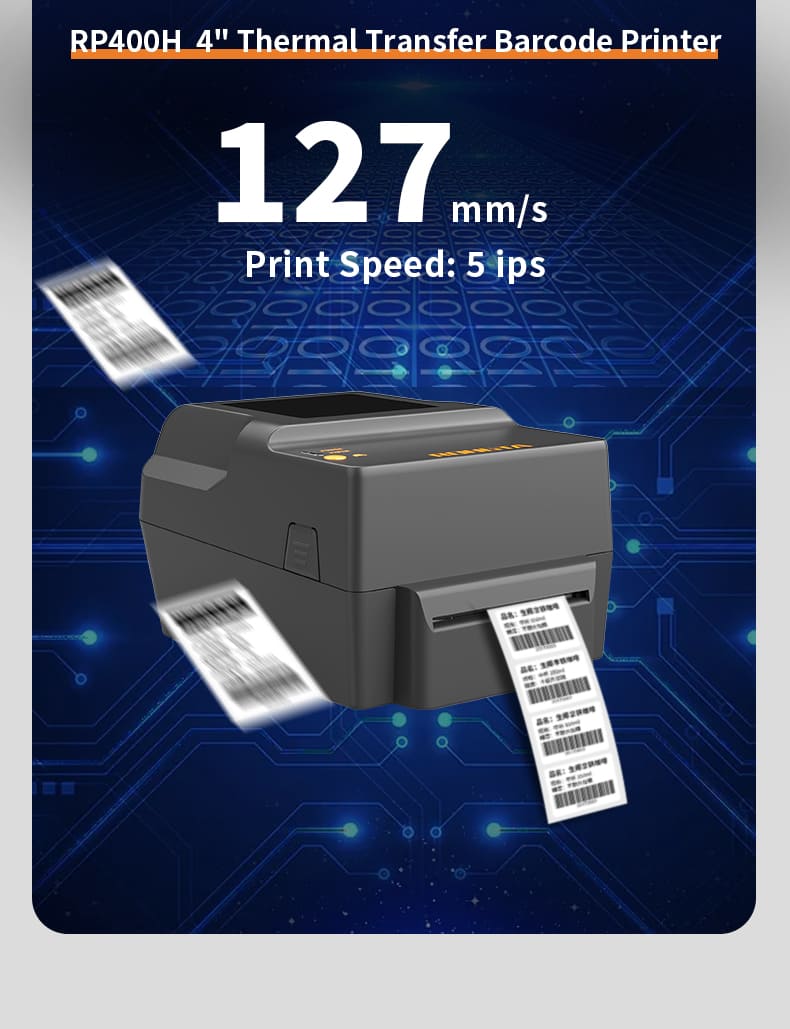

	Maximum Printing Speed	5 ips(127mm/s)
	Print Length	0.79''-110''(10-2794mm)
Sensor		Seam mark detection, black mark detection, paper shortage detection, ribbon end detection, cover opening detection, head temperature detection
Media	Type	Coated paper, matt silver paper, wash label, cardboard (hangtag), price tag paper, continuous paper, black label paper, folding paper (rear feed)
	Width (label + backing paper)	0.79''-4.72''(20-120mm)
	Thickness (label + backing paper)	0.0023''-0.0098''(0.06mm~0.25mm)

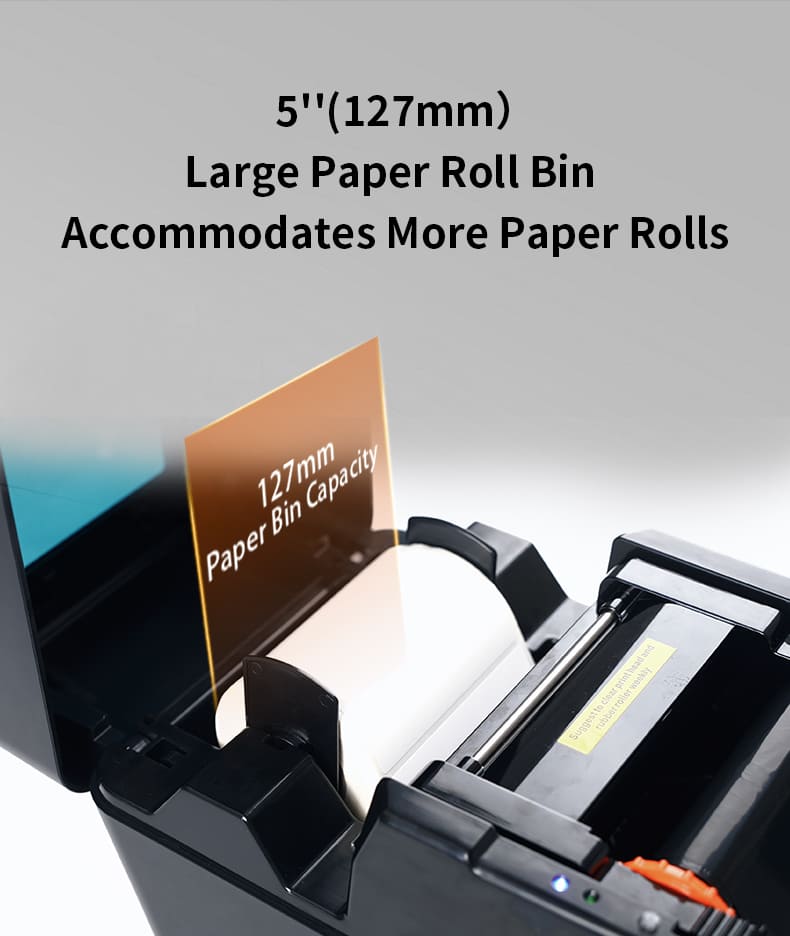

	Maximum Paper Roll Diameter	φ5''(φ127mm(MAX)）
	Reel Inner Diameter	φ1''(φ24mm(MIN))
Carbon Ribbon	Carbon Ribbon Outer Diameter	φ2.76''(φ70mm(MAX))
	Ribbon Length	11.81''(300m)
	Ribbon Width	1.57''-4.33''(40-110mm)
	Ribbon Core Inner Diameter	φ1''(φ25.4mm(MIN))
Paper Tearing Method		With cutter (full cut)
Processor		32-bit ARM MCU
Storage	RAM	16MB
Storage	FLASH	8MB
Function	Button	Rocker switch, Feed key, Paper bin cover opening key
	Indicator Lights	have
	Buzzer	Buzzer tone
	Display	/
	Other	/

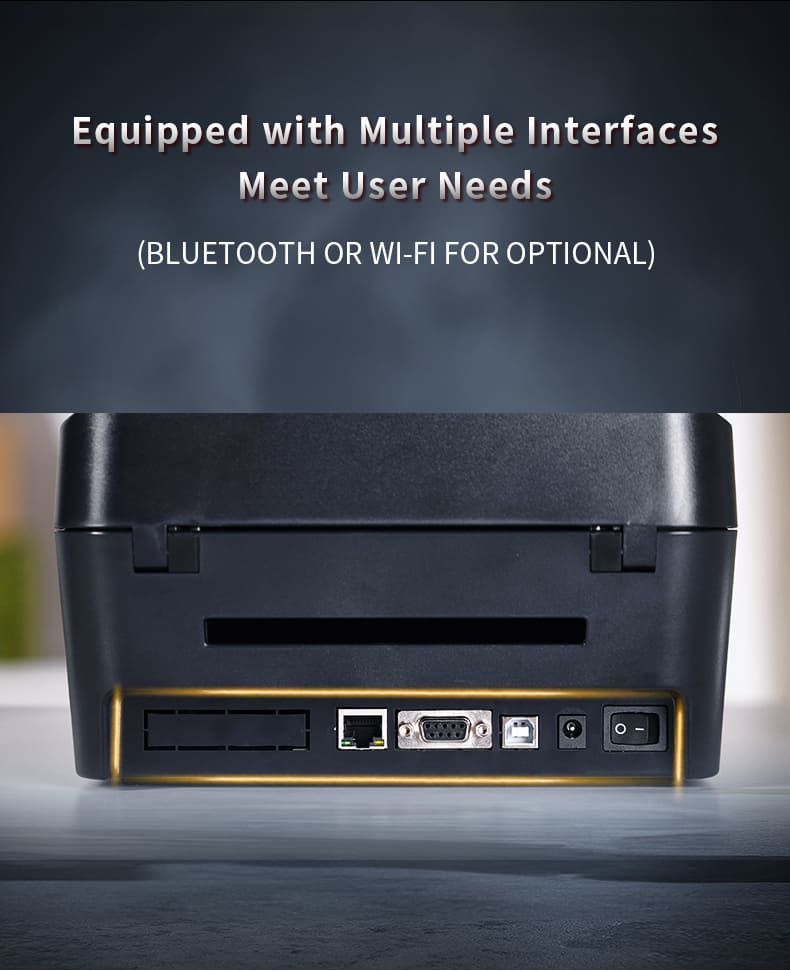

Communication Interface		USB+Ethernet port+Serial port optional: Bluetooth, WIFI
Programming Language		TSPL+ZPL
Built-in Fonts		ASCl Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
Built-in Fonts		GB18030: 24×24
Code Page	Extended Character Table	CP437,CP850,CP852,CP860,CP863,CP865,CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
Barcode	1D	Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST
Barcode	2D	QRCODE, PDF417, Maxicode, DataMatrix, Aztec, Codablock, Code 49, MicroPDF
Software	Drive	XP, Win7, Win8, Win10, Win11, Linux, MacOS
	SDK	Android, iOS, Windows
	Label Design	BarTender barcode label editing software (PC), Bluetooth version: RT ELabel APP (IOS & Android)
Power Adapter		Input: AC 100-240V, 50/60Hz
Power Adapter		Output: DC 24V/2.5A
Environmental Parameters	Work	Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
Environmental Parameters	Storage	Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
Physical Parameters	Dimensions	223x168.5x305.1mm
Physical Parameters	Weight	TBD
Accessories	Standard	■Power adapter■Power cord■USB cable■Quick installation guide■Carbon ribbon + paper core■ Cutter (full cut)
Accessories	Optional	■Serial port cable ■External paper holder A/B
