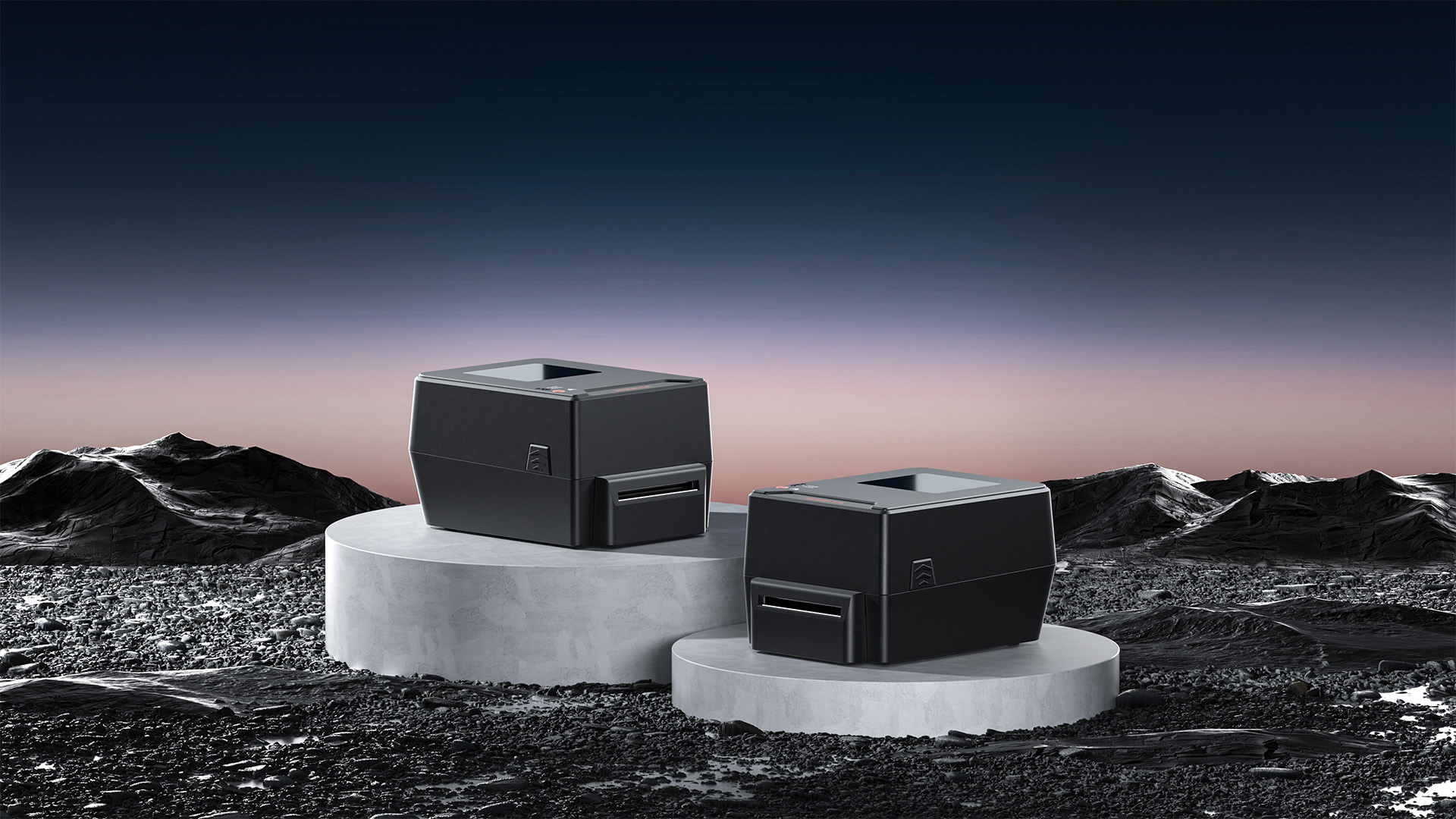

slide1
Get A Quote

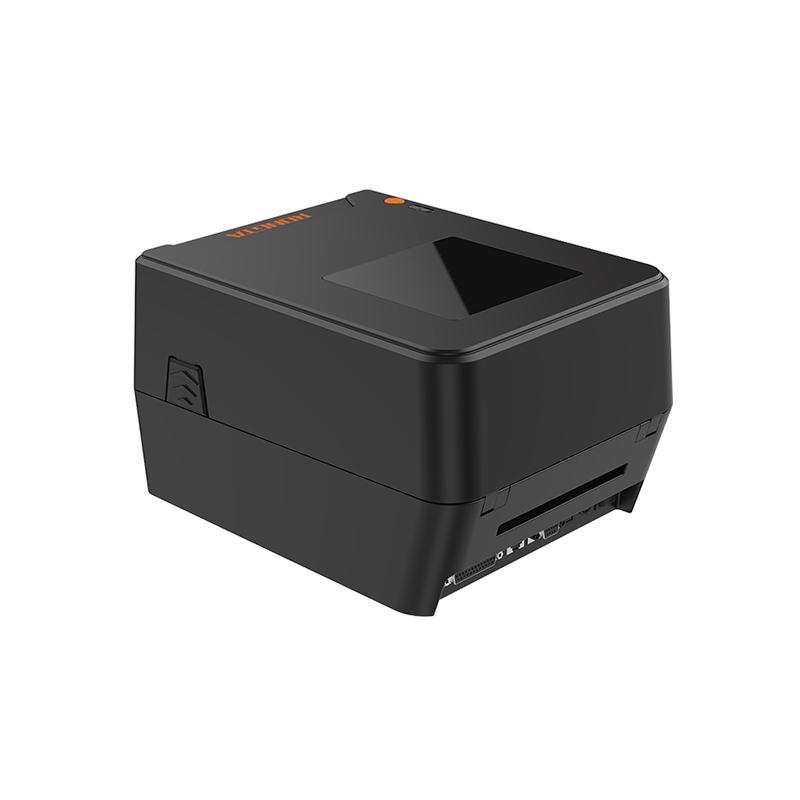

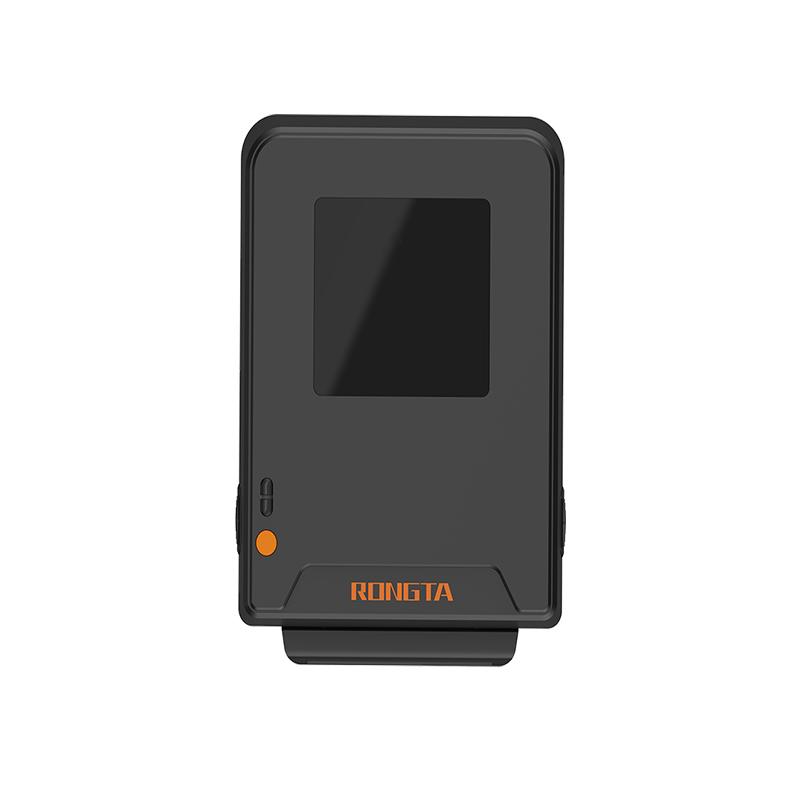

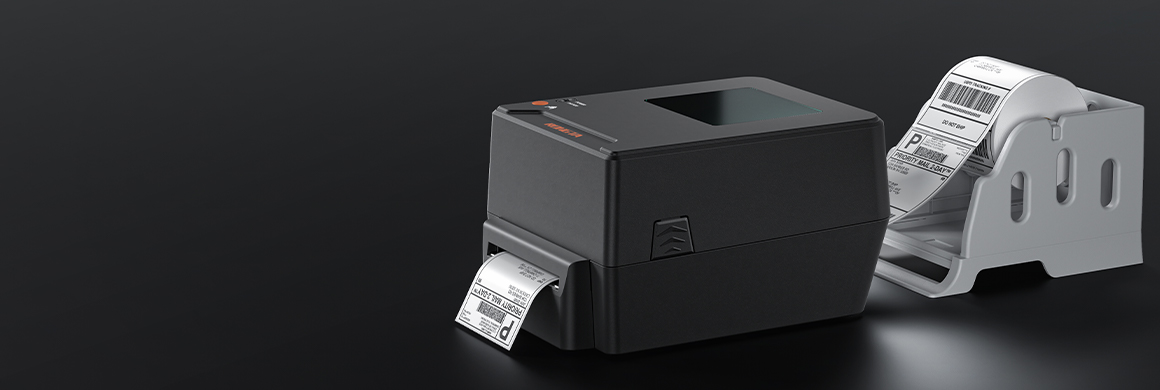

RP400A 4" Thermal Transfer Barcode Printer

High-quality cutter, worry-free high-volume printing

01

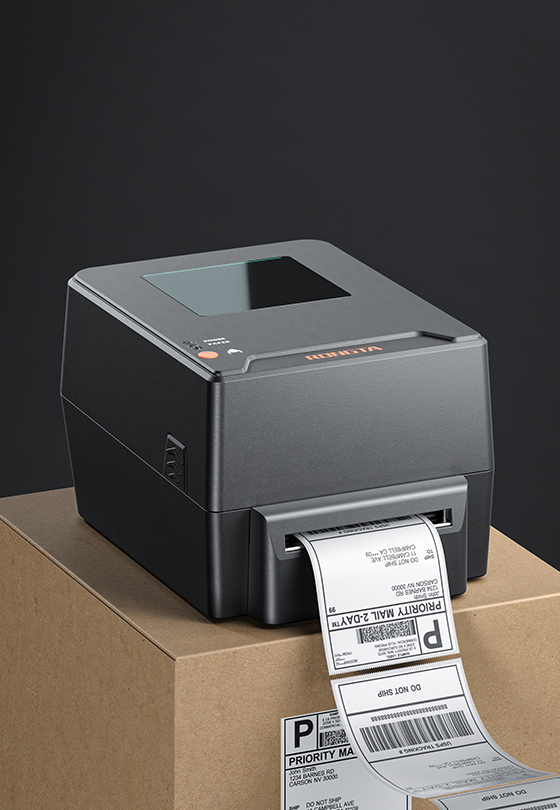

02-1

Print speed of 152mm/s

Capable of meeting high-volume printing demands

    Supports printing labels on various materials

    203dpi resolution ensures clear Making it easy to read and recognize, and meeting the needs of various application scenarios.

    04-1

    Clothing Industry

    04-2

    Product Identification

    04-3

    Asset Management

    04-4

    Logistics

    Multiple interfaces

    Meet the needs of diverse industries


    Supports Bartender software

    Includes PC editing software

    Technical Specifications

    Product Specifications Product Specifications
    project parameter

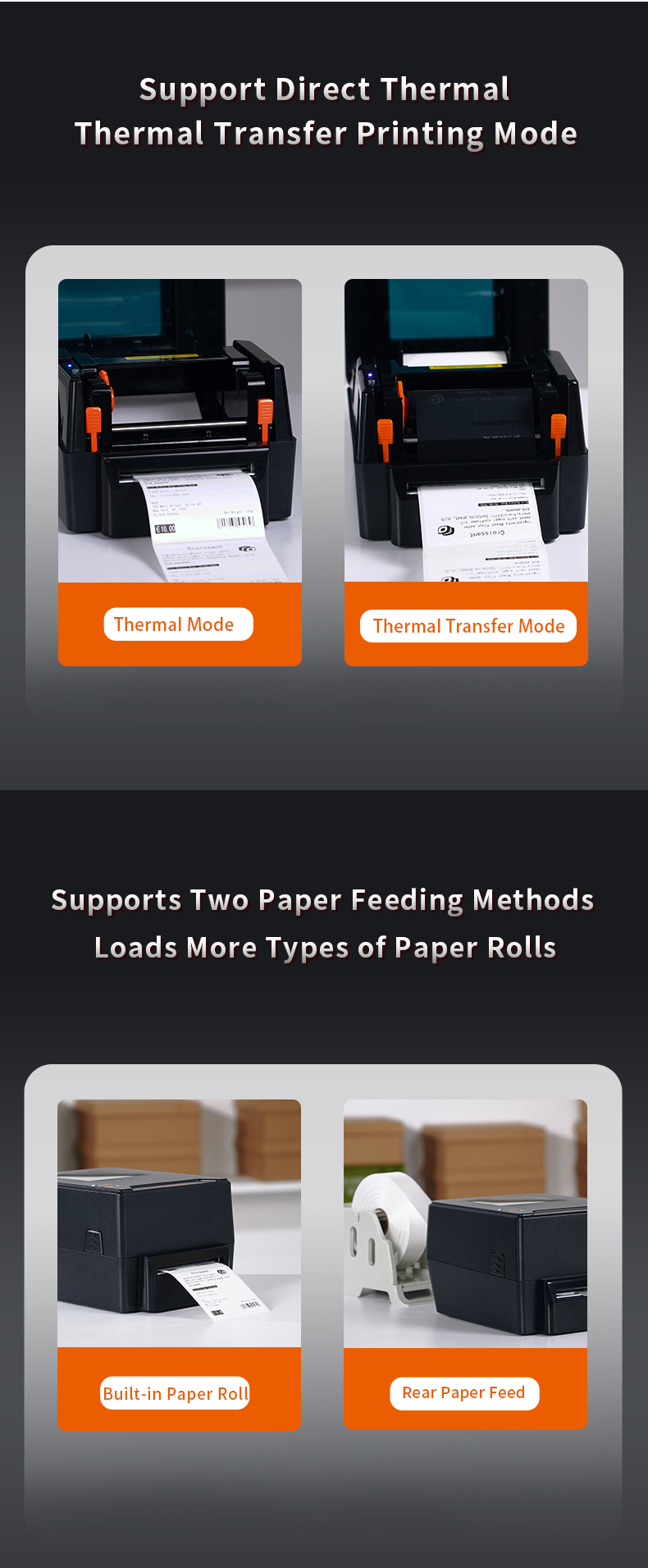

    Print Printing Method Thermal transfer/thermal
    Resolution 203dpi
    Maximum Print Width 4.09''(104mm)
    Maximum Printing Speed 6 ips(152mm/s)
    Print Length 0.79''-110''(10-2794mm)
    Sensor Seam mark detection, black mark detection, paper shortage detection, ribbon end detection, cover opening detection, head temperature detection
    Media Type Coated paper, matt silver paper, wash label, cardboard (hangtag), price tag paper, continuous paper, black label paper, folding paper (rear feed)
    Width (label + backing paper) 0.79''-4.72''(20-120mm)
    Thickness (label + backing paper) 0.0023''-0.0098''(0.06mm~0.25mm)

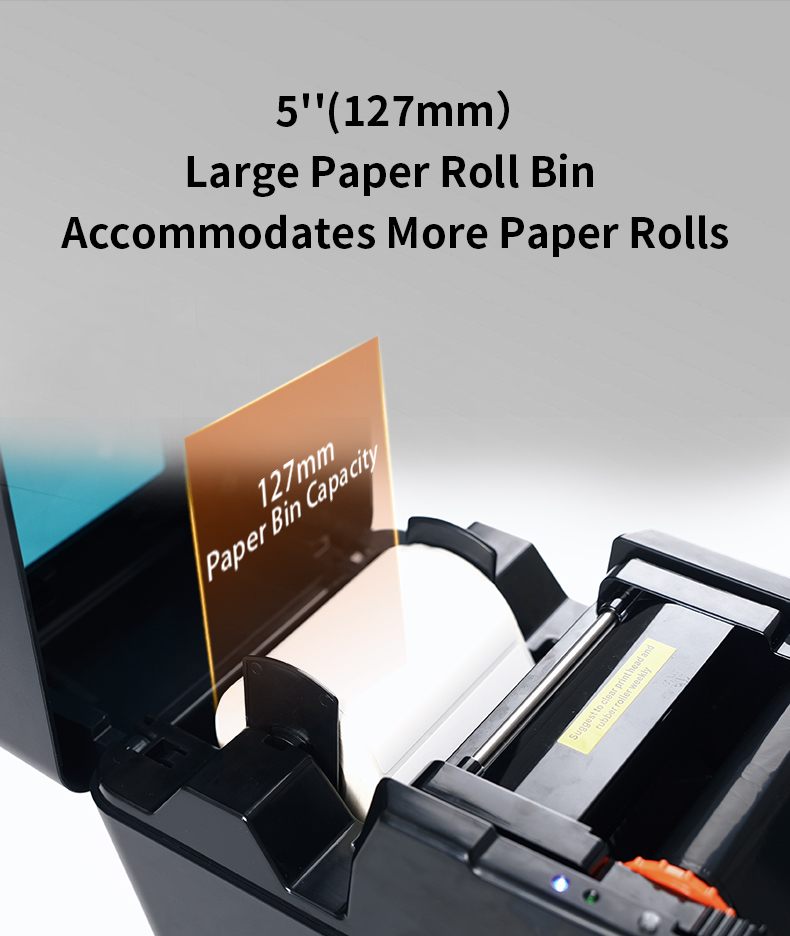

    Maximum Paper Roll Diameter φ5''(φ127mm(MAX)）
    Reel Inner Diameter φ1''(φ24mm(MIN))

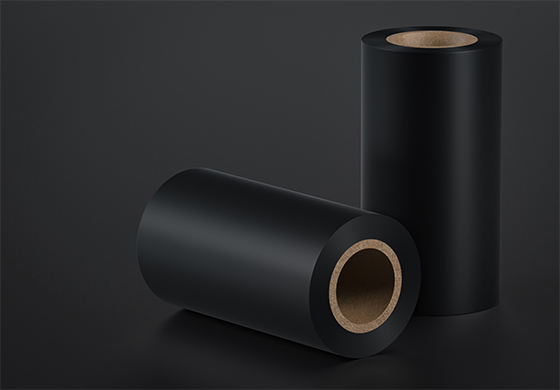

    Carbon Ribbon Carbon Ribbon Outer Diameter φ2.76''(φ70mm(MAX))
    Ribbon Length 11.81''(300m)
    Ribbon Width 1.57''-4.33''(40-110mm)
    Ribbon Core Inner Diameter φ1''(φ25.4mm(MIN))

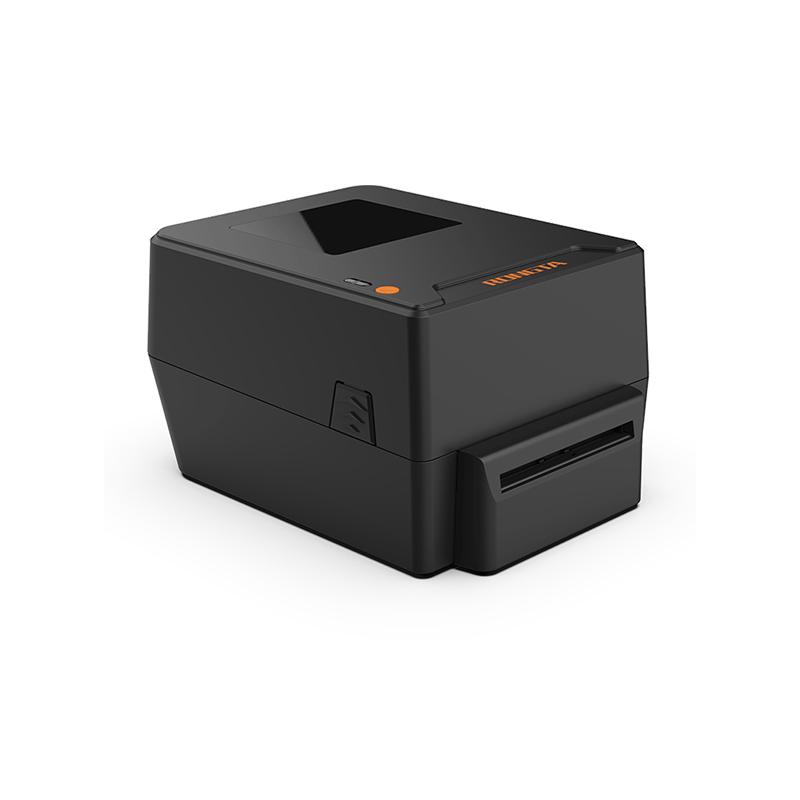

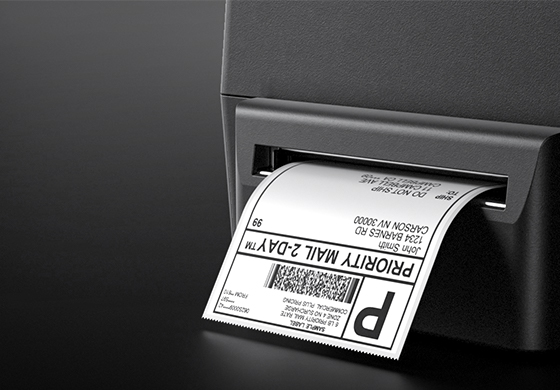

    Paper Tearing Method  With cutter (full cut)
    Processor 32-bit ARM MCU
    Storage RAM 16MB
    FLASH 8MB
    Function Button Rocker switch, Feed key, Paper bin cover opening key
    Indicator Lights have
    Buzzer Buzzer tone
    Display /
    Other /

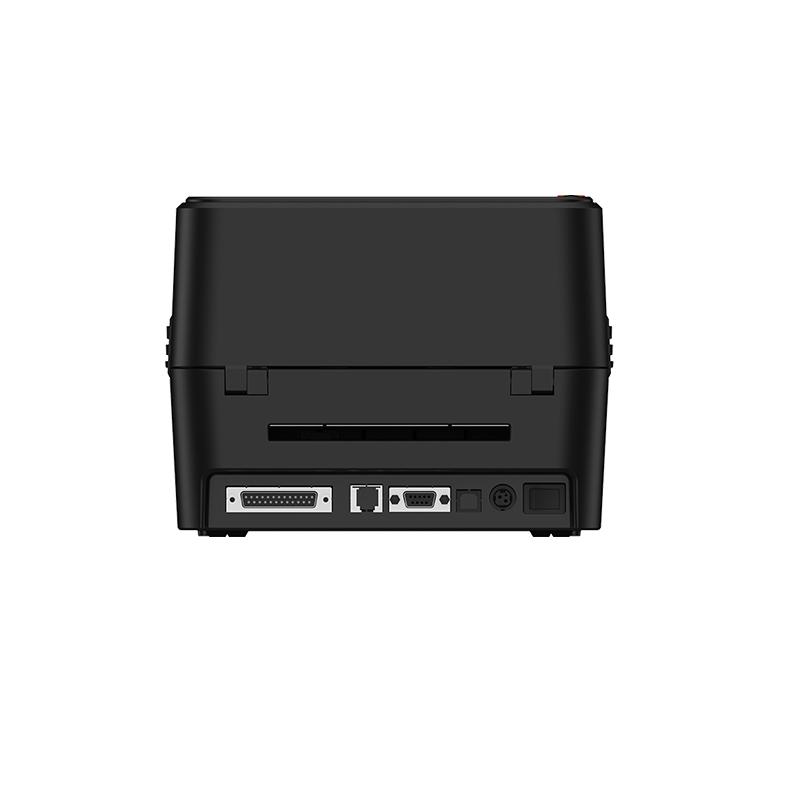

    Communication Interface USB+Ethernet port+Serial port optional: Bluetooth, WIFI
    Programming Language TSPL+ZPL
    Built-in Fonts ASCl Font: 10x12, 14x20, 16x24, 24x32, 36x48, 14x19, 21x27, 14x25, 12x24
    GB18030: 24×24
    Code Page Extended Character Table CP437,CP850,CP852,CP860,CP863,CP865,CP866, WPC1250, WPC1251, WPC1252, WPC1253, WPC1254
    Barcode 1D Code 39, 39C, I25, Code 93, ITF25, EAN128, Code 128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5 MSIC, ITF14, EAN14, CODE11, POST
    2D QRCODE, PDF417, Maxicode, DataMatrix, Aztec, Codablock, Code 49, MicroPDF
    Software Drive XP, Win7, Win8, Win10, Win11, Linux, MacOS
    SDK Android, iOS, Windows
    Label Design BarTender barcode label editing software (PC), Bluetooth version: RT ELabel APP (IOS & Android)
    Power Adapter Input: AC 100-240V, 50/60Hz
    Output: DC 24V/2.5A
    Environmental Parameters Work Temperature: 32-104℉(0-40℃); Humidity: 20-90% (non-condensing)
    Storage Temperature: 14-140℉(-10-60℃); Humidity: 5-95% (non-condensing)
    Physical Parameters Dimensions  223x168.5x305.1
    Weight TBD
    Accessories Standard ■Power adapter■Power cord■USB cable■Quick installation guide■Carbon ribbon + paper core■Cutter (full cut)
    Optional ■Serial port cable ■External paper holder A/B
