The Specification of High Speed Thermal Receipt Printer RP331

The Specification of High Speed Thermal Receipt Printer RP331

  • 2019/10/30
The Specification of High Speed Thermal Receipt Printer RP331
● Printing Method:Direct thermal printing
● Paper Width:79.5±0.5mm
● Effective Printing Width:72mm
● Printing Speed:250mm/s
● Print head performance
    Resolution:512 dots/line or 576 dots/line
    TPH: 150KM

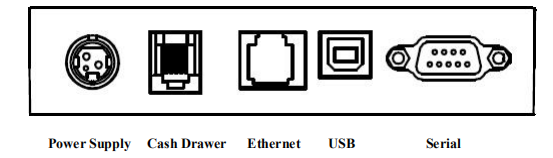

● Interface:
The Specification of High Speed Thermal Receipt Printer RP331
Cash Drawer Control:6 lines RJ-11 socket,output: DC24V/1A
● Character
ASCII code character set:12×24 dots,1.25(W)×3.00(H)mm
Chinese character:24×24 dots,3.00(W)×3.00(H)mm
International Code page: 10 types of international language--- PC437、Katakana、PC850、PC860、PC863、PC865、WPC1252、 PC866、PC852、PC858 and so on.
Printing Barcode:Supports 9 types of barcode printing, UPC-A、UPC-E、EAN(JAN)13、EAN(JAN)8、CODE39、CODABAR、ITF、CODE93、CODE128 and so on.
● Printing paper:
Paper Type:Thermal paper
Recommendatory thermal paper:
    Item #:AF50KS-E Manufacturer:Jujo Thermal Oy(Finland)
    Item #:TF-50KS-E Manufacturer:Nippon Paper Industries Co.,Ltd
Note
(1) Suggest to using the recommendatory thermal paper or the one which has the same quality, otherwise, it would affect the printing result; even though, will shorten the life of thermal head.
(2) Don’t use the paper roll which the end of paper is pasted at the axis core, it would cause the damage to the printer.
(3) If the thermal paper is polluted by the chemical or oil, it would fading or decreases the feeling of heat and influence the print result finally.
(4) It would result the fading of thermal paper if to use the hard material to chafe the surface.
(5) Please pay attention to the temperature, humidity and illumination of the storage for thermal paper. The paper would fade if the storage temperature is over 70 centigrade.
● (MCBFM)Mechanical reliability: 6×106 lines
● Emulation: ESC/POS
    Print Font:Support ANK. The font could be magnified, bolded or underlined and the user also could adjust the character spacing before printing.
    Print Dot/Map:Supports the printing of different dots and graphic
● Power Adapter
    Adapter Input:AC 110V/220V,50〜60Hz
    Adapter Output:DC 24V/2.5A
    Printer Input:DC 24V/2.5A
● Net Weight:About 1.4 kg (exclude the paper roll)
● Dimension:206(L) × 145(W) × 135(H) mm
● Environmental Adaption
    Operation Temperature:0〜40°C Operation Humidity:20〜85%

    Storage Temperature:-20〜70°C Storage Humidity:5〜95%
